Assembly and connecting
CX50x0 29Version: 1.9

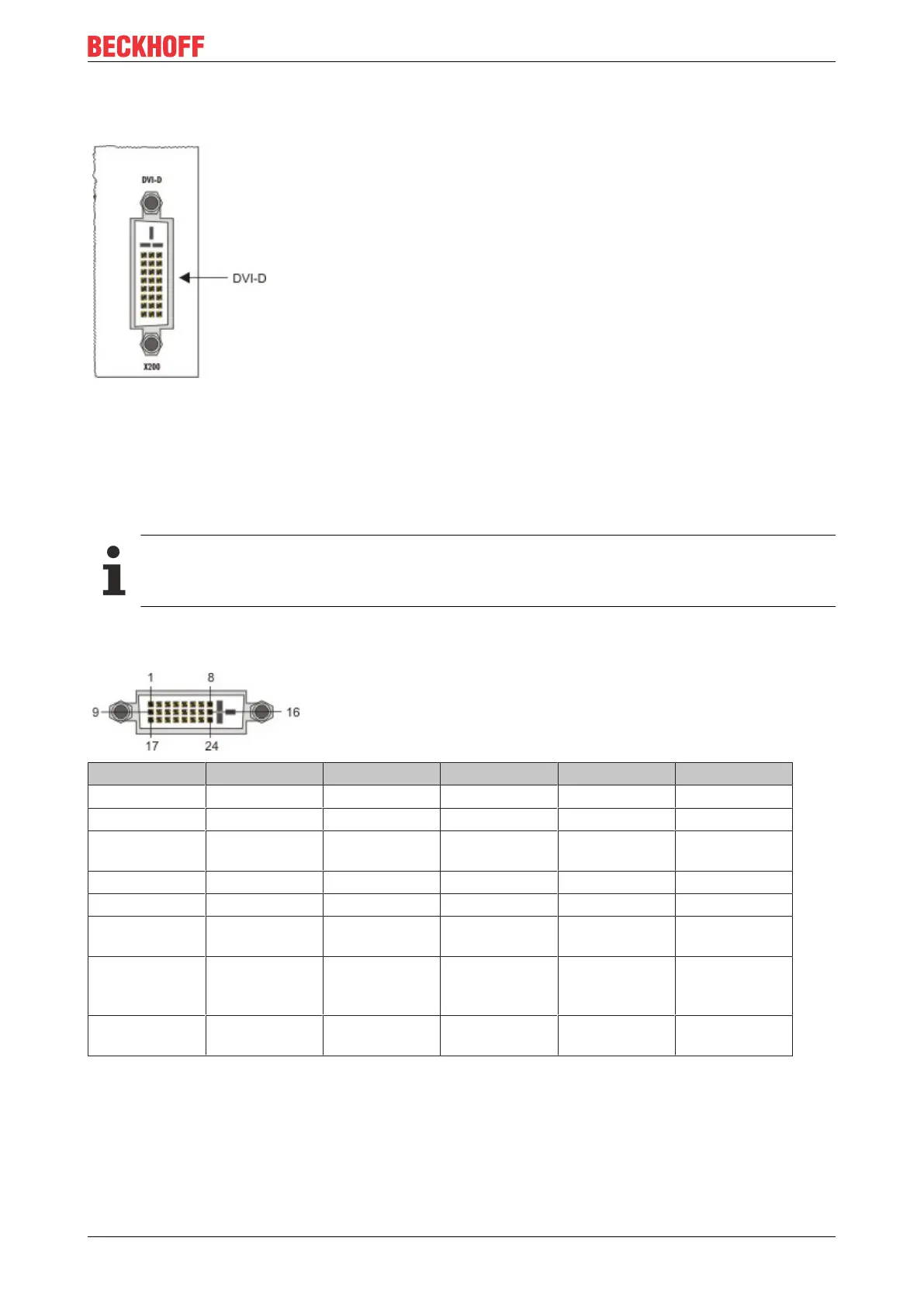

3.6 DVI-D connection
DVI-D connection (X200)
The DVI-D interface transfers digital display data and is suitable for connecting a digital display. The
maximum length of the DVI cable is determined by screen resolution and quality of the DVI cable. Without
the use of special electronics, a DVI cable length of 5m should not be exceeded. Beckhoff offers various
displays with integrated DVI extension electronics, enabling DVI cable length up to 50m.
DVI-D interface
The DVI interface does not use VGA signals, so that the connection of CRT VGA monitors to the
CX50x0 system using a DVI to VGA adapter is not possible.
DVI-D socket
Pin Assignment Pin Assignment Pin Assignment
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3 TMDS Data 2/4
Shield
11 TMDS Data 1/3
Shield
19 TMDS Data 0/5
Shield
4 not connected 12 not connected 20 not connected
5 not connected 13 not connected 21 not connected
6 DDC Clock 14 + 5V Power 22 TMDS Clock
Shield
7 DDC Data 15 Ground ( +5V,
Analog H/V
Sync)
23 TMDS Clock +
8 Analog Vertical
Sync
16 Hot Plug Detect 24 TMDA Clock -
