Beckhoff EL2904 User Manual

System description
EL290416 Version: 3.2.2
3.1.2 Bus Terminals
Mechanical data Bus Terminal
Material polycarbonate, polyamide (PA6.6).
Dimensions (W x H x D) 12mm x 100mm x 68mm or 24mm x 100mm x 68mm
Mounting on 35 mm mounting rail (EN60715) with locking
Attachable by double slot and key connection

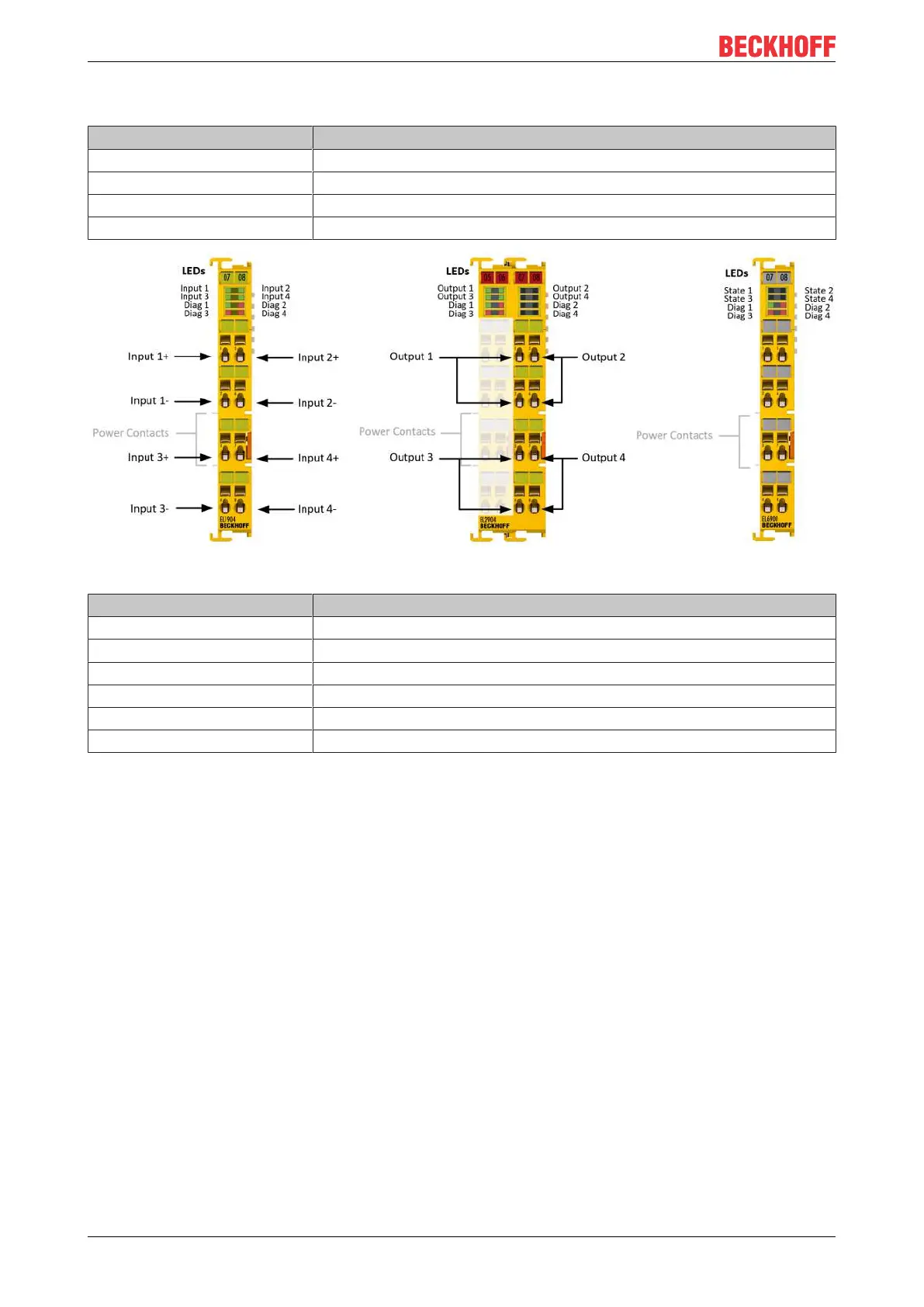

Fig.3: TwinSAFE Terminals (EtherCAT)
Connection technology Bus Terminal
Wiring spring-loaded system
Connection cross-section 0.08 mm² ... 2.5 mm², stranded wire, solid wire
Fieldbus connection E-bus
Power contacts up to 3 blade/spring contacts
Current load 10A
Rated voltage depends on Bus Terminal type
3.1.3 E-bus
The E-bus is the data path within a terminal strip. The E-bus is led through from the Bus Coupler through all
the terminals via six contacts on the terminals' side walls.
3.1.4 Power contacts
The operating voltage is passed on to following terminals via three power contacts. Terminal strip can be
split into galvanically isolated groups by means of potential feed terminals as required. The power feed
terminals play no part in the control of the terminals, and can be inserted at any locations within the terminal
strip.
3.2 TwinSAFE
3.2.1 The I/O construction kit is extended safely
With the TwinSAFE Terminals, Beckhoff offers the option of simply expanding the proven Bus Terminal
system, and to transfer the complete cabling for the safety circuit into the already existing fieldbus cable.
Safe signals can be mixed with standard signals without restriction. This saves design effort, installation and
material. Maintenance is simplified significantly through faster diagnosis and simple replacement of only a
few components.
