Operation and Maintenance Manual
Rev:
K12

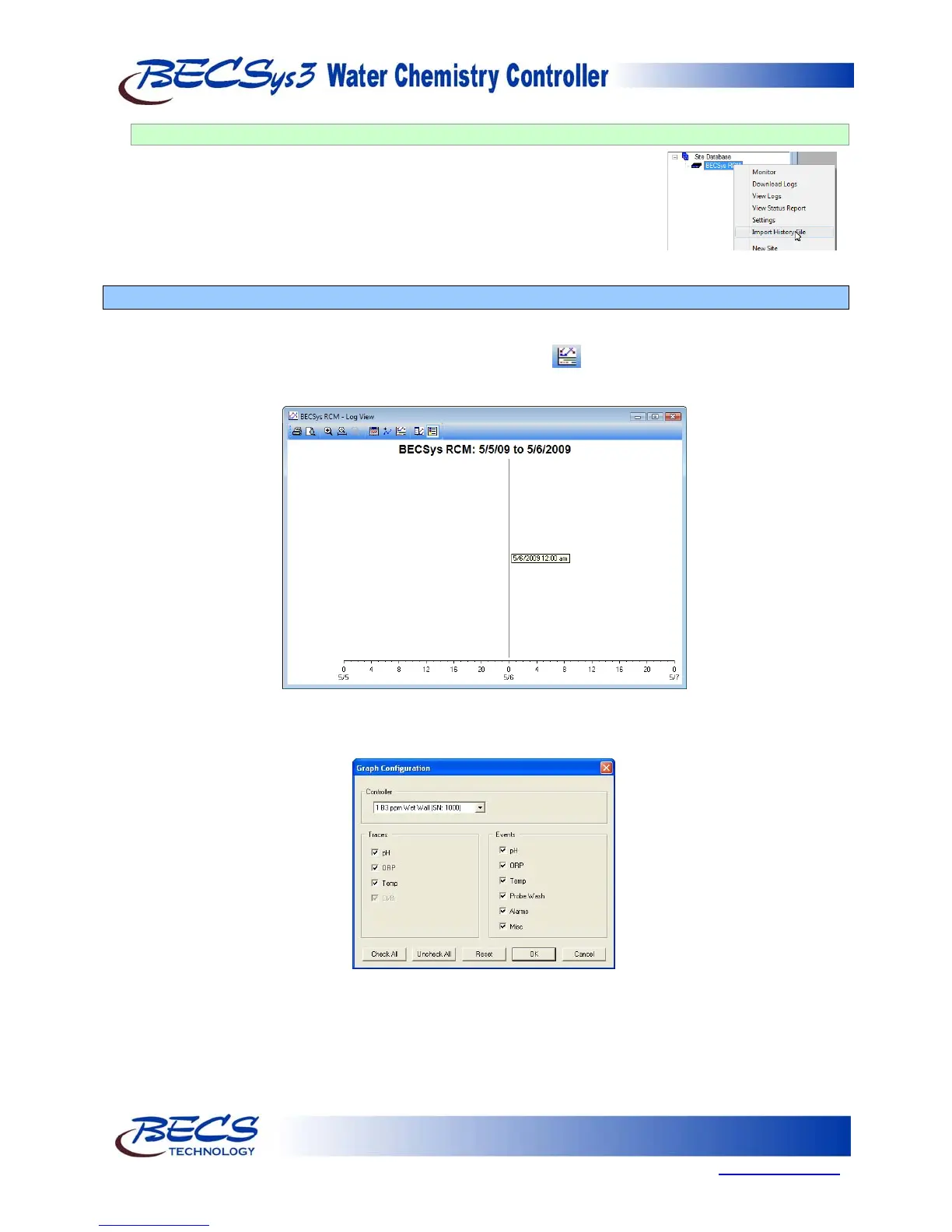

C – 2.1.1: Importing Data Logs
You may import the data logs from your Flash Drive into an existing
BECSysRCM3 site, or a new site (the data logs will not import into any other
sites). Select the site you wish to import the data logs into. Right click on the
desired site and select “Import History File”.
Once the data logs have been imported you may view them. If there were data
logs previously downloaded, the new information will be added to those.
C – 3: Viewing Data Logs
To view the data logs, select the BECSysRCM3 site from the list on the left and select “View Logs” from the buttons
at the top. If this is the first time you have viewed the logs for this site, there will be a blank graph displayed. In order
to view the site data, you will need to configure the graph. Select the Graph Configuration button from the top
of the window.
Under the Controller you can select which controller you want to graph including the BECSysRCM3 itself. Traces
allow you to select what to show on the graph. Events are displayed below the graph.
Once you have selected which Traces and Events to display for the selected Controller, click the “OK” button, the
graph will redraw adding the traces. The events will be displayed at the bottom of the screen.
See the BECSys for Windows Manual (installed with BECSys for Windows) for more information.
