Beechcraft Duchess 76 - Take-Off Climb Gradient, One Engine Inoperative

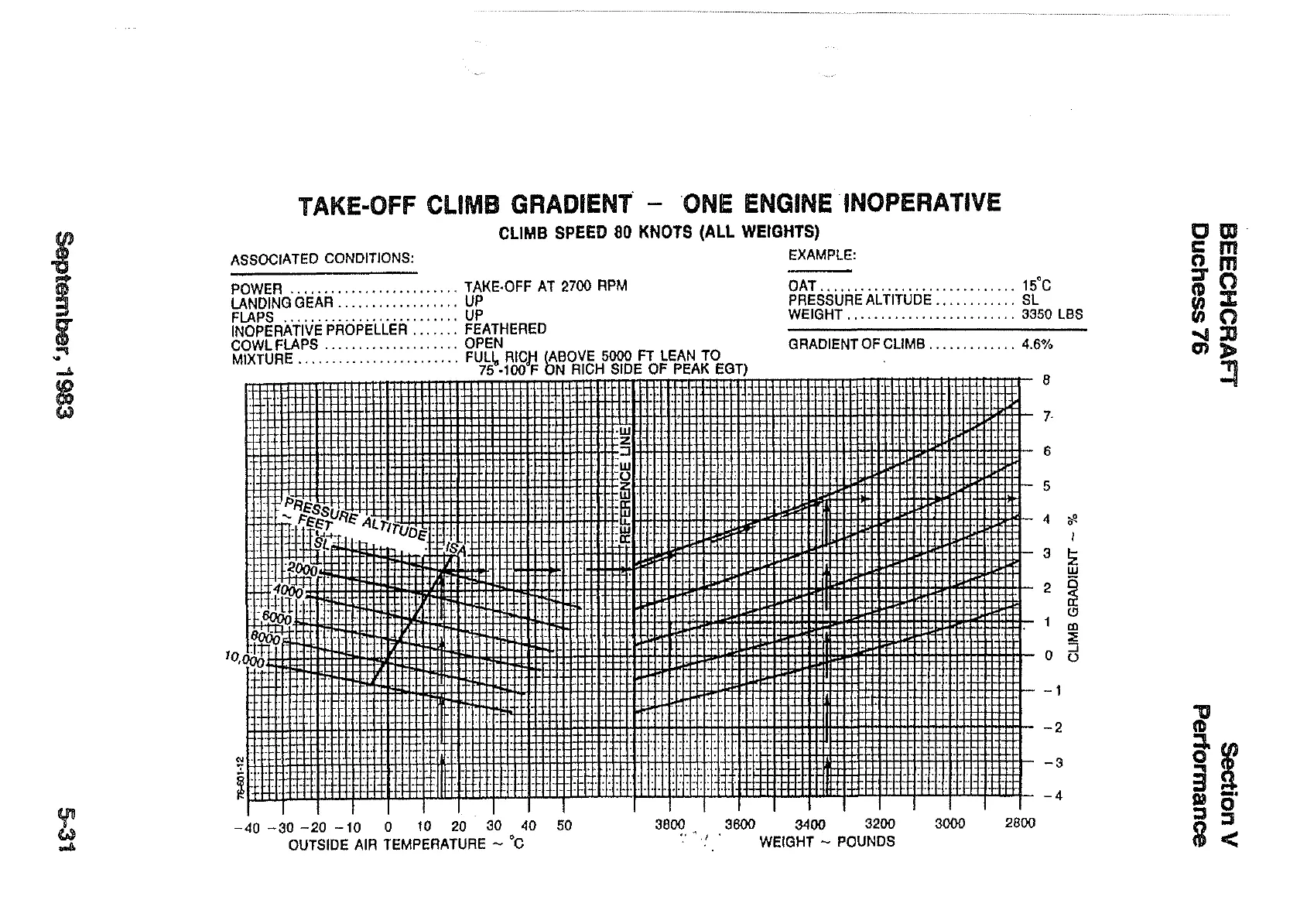

TAKE-OFF CLIMB GRADIENT -ONE ENGINE INOPERATIVE
CLIMB SPEED 80 KNOTS (ALL WEIGHTS)
ASSOCIATED CONDITIONS: EXAMPLE:
f
i
...
~
•
!
POWER TAKE·OFF AT 2700 RPM
LANDING GEAR UP
FLAPS UP
INOPERATIVE PROPELLER FEATHERED
COWL FLAPS OPEN
MIXTURE FUL~ RIC):! (ABOVE 5000 FT LEAN TO
75 ·100 F ON RICH SIDE OF PEAK EGT)
OAT 15'C
PRESSURE ALTITUDE SL
WEIGHT 3350 LBS
GRADIENT OF CLIMB 4.6%
