Section I
General
BEECHCRAFT
Duchess 76
®
76-604·2

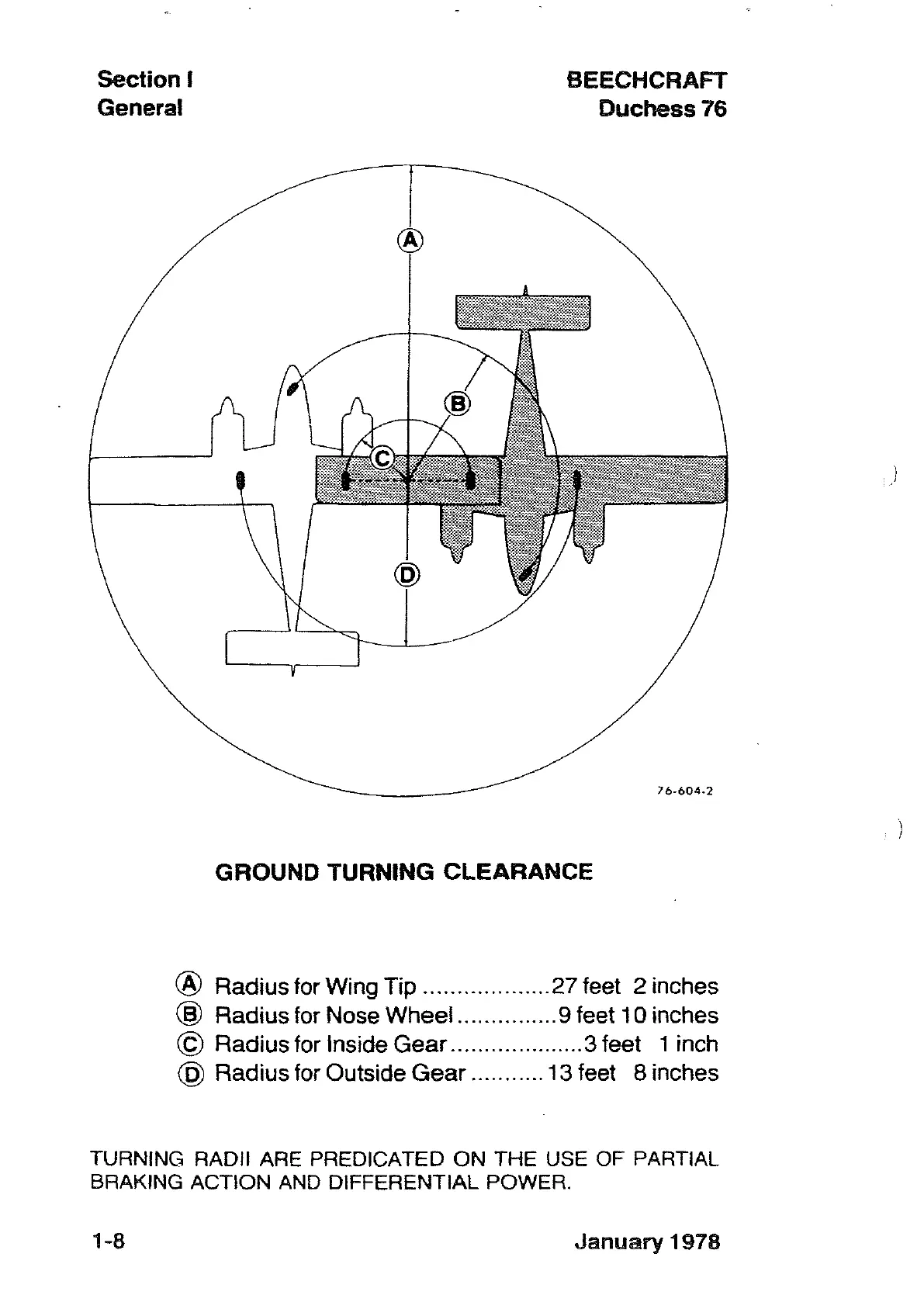

GROUND TURNING CLEARANCE
® Radius for Wing Tip 27 feet 2 inches
@ Radius for Nose Wheel 9 feet 10 inches
© Radius for Inside Gear 3 feet 1 inch
@ Radius for Outside Gear 13 feet 8 inches
TURNING RADII ARE PREDICATED ON THE USE OF PARTIAL
BRAKING
ACTION AND DIFFERENTIAL POWER.
)
1-8
January 1978
