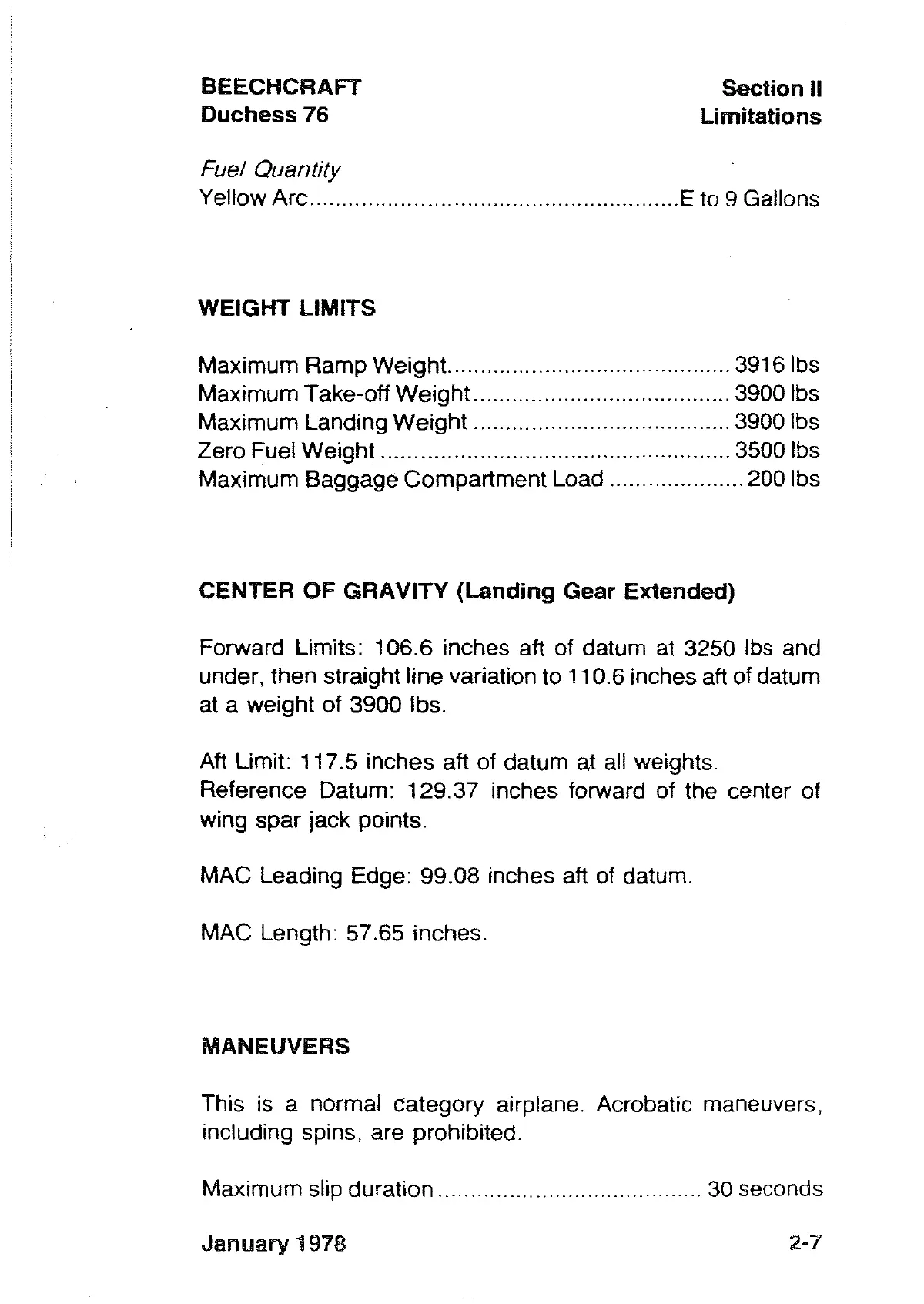

BEECHCRAFT
Duchess
76
Section II
limitations
Fuel Quantity E to 9 Gallons
Yellow Arc .
WEIGHT LIMITS
Maximum Ramp Weight.. 39161bs
Maximum Take-off Weight. 3900 Ibs
Maximum
landing
Weight 3900 Ibs
Zero Fuel Weight 3500 Ibs
Maximum Baggage Compartment Load 200 lbs
CENTER
OF
GRAVITY
(landing
Gear Extended)
Forward Limits: 106.6 inches aft of datum at 3250 lbs and
under, then straight line variation to 110.6 inches aft of datum
at a weight of 3900 Ibs.
Aft Limit: 117.5 inches aft of datum at
all
weights.
Reference Datum: 129.37 inches forward of the center of
wing spar jack points.
MAC Leading Edge: 99.08 inches aft of datum.
MAC Length: 57.65 inches.
MANEUVERS
This
is
a normal category airplane. Acrobatic maneuvers,
including spins, are prohibited.
Maximum slip duration
30
seconds
January
1978
2-7
