BEECHCRAFT
Duchess 76
Section VI
Wt & Bal/Equip list
which are not part of the basic empty weight are subtracted,
i.e. usable fuel. Engine oil and unusable fuel are added if not
already
in the airplane.
10. Weighing should be made in an enclosed area which is
free from air currents. The scales used should be properly
calibrated
and certified.

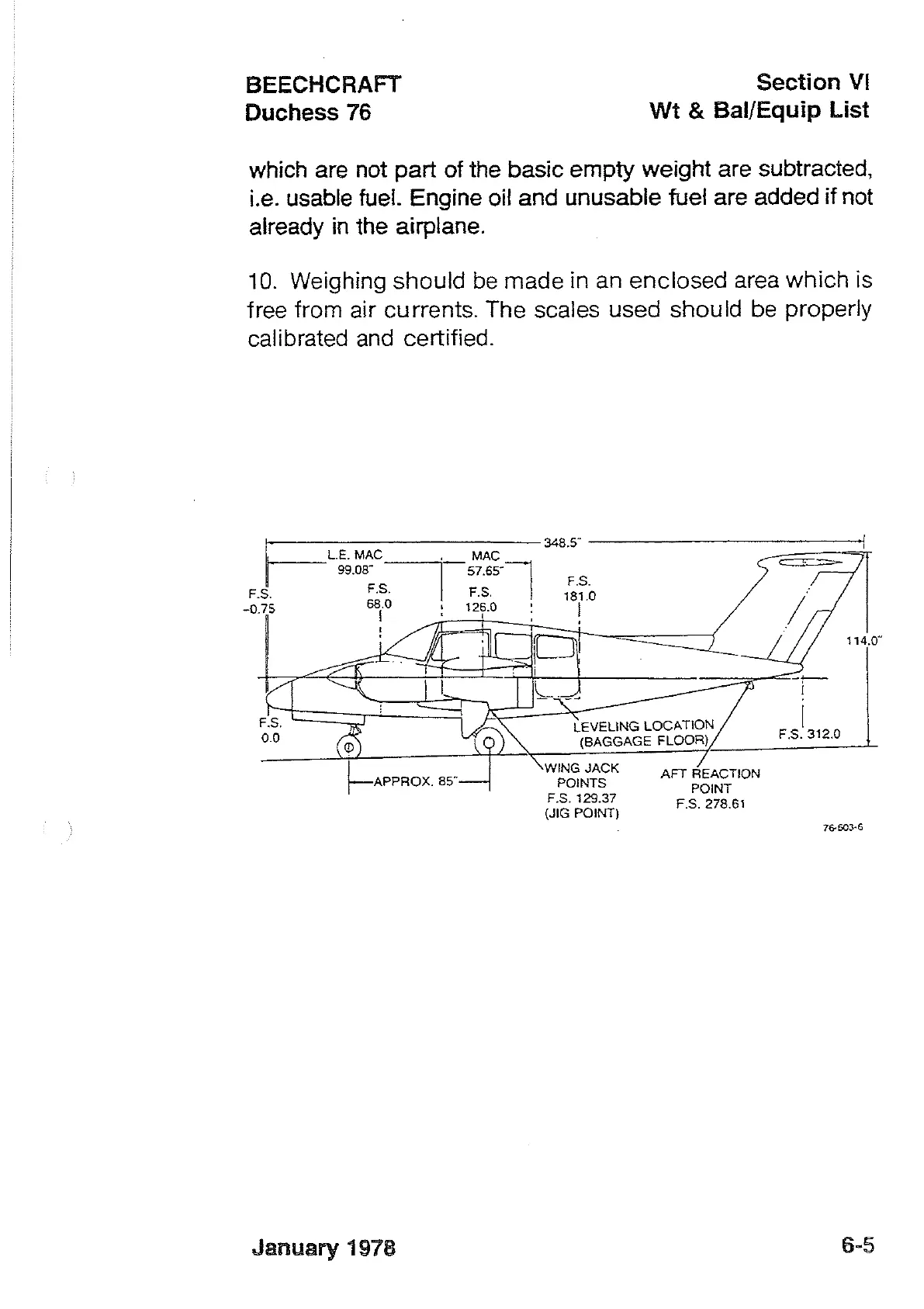

114.0·'
76-603-6
[
F.S.312.0
AFT REACTION
POINT
F.S.278.61
WING JACK
POINTS
F.S.129.37
(JIG POINT)
LEVELING LOCATION
(BAGGAGE FLOOR)
F.S.
181.0
.-,.. I
f--APPROX. 85-
ID
F.S.
0.0
I
~!- ---:L-:E::-:-:M::-AC;::---'--;MA~C:--I 348S C =-==- 7f
·99.08- r 57.65-
F.S. I F.S.
F.S. 68.0 I 1?F; l"l '
-0.75 I j:::':;:;~;:==i;r:::::;d--==::::==:;~
nril11
January 1978
6~5
