Behringer SHARK DSP110 User Manual

21
SHARK DSP110
Unbalanced use of
mono 1/4" jack plugs
Ring
Balanced use of
stereo 1/4" jack plugs
Balanced use with XLR connectors
1 2
3
2 1
3
Input Output
Tip =
Signal
Tip =
hot (+ve)
Sleeve =
Ground / Shield
Sleeve =
Ground / Shield
Tip
Tip
Sleeve
Sleeve
Strain relief clamp
Strain relief clamp
Ring =
cold (-ve)
For connection of balanced and
unbalanced plugs, ring and sleeve have
to be bridged at the stereo plug.
1 = Ground / Shield
2 = hot (+ve)
3 = cold (-ve)
For unbalanced use pin 1 and pin 3 have to be bridged

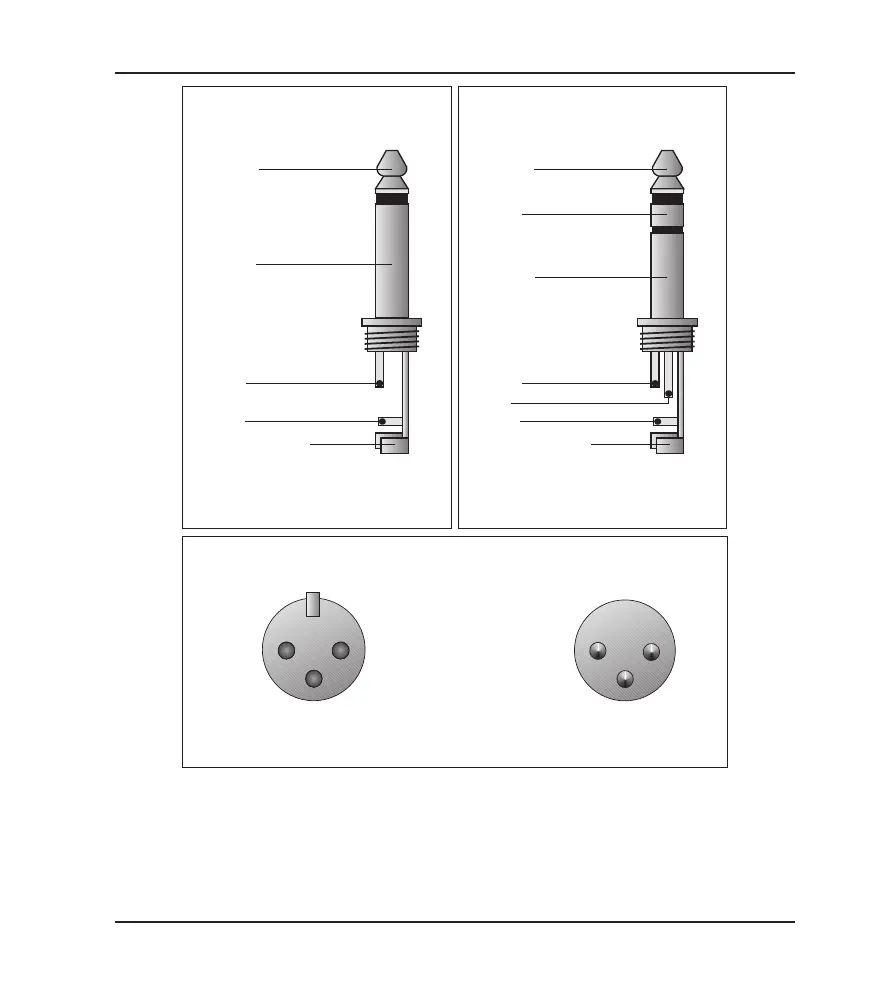

Fig. 3.2: Different plug types
+ Please ensure that only qualified persons install and operate the SHARK.
During installation and operation the user must have sufficient electrical
contact to earth. Electrostatic charges might affect the operation of the
SHARK!
3. INSTALLATION
