Behringer X32 Core User Manual

8 9X32 CORE DIGITAL RACK MIXER Quick Start Guide
X32 CORE DIGITAL RACK MIXER Hook-up
(EN) Step 1: Hook-Up
(ES) Paso 1: Conexión
(FR) Etape 1 : Connexions
(DE) Schritt 1: Verkabelung
(PT) Passo 1: Conexões
Basic Connections
Conexiones Básicas
Connexions Basiques
Grundlegende Anschlüsse
Conexões Básicas

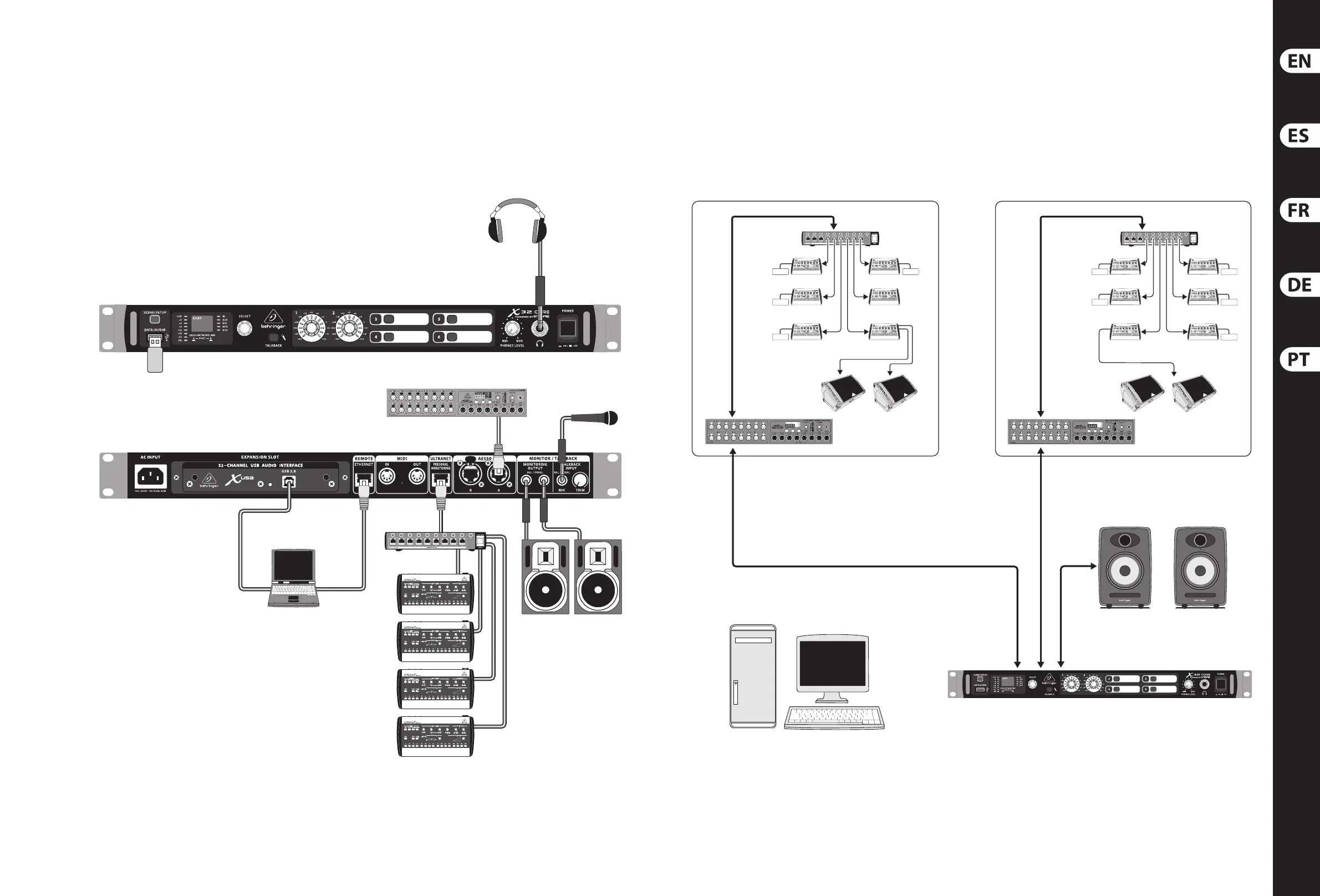

Multiple Stage Setup with X32 CORE, S16 Snake and P16 Personal Monitor System
Montaje con Varios Escenarios con X32 CORE, Manguera S16 y Sistema de Monitorización Personal P16
Configuration pour Plusieurs Scènes avec X32 CORE, Boîtier Multipaire S16 Snake et Système de Retour Personnel P16
Mehrfaches Bühnen- Setup mit X32 CORE, S16 Multicore und P16 Personal Monitor System
Ajuste de Palco Múltiplo Com X32 CORE, S16 Snake e Sistema de Monitoramento Pessoal P16
TRS
TRS
P16D
B3031A Studio monitors
S16 Digital Snake
USB drive for rmware updates, loading
Scenes and playing/recording WAV les
P16M
TRS
TRS
HPX6000
P16-D Distributor
Keyboards Percussion
Percussionist
2nd Guitarist
Background Vocal 1
Spare
Background Vocal 2
Background Vocal 3
IEM IEM
IEM IEM
IEM
P16-D Distributor
Drummer
F1320D Active oor monitors
Vocal 1
POWERPLAY P16-M Digital Personal Mixers
IEM
Bass Player
Guitarist
Voc 1 Floor wedges
Vocal 1
Keyboardist
Phones
IEM
IEM
Control room with PC application to run both stage setups from one
location through the X32 CORE
K8 Active Studio Monitors
AES50
Supermac
AES50
Supermac
Analog balanced TRS
P16
Ultranet
P16
Ultranet
Cabling for all AES50 connections between X32 and S16 stageboxes:
• Shielded CAT-5e cable, Ethercon terminated cable ends (recommended)
• Maximum cable length 100 meters (330 feet)

Behringer X32 Core Specifications

Power

input voltage	100-240 V (50/60 Hz)
power consumption	120 W
phantom power	48 V

Audio Specifications

total harmonic distortion + noise	< 0.006% A-weighted
equivalent input noise level	-128 dBu
dynamic range (analog in to analog out)	106 dB

Input/Output Characteristics

input impedance XLR	5 kΩ / 10 kΩ unbalanced / balanced
output impedance XLR	75 Ω / 75 Ω unbalanced / balanced
non clip maximum input level XLR	+23 dBu

Weight and Dimensions

dimensions	19 x 12 x 17.24 inches, 483 x 307 x 438 mm
weight	7.9 lbs / 3.6 kg
