Behringer X32 DIGITAL MIXER - Display and Monitoring

14 X32 DIGITAL MIXER Preliminary User Manual

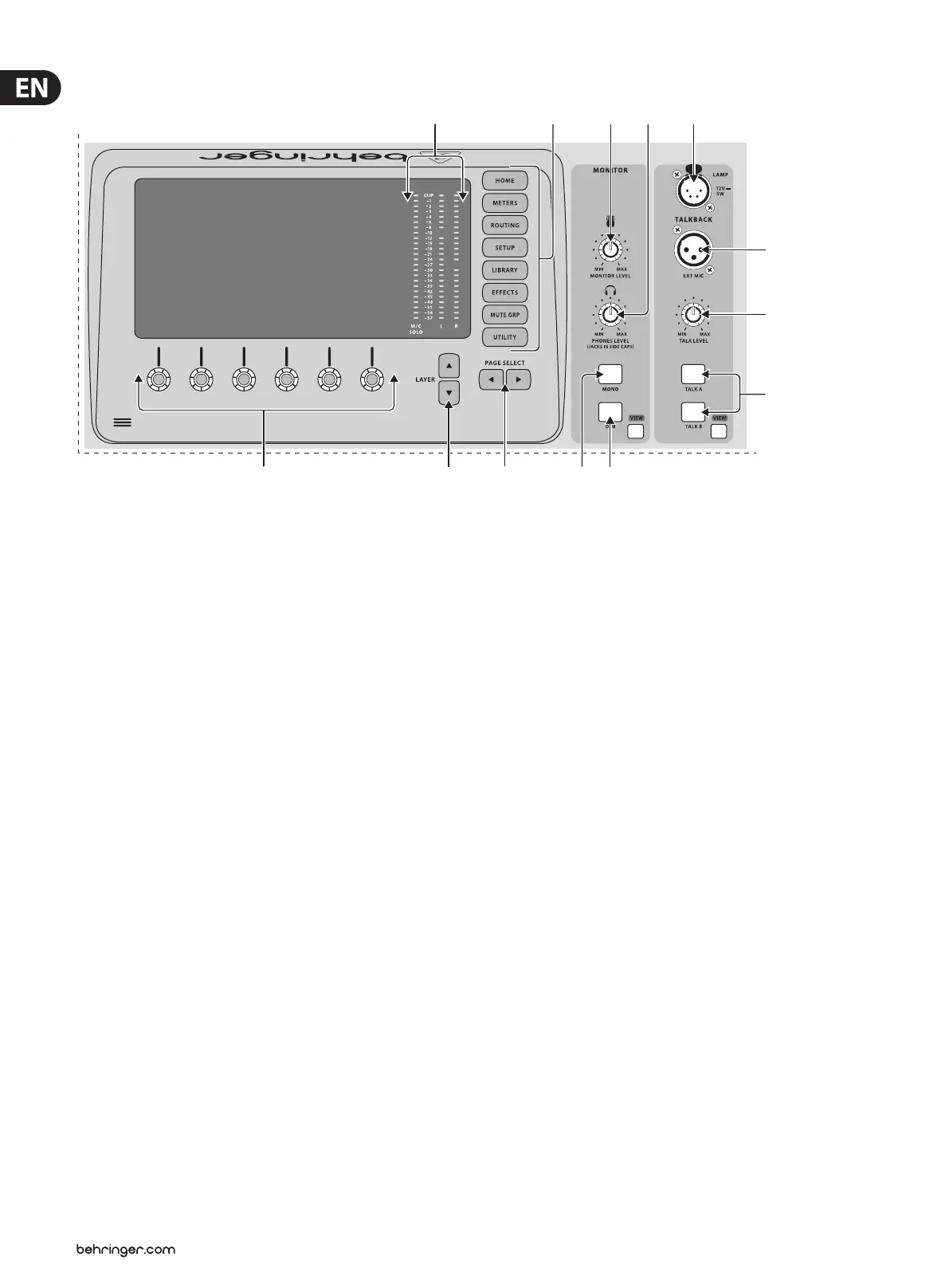

2.3 Display and Monitoring
VIEWVIEW
(16) (23)
(20)
(26)
(25)
(17) (22)
(27)
(21)(19)(18)
(15)
(24)
(15) PUSH ENCODERS – These 6 controls adjust the parameters presented at
the bottom of the Main Display. The editable function will show a circular
icon in the display when continuous control is available. The function will
show a broad rectangular icon to indicate that a switch or toggle can be
accessed by pushing the encoder.
(16) LAYER BUTTONS – Some screens in the Main Display have more than
6editable parameters which can be accessed by pressing the Layer Up or
Down buttons.
(17) PAGE SELECT BUTTONS – Use these to scroll through the available screens
or to conrm/decline certain actions.
(18) MAIN/SOLO METERS – The main stereo output level is displayed here
along with the solo level of all channels whose Solo button is active.
(19) CATEGORY SELECT BUTTONS – Press one of these buttons to jump directly
to the subject you wish to edit or congure.
(20) MONITOR LEVEL – Adjust the level of the Monitor outputs with this knob.
(21) PHONES LEVEL – Adjust the volume of the headphone outputs,
locatedinside the left and right side caps.
(22) MONITOR MONO – Press this button to monitor the audio in mono.
(23) DIM – Press this button to reduce the monitor volume. Press the
View button to adjust the amount of attenuation along with all other
monitoring-related functions.
(24) LAMP INPUT – Connect a standard 12 V, 5 Watt gooseneck lamp here.
(25) TALKBACK INPUT – Connect a talkback mic via standard XLR cable to
thisinput.
(26) TALK LEVEL – Adjust the level of the talkback mic with this knob.
(27) TALK A/B – Select the destination for the talkback mic signal with these
buttons. Press the View button to edit the talkback routing for A and B.
