Behringer XENYX 1002FX User Manual

ENGLISH
XENYX 1002FX/1202FX User Manual
14

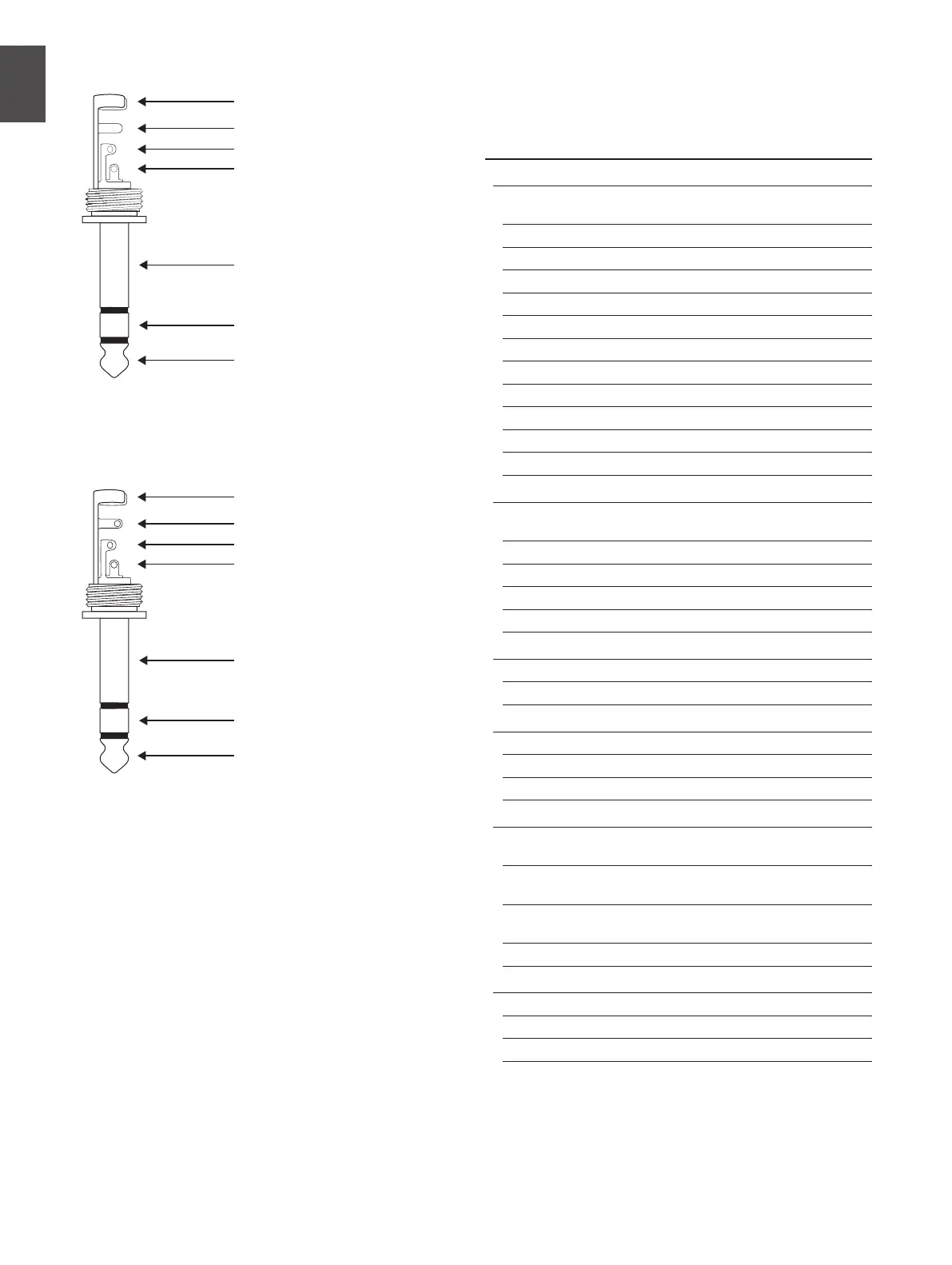

strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.3: ¼"stereo plug
Fig. 4.4: Stereo plug for headphones connection
Specifications5.
MONO INPUTS
Microphone inputs
Type XLR, electronically balanced,
discrete input circuit
Mic E.I.N. (20 Hz - 20 kHz)
@ 0 Ω source resistance -132.7 dB / 137 dB A-weighted
@ 50 Ω source resistance -130 dB / 133.9 dB A-weighted
@ 150 Ω source resistance -127.1 dB / 130.9 dB A-weighted
Frequency response <10 Hz - 200 kHz (-1 dB)
Gain range +10 to +60 dB
Max. input level +12 dBu @ +10 dB gain
Impedance approx. 2.6 kΩ balanced
Signal-to-noise ratio -107 dB / -111 dB A-weighted
(0 dBu In @ +22 dB gain)
Distortion (THD+N) 0.005% / 0.003% A-weighted
Line input
Type ¼" TRS connector electronically
balanced
Impedance approx. 20 kΩ balanced
10 kΩ unbalanced
Gain range 10 to +40 dB
Max. input level +20 dBu @ 0 dB Gain
Fade-out attenuation1 (Crosstalk attenuation)
Main fader closed 85 dB
Channel fader closed 88 dB
Frequency response
Microphone input to main out
<10 Hz - 80 kHz +0 dB / -1 dB
<10 Hz - 137 kHz +0 dB / -3 dB
Stereo inputs
Type ¼" TRS connector, electronically
balanced
Impedance approx. 20 kΩ bal. / 10kΩ unbal.
(+4 dBu operating level)
approx. 20 kΩ bal. / 5kΩ unbal.
(-10 dBV)
Max. input level +22 dBu
EQ mono channels
Low 80 Hz / ±15 dB
Mid 2.5 kHz / ±15 dB
High 12 kHz / ±15 dB
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal

Behringer XENYX 1002FX Specifications

General

Headphone out	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3
Total Harmonic Distortion (THD)	0.005 %
Microphone input impedance	2600 Ω

Weight and Dimensions

Depth	220 mm
Width	189 mm
Height	47 mm
Weight	1600 g
