4 Installation
The drive should be mounted in a vertical position only on a flat, flame resistant, vibration free
mounting using the integral holes. IP55/66 is allowed to be mounted outdoors but must be
protected from sunlight and it also recommended having a roof to avoid snow directly on the
drive. See User Manual BFI-H3 for more details.

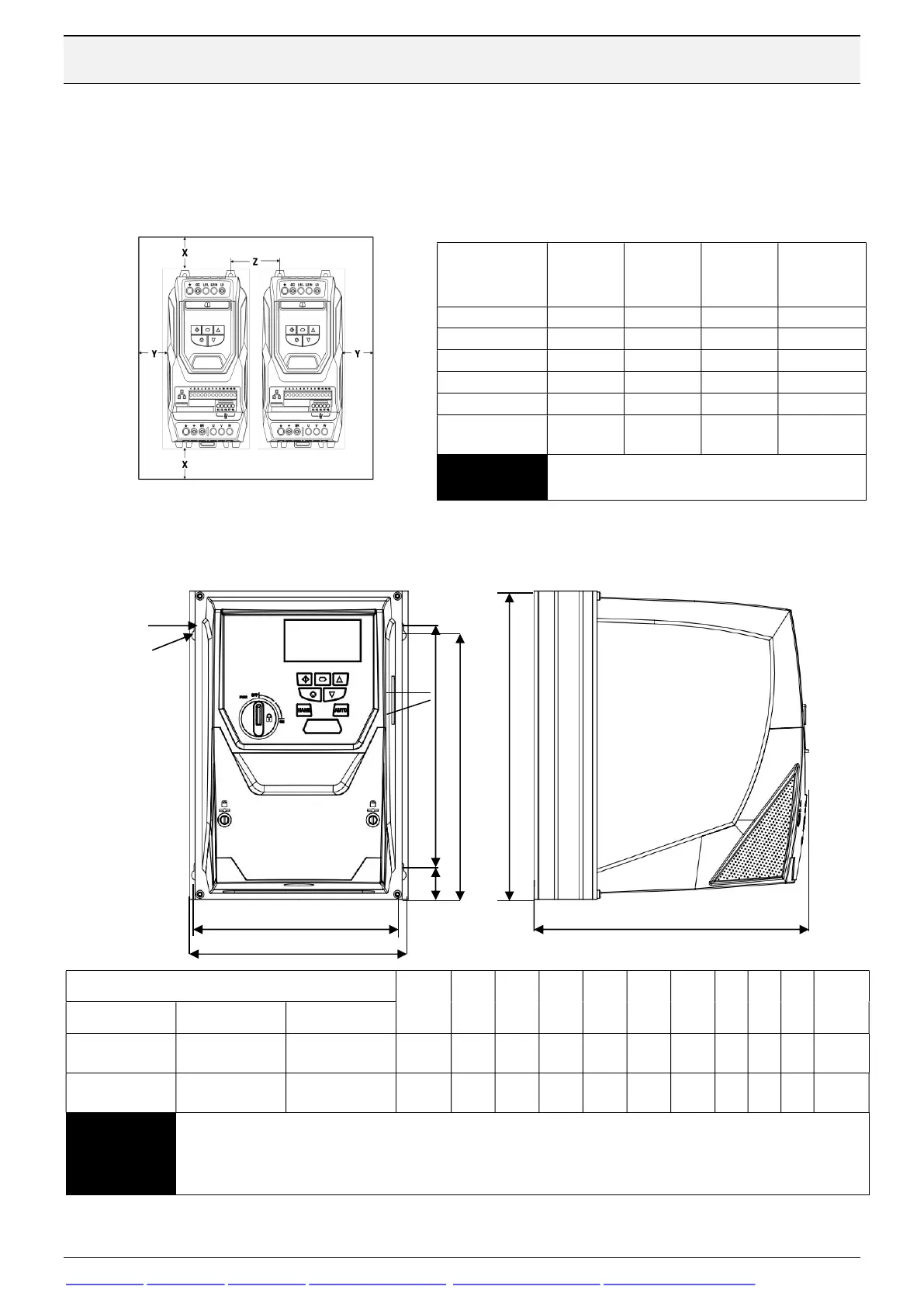

4.1 Physical dimensions IP66
BFI-H3-IP66
Drive
size
A
Height
[mm]
B
[mm]
D
[mm]
E
[mm]
F
Depth
[mm]
G
Width
[mm]
H
[mm]
I
[mm]
J
[mm]
Weight
[kg]
1 x 230 V 3 x 230 V 3 x 400 V
0043 – 0105
[0,75–2,2 kW]
0043 – 0105
[0,75–2,2 kW]
0022 – 0095
[0,75- 4 kW]
2 257 220 200 29 239 188 178 4.2 8.5 4,8
None
0180 – 0240
[4,0 – 5,5 kW]
0140 – 0240
[5,5 – 11 kW]
3 310 277 252 33.4 266 211 198 4.2 8.5 8,5
NOTE
Mounting bolts for Size 2 and 3: 4 x M4.
Control Terminal, Required Torque all sizes 0,5 Nm.
Power Terminal, Required Torque all sizes 1 Nm.
Drive IP-class
and
Size
X [mm]
Above &
Below
Y [mm]
Either
Side
Z [mm]
Between
drives
Minimum
Airflow
[m3/min]
IP20, size 2 75 10 46 0,3
IP20, size 3 100 10 52 0,9
IP20, size 4 200 25 70 1,7
IP20, size 5/6 200 25 70 2,9
IP20, size 8 300 100 100 20
All IP55 and
IP66
200 10 0 No require-
ment
Note
All BFI can be mounted close to each without
any space in between
A
F
G
H
D
B
E
Ø
I
Ø
J
Ø
I
Ø
J
