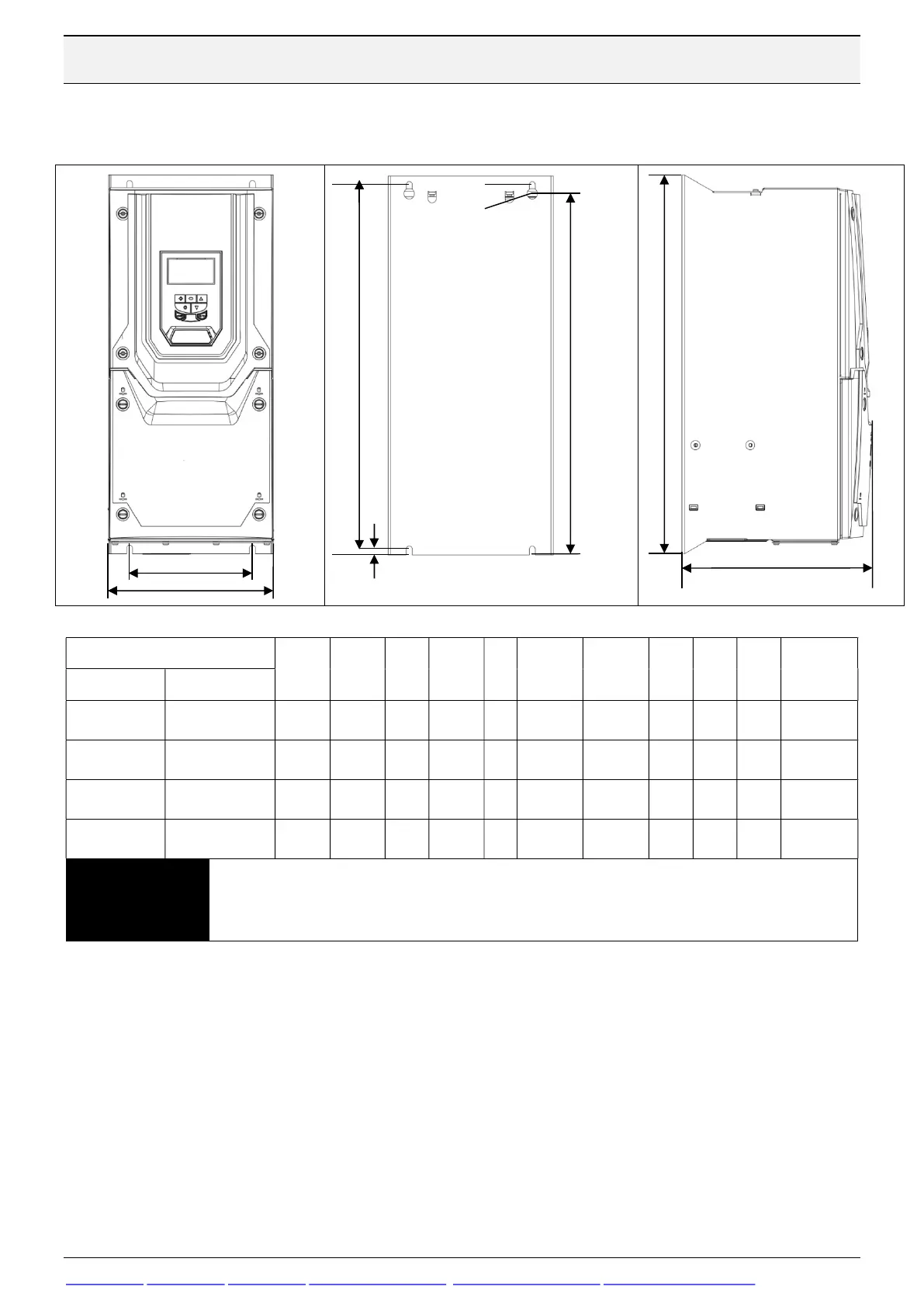

4.3 Physical dimensions IP55
BFI-H3-IP55
Drive
size
A
Height
[mm]
B
[mm]
D [mm] E
[mm]
F
Depth
[mm]
G
Width
[mm]
H
[mm]
I
[mm]
J
[mm]
Weight
[kg]
3 x 230 V 3 x 400 V
0300 – 0460
[ 7,5-11 kW]
0300 – 0460
[ 15-22 kW]
4 450 428 433 8 252 171 110 8,5 15 12
0610 - 0900
[ 15–22 kW]
0610 – 0900
[ 30–45 kW]
5 540 515 520 8 270 235 175 8,5 15 23
1100 – 1500
[ 30–37 kW]
1100 – 1800
[ 55–90 kW]
6 865 830 840 10 330 330 200 11 22 55
1800 – 2480
[ 45–75 kW]
2020 – 3020
[110–160 kW]
7 1280 1245 1255 10 360 330 200 11 22 89
NOTE
Mounting bolts: Size 4 and 5: M8 Size 6 and 7: M10 (5/16 UNF)
Control Terminal Torque Settings: 0.5 Nm.
Power Terminal Torque Settings: Size 4: 2 Nm Size 5: 4 Nm Size 6 and 7: 20 Nm.
IP55 Drives do not have any predrilled gland holes for cable inlet.
H
G
A
B
D
E
F
Ø
I
Ø
J
