28 / 160 EN
Local air conditioner / User Manuel
C
Note:
1. The flat end of the exhaust pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep
the ventilation of the exhaust pipe not blocked.

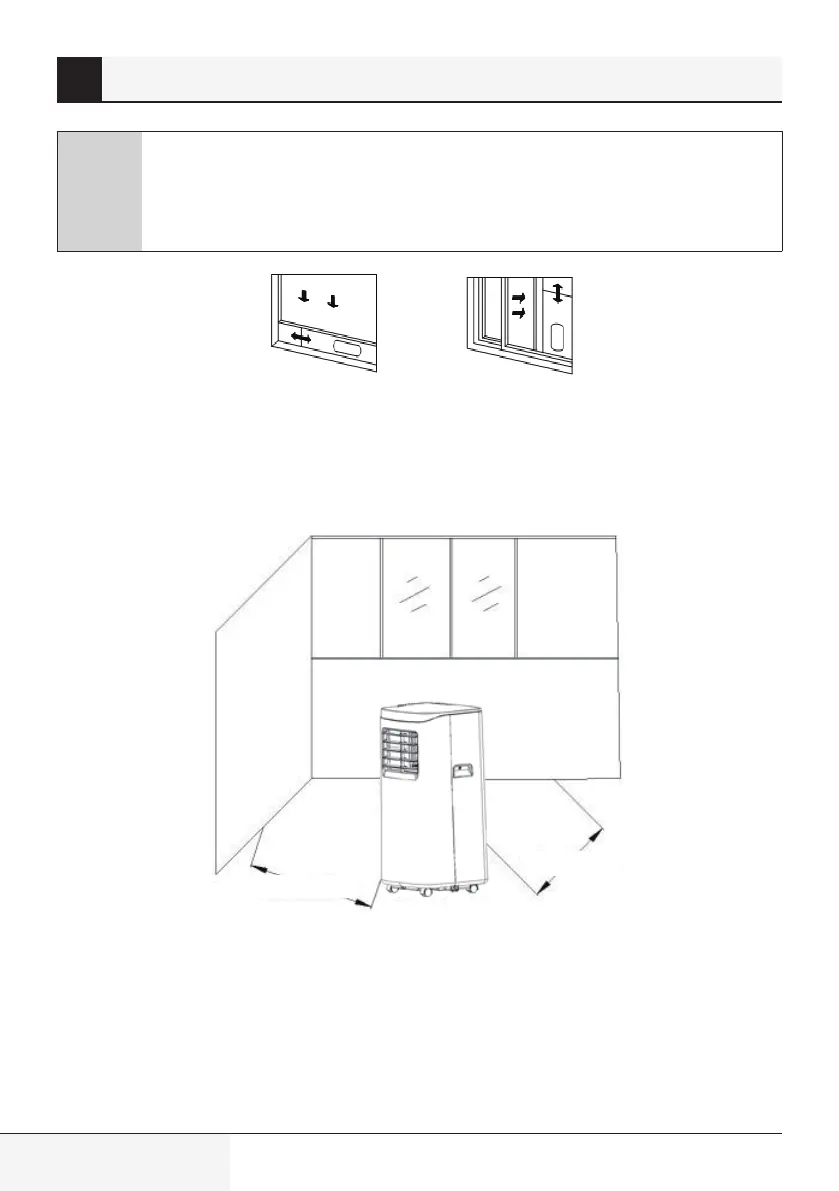

Fig. 2 Fig. 3
3. Install the body
1) Move the machine with installed heat pipe and fittings before the window, and the distance
between the body and walls or other objects shall be least 50 cm (as shown in Fig. 4).
Min: 50cm
Min: 50cm
Fig. 4
2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the
window sealing plate assembly (as shown in Fig. 5 and Fig. 6) .
5 Installaton and adjustment
