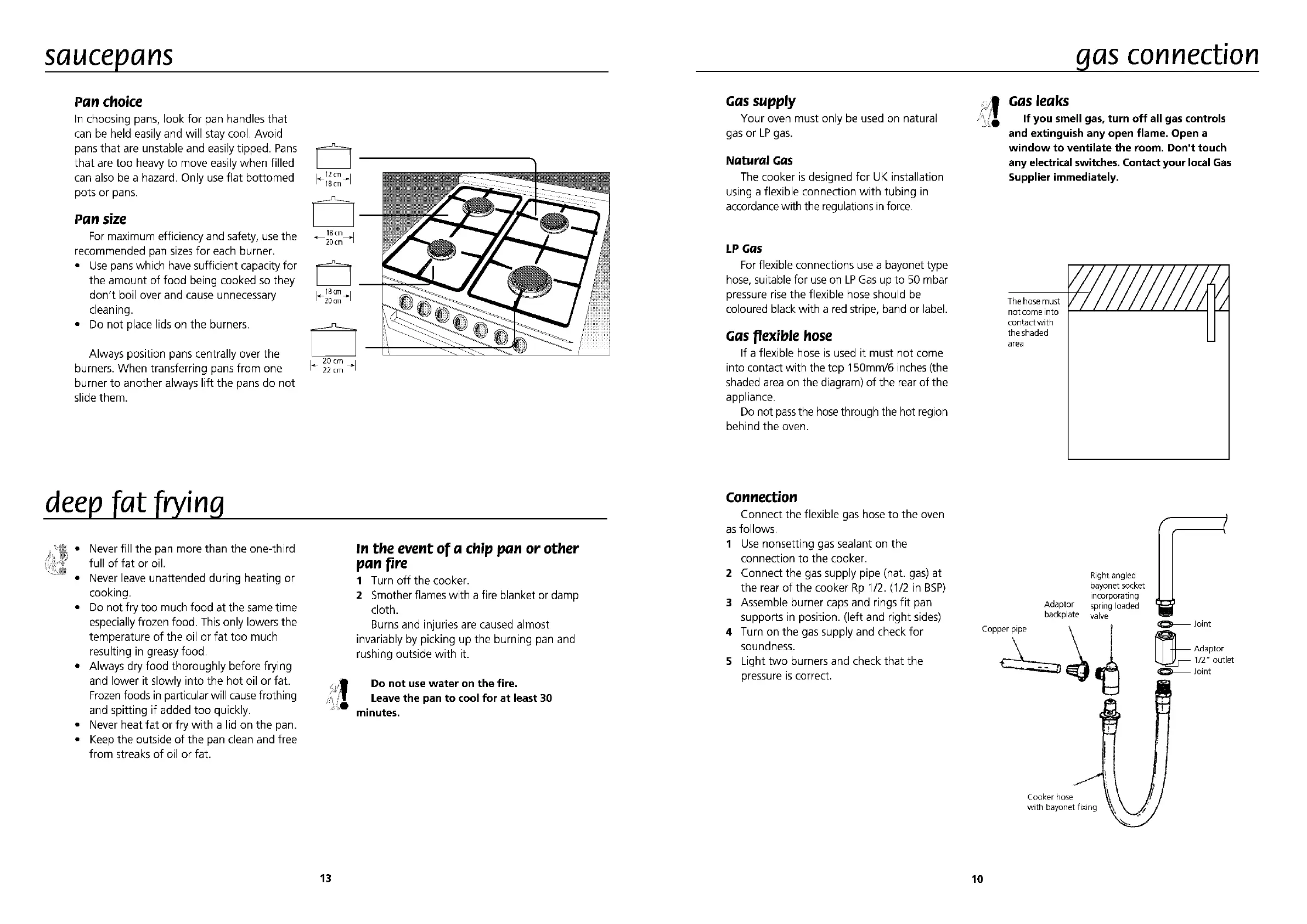

Pan choice
In choosing pans, look for pan handles that
can be held easily and will stay cool. Avoid
pans that are unstable and easily tipped. Pans
that are too heavy to move easily when filled
can also be a hazard. Only use flat bottomed
pots or pans.
Pan size
For maximum efficiency and safety, use the
recommended pan sizes for each burner.
e Use pans which have sufficient capacity for
the amount of food being cooked so they
don’t boil over and cause unnecessary
cleaning.
e Do not place lids on the burners.
Always position pans centrally over the
burners. When transferring pans from one
burner to another always lift the pans do not
slide them.
© Never fill the pan more than the one-third
ull of fat or oil.
e Never leave unattended during heating or
cooking.
e Do not fry too much food at the same time
especially frozen food. This only lowers the
emperature of the oil or fat too much
resulting in greasy food.
e Always dry food thoroughly before frying
and lower it slowly into the hot oil or fat.
Frozen foods in particular will cause frothing
and spitting if added too quickly.
e Never heat fat or fry with a lid on the pan.
® Keep the outside of the pan clean and free
tom streaks of oil or fat.
saucepans
deep fat frying
In the event of a chip pan or other
pan fire
1. Turn off the cooker.
2 Smother flames with a fire blanket or damp
cloth.
Burns and injuries are caused almost
invariably by picking up the burning pan and
rushing outside with it.
Do not use water on the fire.
Leave the pan to cool for at least 30
minutes.
Gas supply
Your oven must only be used on natural
gas or LP gas.
Natural Gas
The cooker is designed for UK installation
using a flexible connection with tubing in
accordance with the regulations in force.
LP Gas
For flexible connections use a bayonet type
hose, suitable for use on LP Gas up to 50 mbar
pressure rise the flexible hose should be
coloured black with a red stripe, band or label.
Gas flexible hose
If a flexible hose is used it must not come
into contact with the top 150mm/6 inches (the
shaded area on the diagram) of the rear of the
appliance.
Do not pass the hose through the hot region
behind the oven.
Connection
Connect the flexible gas hose to the oven
as follows.
1 Use nonsetting gas sealant on the
connection to the cooker.
2 Connect the gas supply pipe (nat. gas) at
the rear of the cooker Rp 1/2. (1/2 in BSP)
3 Assemble burner caps and rings fit pan
supports in position. (left and right sides)
4 Turn on the gas supply and check for
soundness.
5 Light two burners and check that the
pressure is correct.
Copper pipe
10
gas connection
of Gas leaks
If you smell gas, turn off all gas controls
and extinguish any open flame. Open a
window to ventilate the room. Don't touch
any electrical switches. Contact your local Gas
Supplier immediately.
The hose must
not come into
contact with
the shaded
area
Right angled
bayonet socket
incorporating
Adaptor spring loaded
backplate valve
S>—_ Joint
Adaptor
1/2” outlet
&>— Joint
Cooker hose
with bayonet fixing
