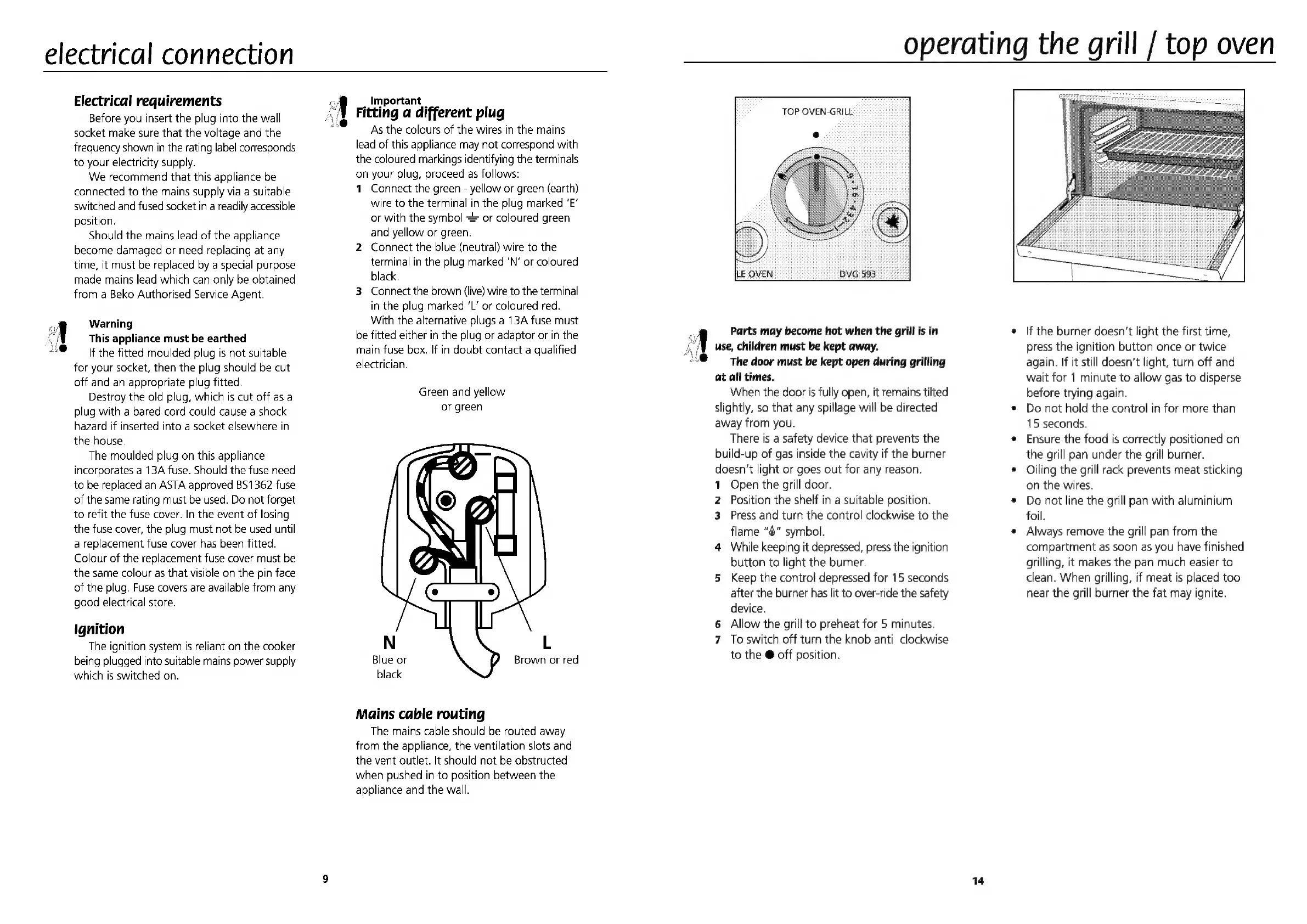

Beko DVG593 - Electrical Connection

electrical connection
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and the
frequency shown in the rating label corresponds
to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitable
switched and fused socket in a readily accessible
position.
Should the mains lead of the appliance
become damaged or need replacing at any
time, it must be replaced by a special purpose
made mains lead which can only be obtained
from a Beko Authorised Service Agent.
Warning
This appliance must be earthed
If the fitted moulded plug is not suitable
for your socket, then the plug should be cut
off and an appropriate plug fitted.
Destroy the old plug, which is cut off as a
plug with a bared cord could cause a shock
hazard if inserted into a socket elsewhere in
he house.
The moulded plug on this appliance
incorporates a 13A fuse. Should the fuse need
o be replaced an ASTA approved BS1362 fuse
of the same rating must be used. Do not forget
o refit the fuse cover. In the event of losing
he fuse cover, the plug must not be used until
a replacement fuse cover has been fitted.
Colour of the replacement fuse cover must be
he same colour as that visible on the pin face
of the plug. Fuse covers are available from any
good electrical store.
Ignition
The ignition system is reliant on the cooker
being plugged into suitable mains power supply
which is switched on.
> | Important
H Fitting a different plug
<il
As the colours of the wires in the mains
lead of this appliance may not correspond with
the coloured markings identifying the terminals
on your plug, proceed as follows:
1 Connect the green - yellow or green (earth)
wire to the terminal in the plug marked ‘E’
or with the symbol = or coloured green
and yellow or green.
2 Connect the blue (neutral) wire to the
terminal in the plug marked ’N’ or coloured
black.
3 Connect the brown (live) wire to the terminal
in the plug marked ‘L’ or coloured red.
With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or in the
main fuse box. If in doubt contact a qualified
electrician.
Green and yellow
or green
L
Blue or Brown or red
black
Mains cable routing
The mains cable should be routed away
from the appliance, the ventilation slots and
the vent outlet. It should not be obstructed
when pushed in to position between the
appliance and the wall.
1
operating the grill / top oven
TOP OVEN-GRILL
Parts may become hot when the grill is in
use, children must be kept away.
The door must be kept open during grilling
at all times.
When the door is fully open, it remains tilted
slightly, so that any spillage will be directed
away from you.
There is a safety device that prevents the
build-up of gas inside the cavity if the burner
doesn’t light or goes out for any reason.
1 Open the grill door.
2 Position the shelf in a suitable position.
3 Press and turn the control clockwise to the
flame “4” symbol.
4 While keeping it depressed, press the ignition
button to light the burner.
5 Keep the control depressed for 15 seconds
after the burner has lit to over-ride the safety
device.
6 Allow the grill to preheat for 5 minutes.
7 To switch off turn the knob anti clockwise
to the @ off position.
14
If the burner doesn’t light the first time,
press the ignition button once or twice
again. If it still doesn’t light, turn off and
wait for 1 minute to allow gas to disperse
before trying again.
Do not hold the control in for more than
15 seconds.
Ensure the food is correctly positioned on
the grill pan under the grill burner.
Oiling the grill rack prevents meat sticking
on the wires.
Do not line the grill pan with aluminium
foil.
Always remove the grill pan from the
compartment as soon as you have finished
grilling, it makes the pan much easier to
clean. When grilling, if meat is placed too
near the grill burner the fat may ignite.
