BELARUS-920.4/952.4 Operating manual
13
1.3.5. Integrated display
Integrated display 13 (Fig. 1.1) (hereafter - ID) and program console of integrated display 14
(Fig. 1.1) (hereafter - PU) display information on performance parameters of tractor systems and
assemblies and provide operator with data on malfunction and failure of some system.
ID includes indicators and announciating lamps according to Figure 1.5:
1 – speedometer (needle indicator);
2 – tachometer (needle indicator);
3 – PTO tachometer (indicator lamp);
3.1, 3.5 – segments of PTO speed scale (yellow);
3.2, 3.3, 3.4 – segments of PTO speed scale (green);
4.1, 4.2– announciators of PTO speed scale ranges (yellow);
5 – high-beam pilot lamp-indicator (blue);
6 – trailer turn pilot lamp – indicator (green);
7 – tractor turn pilot lamp – indicator (green);
8 – parking brake pilot lamp – indicator (red);
9 – high on-board voltage pilot lamp-indicator (red);
10 – low coolant level pilot lamp-indicator (yellow);
11 – multifunction display;

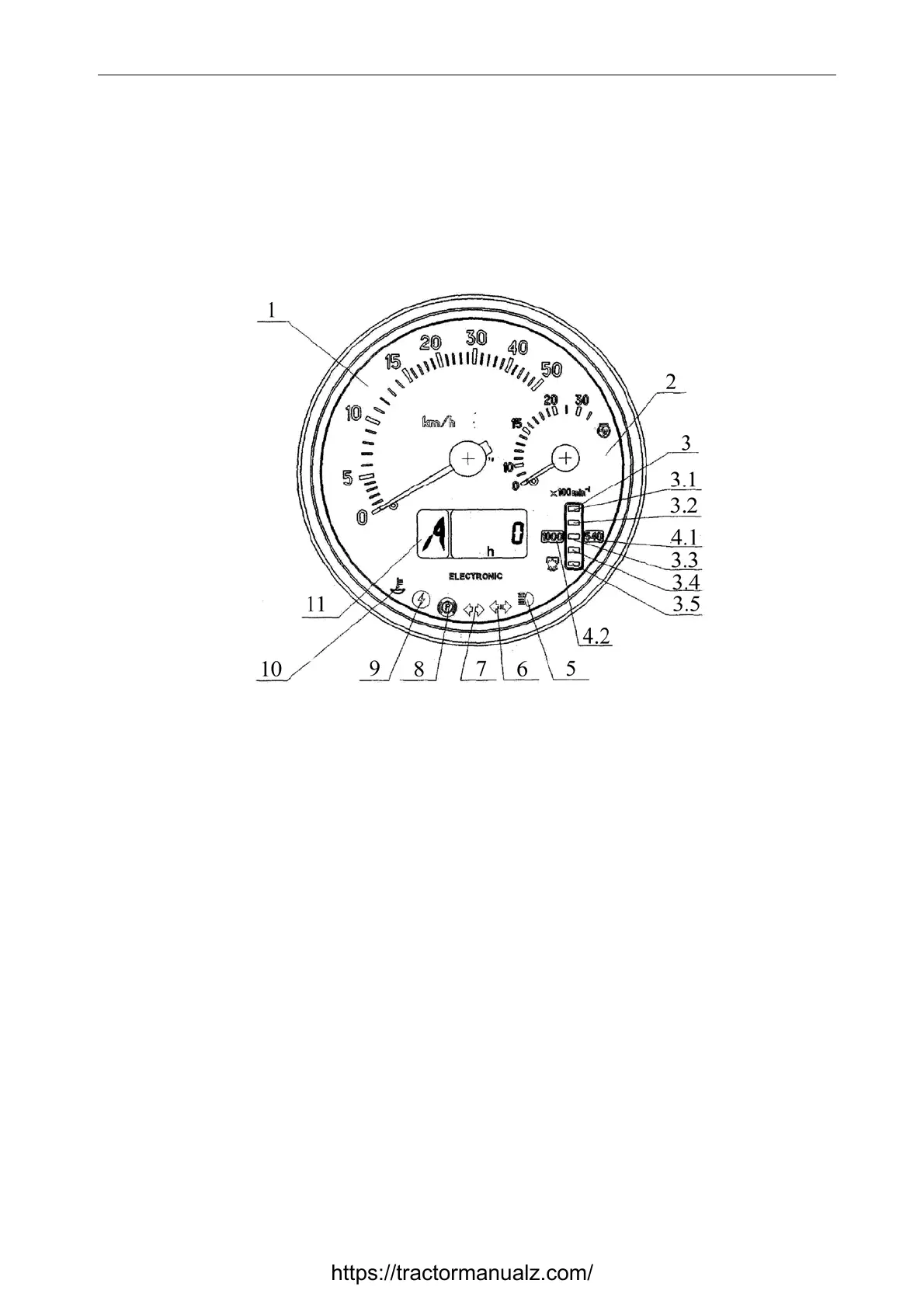

Figure 1.5 – Integrated display
1.3.6. Designation and principle of operation of integrated display indicators
a) 1 (Fig. 5) – speedometer – displays design tractor speed on needle indicator. Design
speed is higher than actual speed as far as tractor skidding is not considered.
