BELARUS-920.4/952.4 Operating manual
9
1.3 Tractor structure and operation
1.3.1 Controls and Instruments
This operating manual gives description and principle of operation of only controls and in-
struments, specified in section 1.3.1. Location, designation and principle of operation of other con-
trols (levers, pedals, key switches, etc.) are similar to BELARUS-920.3/952.3 and are represented
in Operating manual RE 900-0000010, attached to tractors BELARUS -920.4/952.4.

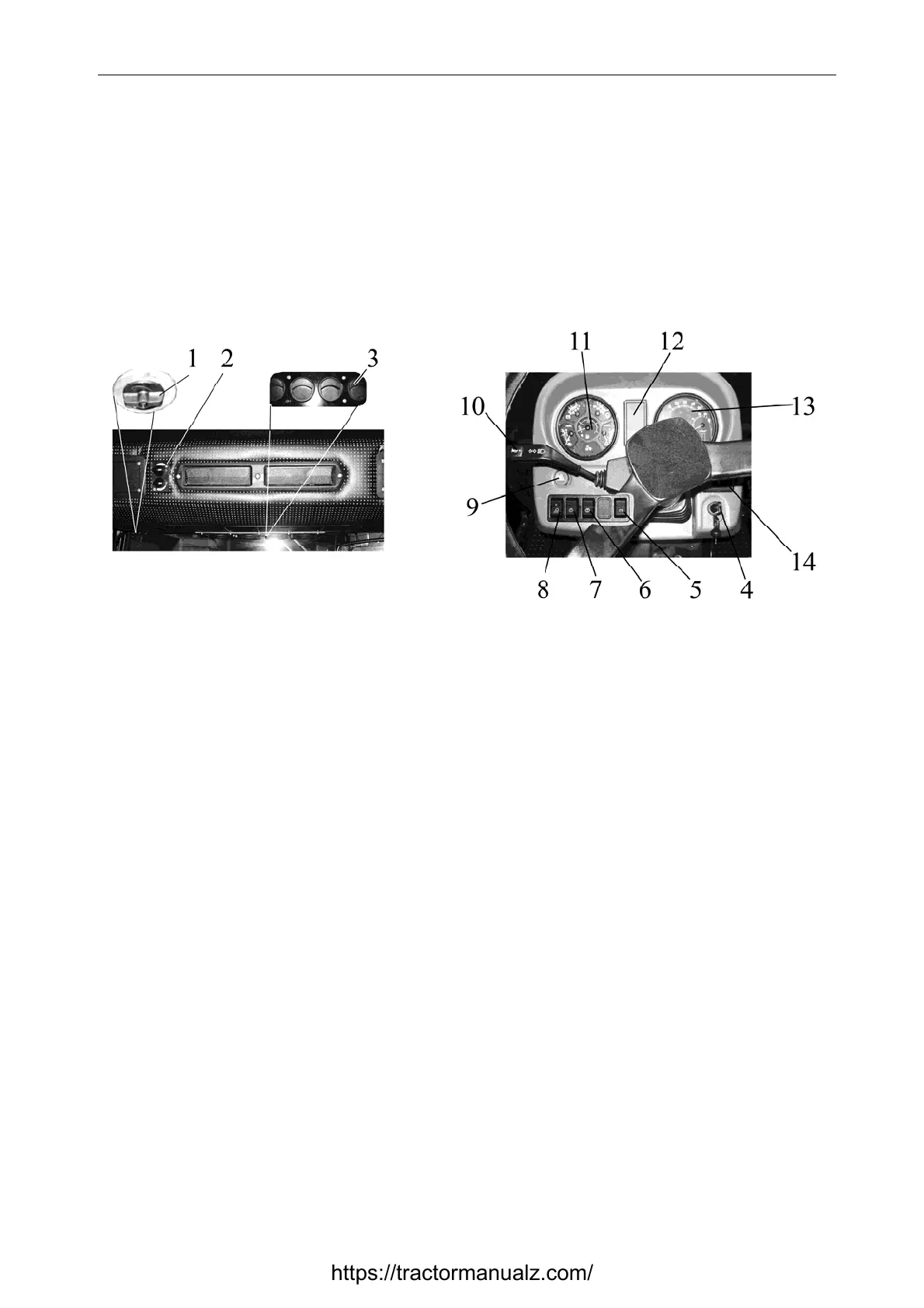

1 – Control handle of heater control valve;
2 – Climatic installation control panel;
3 – Deflectors;
4 – Switch of starter and instruments;
5 – Remote battery disconnect switch;
6 – Windshield washer switch;
7 – Main light switch;
8 – switch of front headlights installed on brackets of front lights;
9 – Switch of hazard warning flasher;
10 – Multi-function underwheel switch (turn indicator, high/low beams, horn, signaling with high
beam);
11 – Instrument cluster;
12 – Signal lamp unit;
13 – Integrated display;
14 – Program console of integrated display.
Figure 1.1 – Controls and instruments
1.3.2. Switch of starter and instruments
Switch of starter and instruments 4 (Fig. 1) has four positions:
• 0 — Switched off;
• I — Instruments, pilot lamp unit, glow plugs are switched on;
• II — Starter is switched on (non-retained position);
• III —Radio receiver is on (the key turned counterclockwise).
