3. On-board system voltage

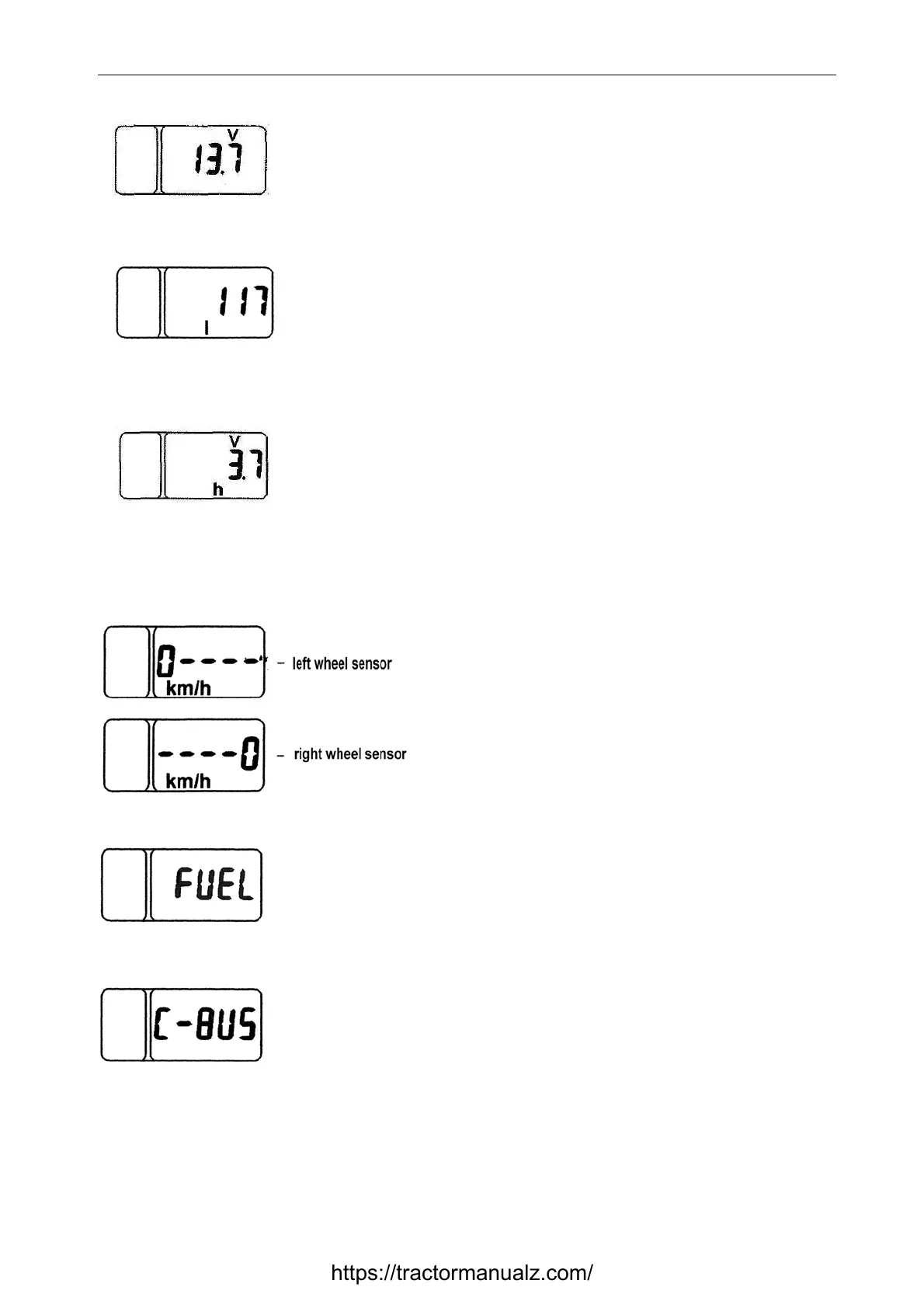

This mode displays current value of system voltage in digital form.
4. Remaining fuel volume
This mode displays current fuel amount in tank in liters.
This mode is available only on stopped tractor (when there are no signals
from speed sensors).
Note: Tractor should be stopped on horizontal surface in order to increase
displaying accuracy of fuel amount in tank.
5. Operation time with remaining fuel
This mode displays anticipated time of engine operation, calculated for
current values of instantaneous fuel consumption and remaining fuel.
ID in the mode of failure messages displaying
1. Diagnostics of speed sensor operability and connection:
When signals from speed sensors are missing for
10-12 seconds, LCD display shows a message in
form of digit “0”, characterizing location of de-
fective sensor (left of right).
2. Operability diagnostics of frequency probe of fuel volume (FPFV):
When frequency signal from FPFV is missing for 2 seconds, LCD display
of ID displays “FUEL” message.
3. Diagnostics of operability and connection of CAN-bus to ID with СAN interface:
Absence of signal in CAN-bus (ID) is accompanied with “C-BUS” mes-
sage.
Every failure message (Example: 0---, FUEL, C-BUS) is displayed on LCD display in priority ir-
respective of information displayed. When pressing “Mode” button consecutively, there should be
messages paging. When viewing the last message and pressing “Mode” button again, LCD display
proceeds to the mapping mode according to the cycle of previously specified operating parameters.
