DC2(0)...10V (input impedance 100k
Ω
)
V4. 12. 2010
.
Subject to modification
17

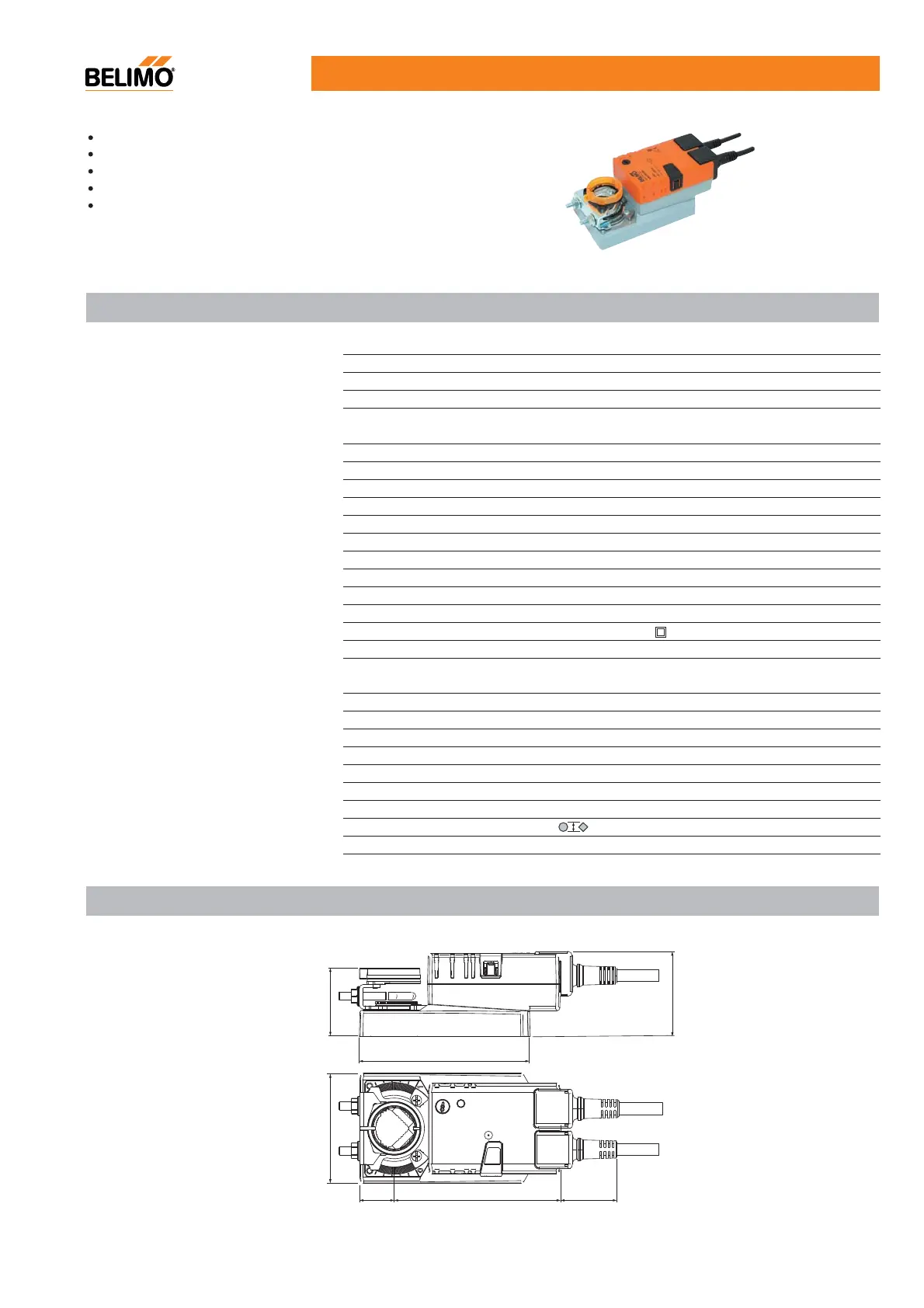

NMU230SR
Technical data
Electrical data
Nominal voltage
Nominal voltage range
Power consumption
Wire/transformer sizing
Connection cable: Power supply
Cable 1m, 4x0.75mm
2
Functional data
Torque
Control signal
Direction of rotation
Angle of rotation
Running time
Sound power level
Position indication
Working conditions
Protection class
II (totally insulated)
Degree of protection
EMC
Mode of operation
Ambient temperature
Non-operation temperature
Humidity test
Maintenance
Dimensions / weight
Dimensions (LxWxH)
Shaft length
Shaft
8...26.7mm (8...20mm with K-NA)
Weight
Approximately 950g
For operation of air control dampers in HVAC system
Torque: 10Nm
Nominal voltage: AC 100... 240V
Control signal: DC 2(0)...10V
Position feedback: DC 2...10V
Signals
Low voltage directive
Dimensions [mm]
124
0
6
26
25
121
41
08
Gearing latch disengaged by pushbutton, self-resetting
Manual override
Feedback signal
Position accuracy
AC 100...240V 50/60Hz
AC 85...265V
3.5W @ running / 1W @ holding
6.5VA
Cable 1m, 2x0.75mm
2
10Nm
Selectable by switch
Max. 95°, adjustable by mechanical stops
150s for 95°
Max. 35dB(A)
Mechanical, remote visible
IP54 in any direction
CE according to 89/336/EEC
Type 1 to EN 60730-1
-30...+50°C
-40...+80°C
95% RH, non-condensing (EN 60730-1)
Maintenance-free
187x80x62mm
Min. 40mm (20mm with K-NA for reverse mounting - optional)
CE according to 73/23/EEC
DC 2...10V
±5%
