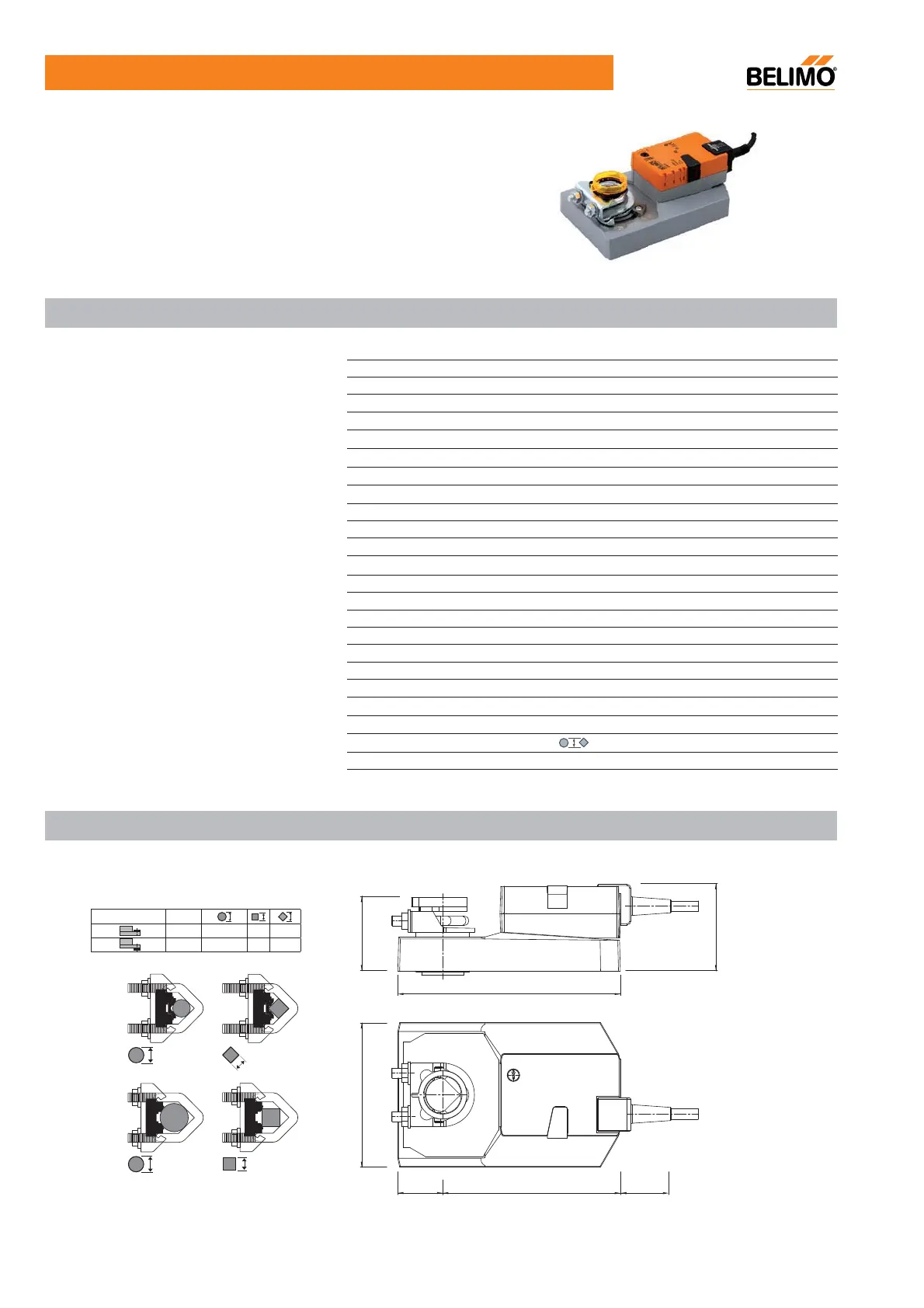

22
V4. 12. 2010
.
Subject to modification
GMU24
Technical data
Electrical data
AC 24V 50/60Hz, DC 24V
AC/DC 19.2...28.8V
4W @ running / 2W @ holding
6VA
Cable 1m, 3x0.75mm
2
Functional data
40Nm
Selectable by switch
Max. 95
°
, adjustable by mechanical stops
150s for 95
°
Max. 48dB(A)
Mechanical, remote visible
Working conditions
III (safety low voltage)
IP54 in any direction
CE according to 89/336/EEC
Type 1 to EN 60730-1
-30...+50
°
C
-40...+80
°
C
95% RH, non-condensing (EN 60730-1)
Maintenance-free
Dimensions / weight
220x116x70mm
Min. 52mm (20mm for reverse mounting)
12...26.7mm/12...25.2mm
Approximately 1700g
Dimensions [mm]
Gearing latch disengaged by pushbutton, self-resetting
Nominal voltage
Nominal voltage range
Power consumption
Wire/transformer sizing
Connection cable
Torque
Direction of rotation
Manual override
Angle of rotation
Running time
Sound power level
Position indication
Protection class
Degree of protection
EMC
Ambient temperature
Mode of operation
Maintenance
Non-operation temperature
Humidity test
Shaft length
Dimensions (LxWxH)
Weight
Shaft
ΓFor operation of air control dampers in HVAC system
ΓTorque: 40Nm
ΓNominal voltage: AC/DC 24V
ΓControl: Open/Close
60116
70
179
14336 41
Standard :
Length
>52
>20
12...26.7
>12
>12
12...26.7 <25
<25
Damper spindle
12...22mm 12...18mm
22...26.7mm 12...18mm
