Belling BDO9608BK - Oven Dimensions and Cabinet Fit

9

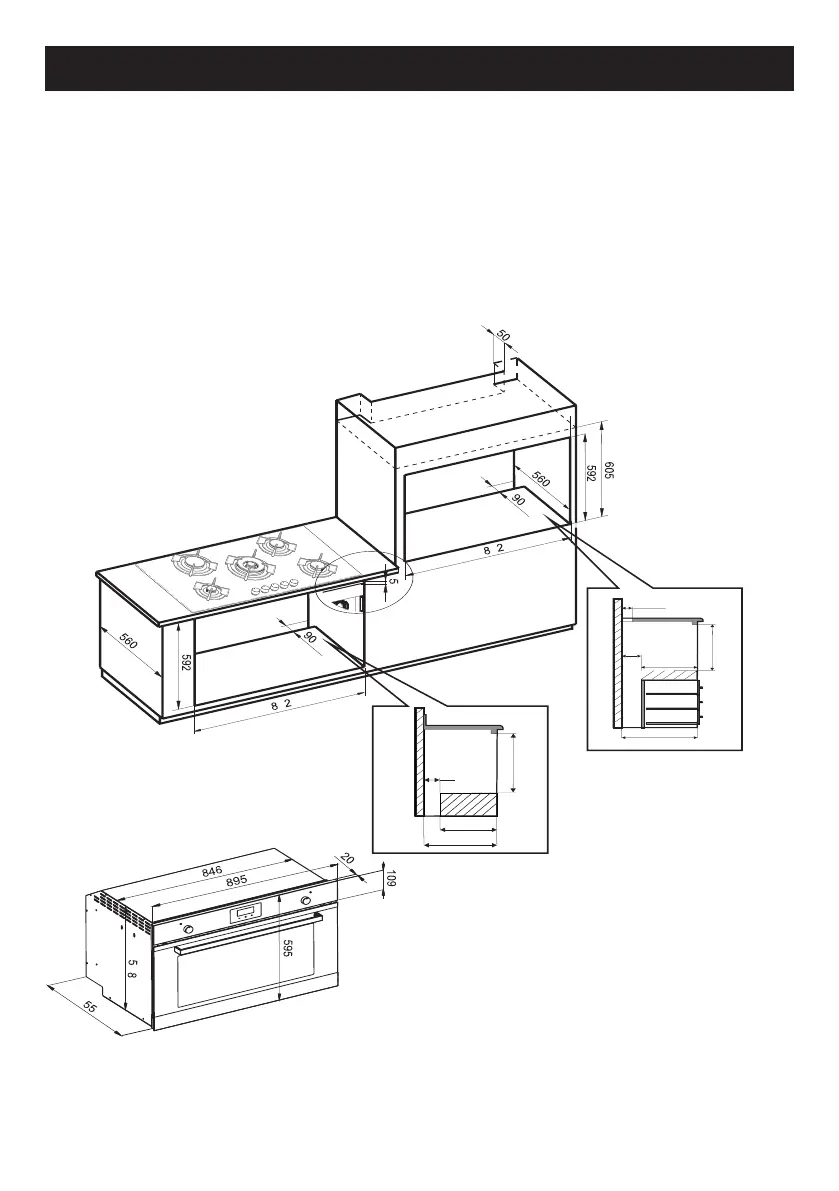

fig. 3
INSTALLATION
Dimensions
• The oven can be installed under a hob or in a column.
• The dimensions of the housing for the oven are given in figure 3.
• Make sure that surrounding materials are heat-resistant.
• Align the oven centrally inside the cabinet then fix it with screws.
• All measurements are in mm .
90
592
470
560
50
90
470
560
592
8
8
5
5
