Belling BI 60 MF - Installing Under a Worktop

22
The appliance is designed to fit into a
standard 600mm wide housing unit,
with minimum internal dimensions as
shown.
Please note that all dimensions and
sizes given are nominal - some variation
is to be expected.
590mm is to the underside of the
worktop when the appliance is built
under. A minimum of 580mm to the
underside of the panel above is
required when the appliance is
installed into a tall housing unit.
Installing the appliance under a
worktop
Where the appliance is installed under
a worktop, with a hob installed above
it, the installation instructions for the
hob must be read in conjunction with
these instructions.

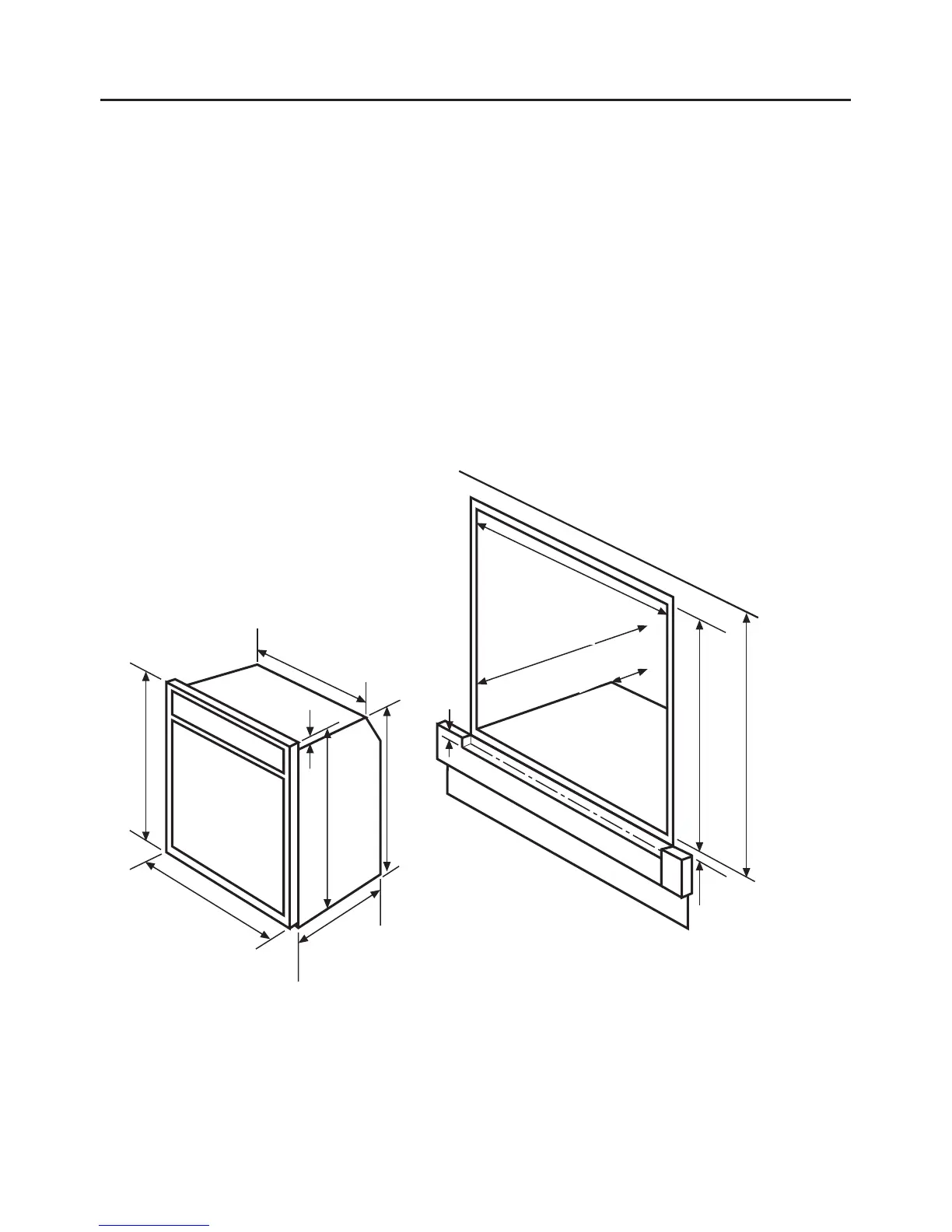

INSTALLATION INSTRUCTIONS
547mm
20mm
585mm
595mm
550mm
585mm
565mm
min
595mm
m
i
n
5
5
0
m
m
min 580mm
min 590mm
12mm gap
in plinth
6mm
3
0
-
8
0
m
m
