INSTALLATION
For products congured for a 13Amp
fused spur & supplied with mains
cable attached.
This appliance must be connected by a
competentperson,usingxedwiringvia
a double pole switched fused spur outlet,
with a contact separation of 3mm at all
poles.
Use a 13 amp fuse.
We recommend that the appliance is
connectedbyaqualiedelectrician,
who will comply with the I.E.E. and local
regulations.
Warning: This appliance must be earthed.
The wires in the mains lead are coloured
in accordance with the following code:
Green & Yellow = earth, Blue = neutral,
Brown = live.

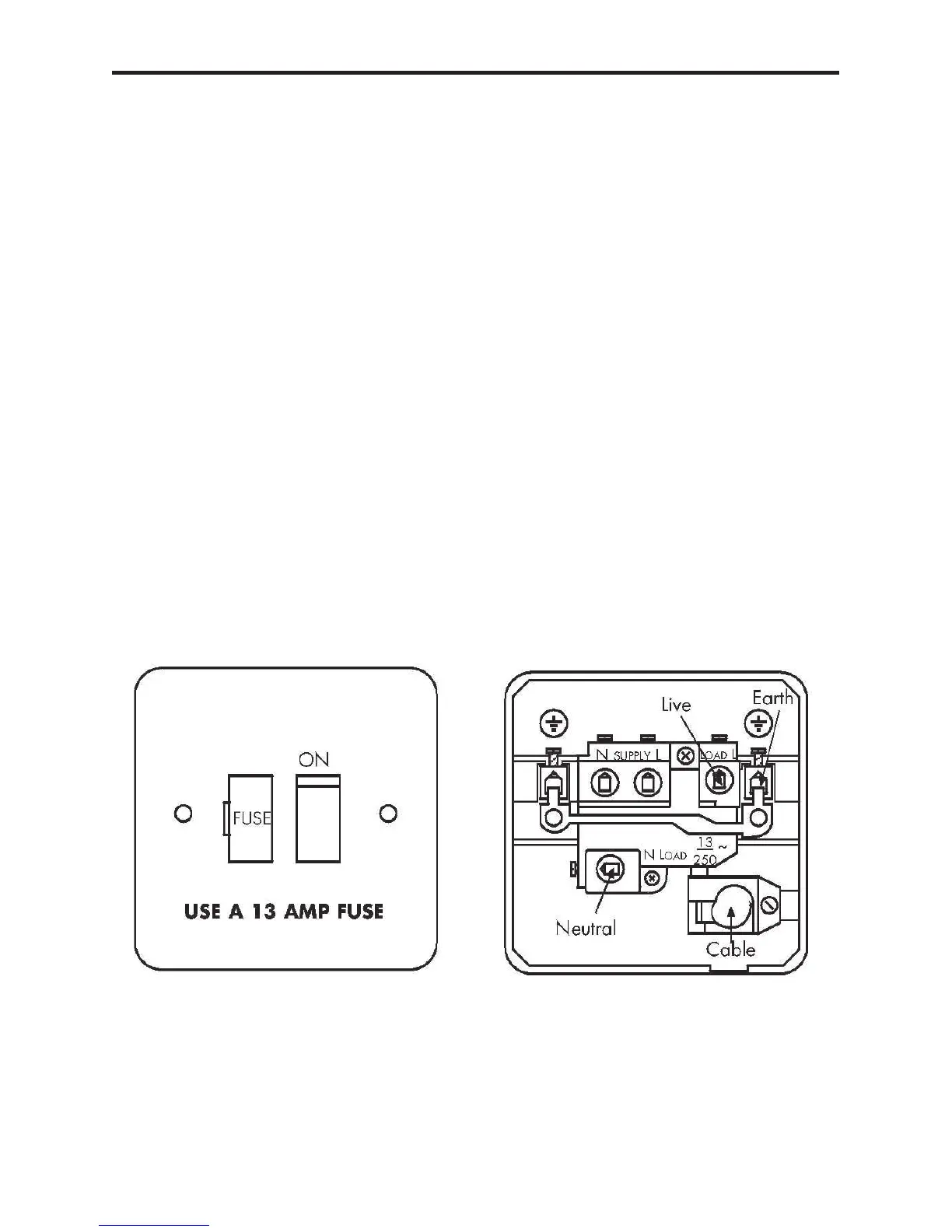

Typical example of a double pole
fuse spur outlet
As the colours of the wires in the mains
lead for the appliance may not cor-
respond with the coloured markings
identifying the terminals in your spur box,
proceed as follows:
1. The wire which is coloured green and
yellow must be connected to the
terminal marked E (Earth) or coloured
green.
2. The wire which is coloured blue must
be connected to the terminal marked
N (Neutral) LOAD or coloured Black.
3. The wire which is coloured brown must
be connected to the terminal marked L
(Live) LOAD or coloured Red.
If the supply cord is damaged, obtain a
special cord from the Customer Support
Helpline,whichmustbettedbya
qualiedperson.
