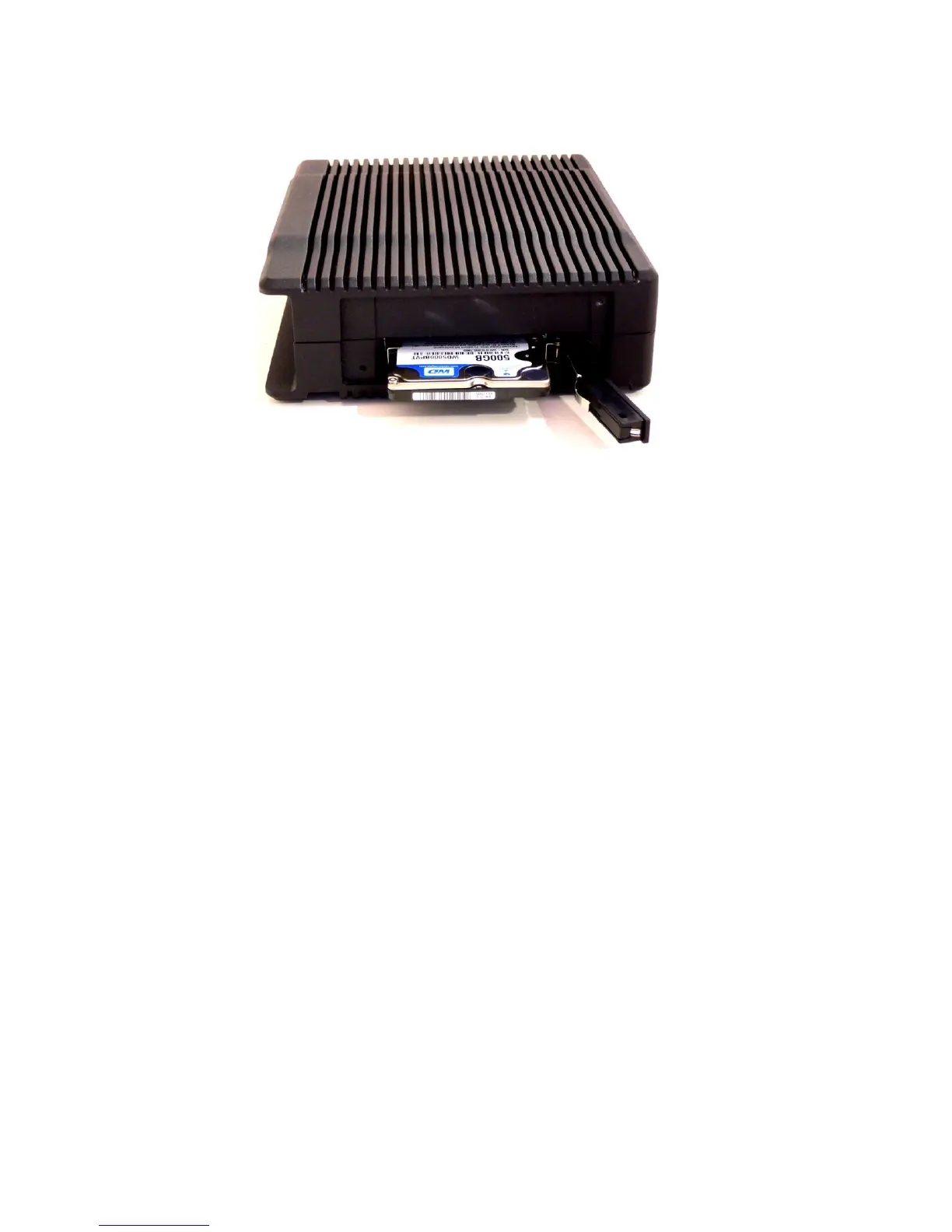

3. Pull out the lever to extract the hard disk drive.
4. Gently remove the hard disk drive.
5. Insert new hard disk and close level to lock position. Then reinstall the hard disk metal
cover and tighten the thumb screws.
Connections and Turning on Power
Make sure that all systems are powered off before making or removing any connections to
the LC8810 unit. Follow the steps below in connecting the devices:
1. Connect the VGA cable of the display monitor to the LC8810.
2. Connect the RS232 cables of serial devices to the LC8810.
3. Connect the parallel cable of parallel device to parallel port of LC8810.
4. Connect the PS/2 keyboard (or bump bar) and mouse to the LC8810. Note
that the bump bar cable connector has connector locking feature to prevent
connector from being pulled out by pulling the cable. When plugging in the
connector, grab the connector at the end of the plug and push in tightly until
it is fully snapped into the socket.
5. Connect the Ethernet cable from Ethernet hub or switch to the LC8810.
6. Connect other peripherals such as speakers and USB devices to the LC8810.
7. Connect power to all peripheral devices and turn on power.
8. Connect power adapter to the LC8810. Make sure that the flat side of power
plug is oriented upwards. Reversing the orientation and forcefully plugging
into the power socket will result in damage to the connector. (When
unplugging power adapter from LC8810, do not pull the cable. The connector
has a locking function that is released by holding the plug and pulling
backwards. If the connector is forced out by pulling the cable, it may result in
damage to the connector.)
