INSTALLING BLADES
WARNING: Always remove the plug from the power source before installing
or removing a blade or adjusting the saw in any way.
1. Place a clean piece of cardboard on a workbench to protect the blade and the
workbench.
2. Lift the depth adjustment lever (1) and lower the sole plate (2) as far as it will go
(Fig. 1). Press down on the depth adjustment lever to lock the sole plate in its
lower position.
3. Rotate the lower blade guard lever (3) clockwise toward the front of the saw and
carefully place the saw on the cardboard.
4. Insert the 6 MM blade hex key into the blade screw (4).
5. Rotate the blade hex screw counter- clockwise and remove both the blade screw
and the outer blade flange (5).
NOTE: If the arbor turns with the blade screw, press on the blade locking lever (6)
and slowly rotate the blade screw until the locking lever engages the spindle (Fig. 2).

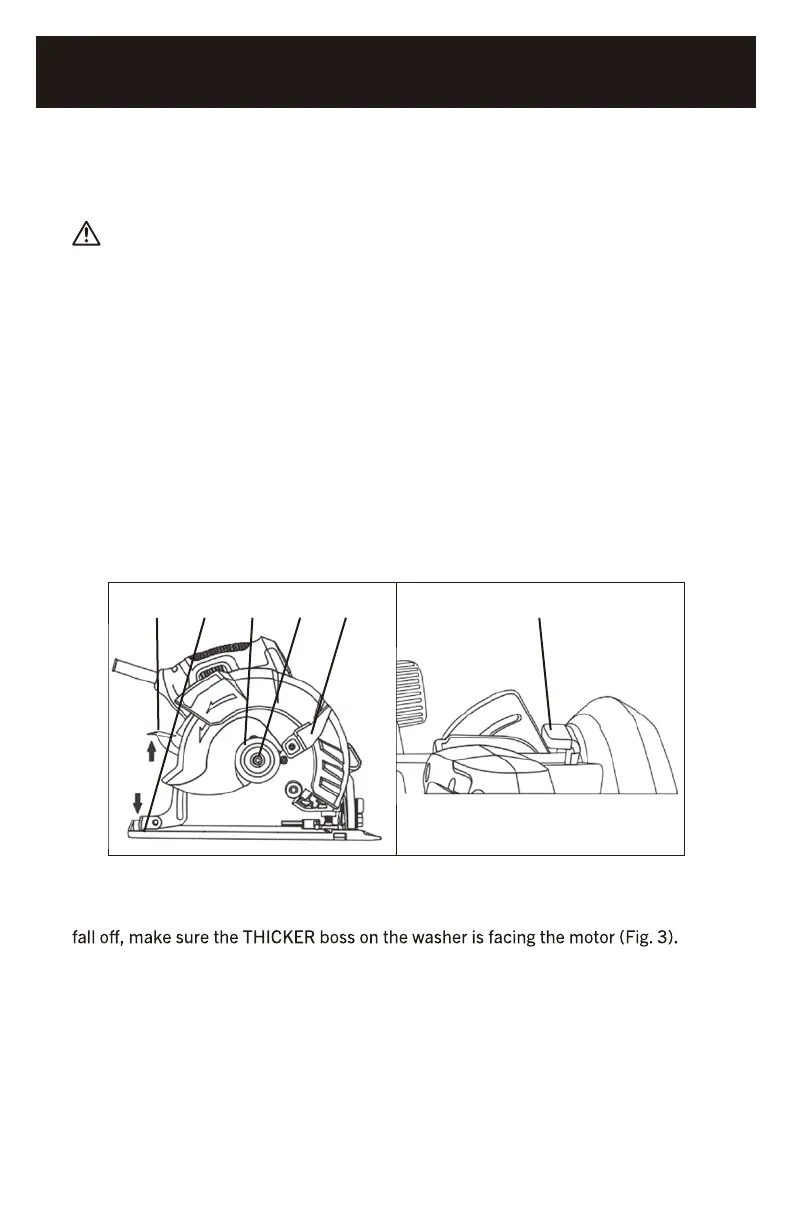

1 2 5 4 3 6
FIG. 1 FIG. 2
NOTE: Do NOT remove the inner blade flange (7) from the arbor (8). If it should
6. Slide the blade upward through the slot in the sole plate and place the blade
hole onto the arbor.
NOTE: Make sure the blade teeth are pointing toward the front of the saw.
7. Place the outer blade flange (5) onto the arbor and thread the blade screw
(4) into the arbor.
8. Tighten the blade screw.
7-1/4" CIRCULAR SAW
