46 Bend-Tech Dragon A150
Troubleshooting Guide
Trolley
09
Adjusting the Trolley
Tools Required
•

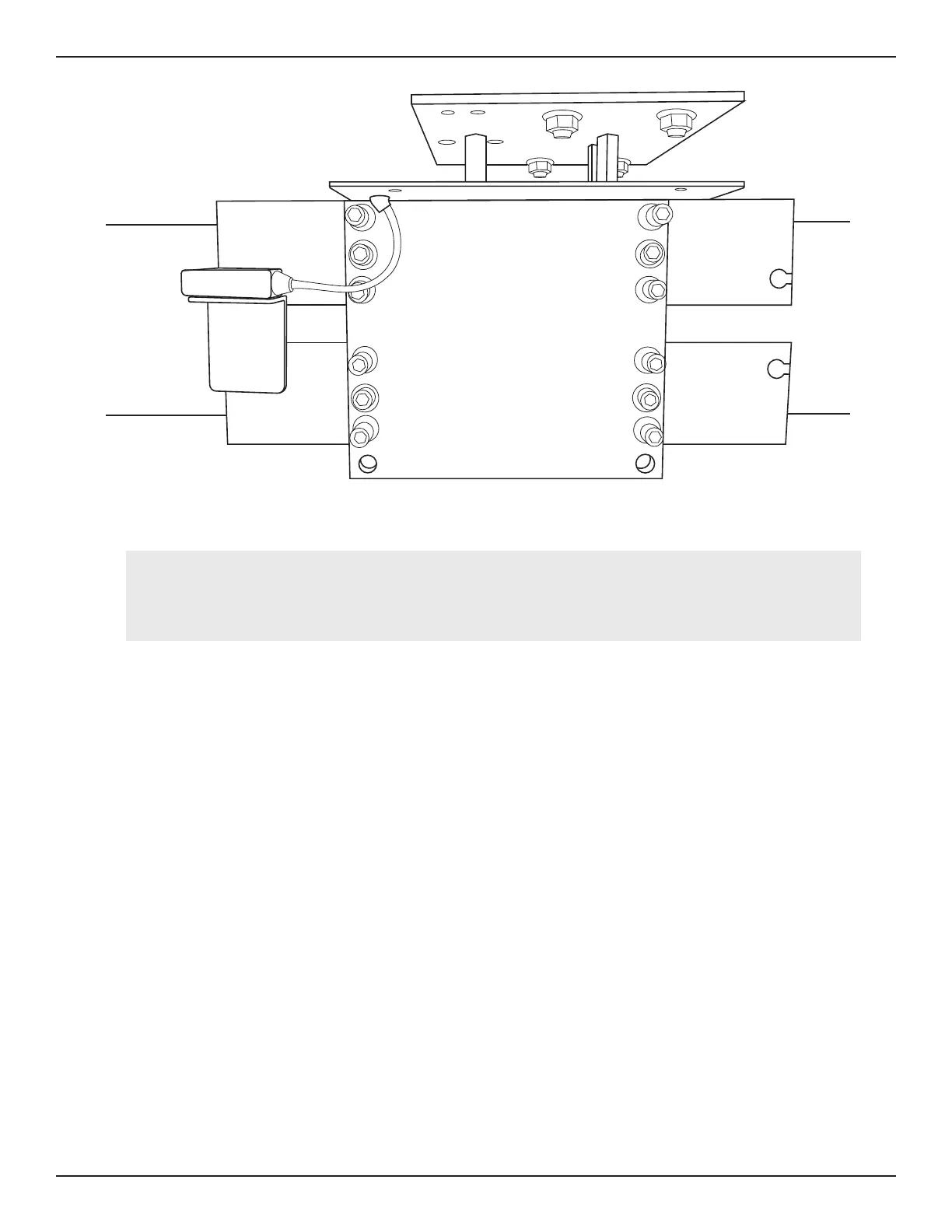

1. Locate the Trolley adjustment plate on the right side of the Trolley assembly.
2.
wrench, begin by loosening the four innermost socket cap screws roughly one full turn.
Loosen enough to allow the adjustment of the Trolley’s roller system.
3. With one hand, push up on the lower half of the Trolley roller system. Using the other hand,
tighten the four socket cap screws while holding steady upward pressure on the lower half
of the Trolley roller system.
4. To adjust side play, turn the outermost socket head screws clockwise to reduce side play,
turn them counterclockwise to increase side play. Adjust evenly to ensure smooth operation
with no side play.
5. Check play in the roller system by rocking the Trolley back and forth, and lifting up and
down.
6. Adjust to ensure the Trolley moves smoothly along the length of the Rail with no play or
binding.
