Bender rcm420 - Changeover: Overcurrent;Undercurrent;Window Mode; Setting the Correction Factor for an Additional Cascaded Current Transformer

Operation and setting
34
RCM420_D00057_03_M_ XXEN/03.2021

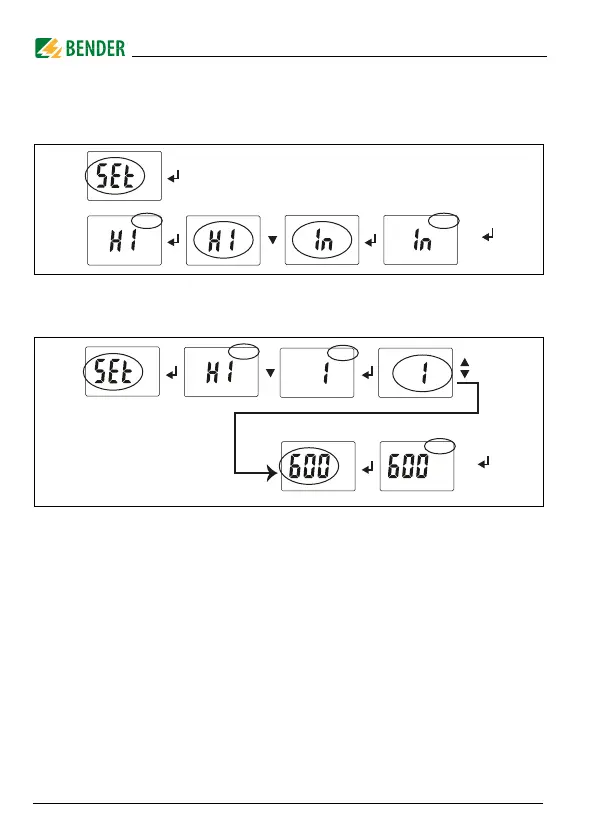

5.6.5 Changeover: overcurrent/undercurrent/window mode
The operating mode can be changed in the SEt/I 12 menu using the parame-
ters HI, Lo and In. By default, overcurrent operation (HI) is set. .
5.6.6 Setting the correction factor for an additional cascaded
current transformer
Factory setting without cascaded transformer: n = 1.
12
I
12
I
12I12I
2x
>1,5 s
n n
n n
12
I
2x
>1,5 s
