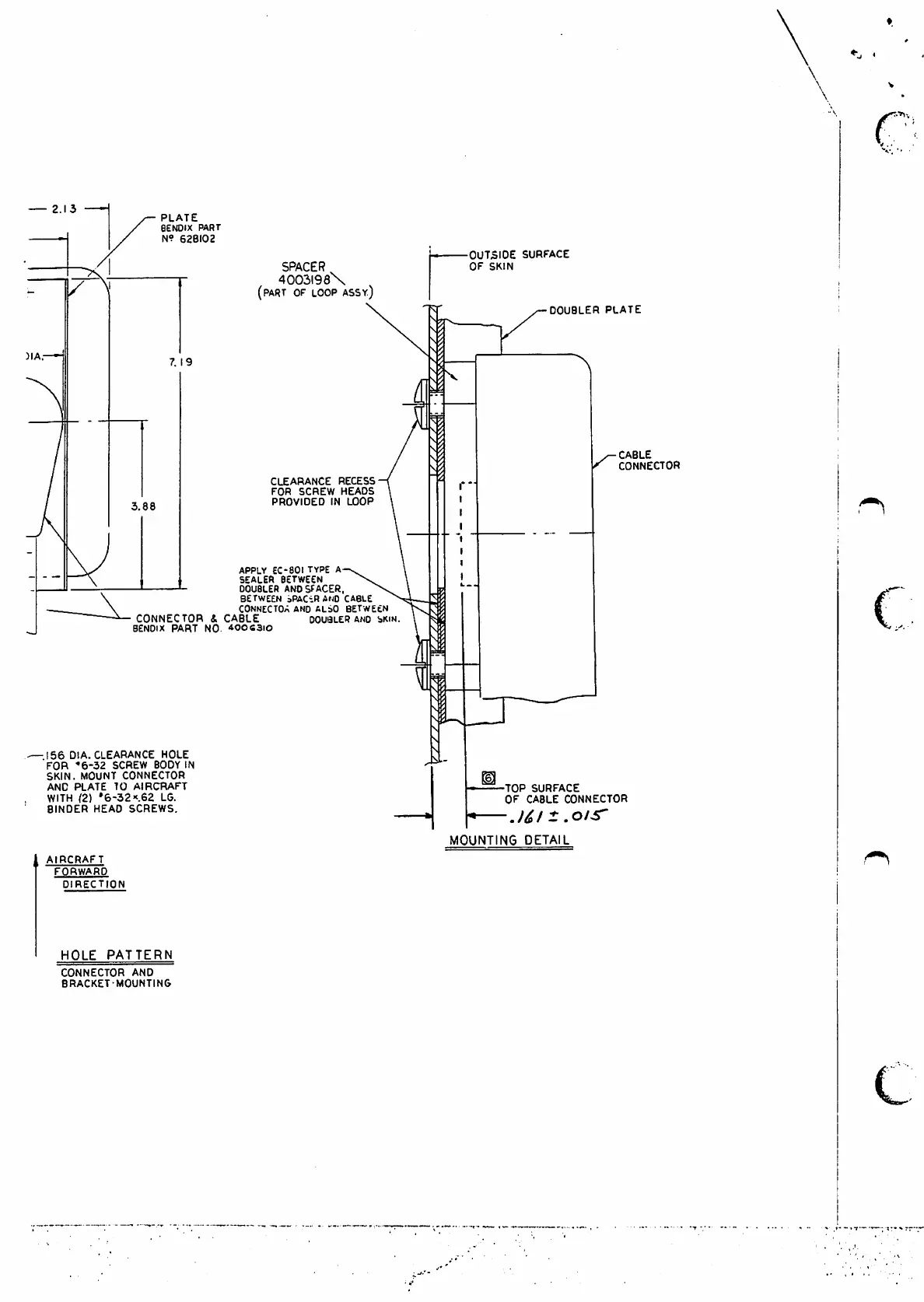

r
PLATE
B E N D I X P A R T
N9 62BI02
0UT5IDE SURFACE
OF SKIN
SPACER
4003I98\
(part of loop assy)
/
DOUBLER PLATE
)IA.-
7. I9
/-CABLE
yCONNECTOR
clearance RECE553
FOR SCREW HEADS
PROVIDED IN LOOP
5.88
APPLY EC-801 type
SEALER BETWEEN
DOUBLER AND Sf ACER,
bet wee n iPAC-RAND C ABL E ^
CONnECTOA AND also between
DOUBLER AND SKIN,
i. -
(
CONNECTOR &CABLE
B E N D I X P A R T N O A 0 0 5 3 1 O
—156 OIA. CLEARANCE HOLE
FOR *6-32 SCREW BODY IN
SKIN. MOUNT CONNECTOR
A N D P L A T E T O A I R C R A F T
W I T H ( 2 ) ' 6 - 3 2 x 6 2 L G .
BINDER HEAD SCREWS.
■TOP SURFACE
OF CABLE CONNECTOR
MOUNTING DETAIL
AIRCRAFT
FORWARD
DIRECTION
H O L E P A T T E R N
CONNECTOR AND
BRACKETMOUNTiNG
li'
