BENDIX ADF-T12B User Manual

Name: BENDIX ADF-T12B
Brand: BENDIX
Rating: 5 (1 reviews)

143 pages

To Next Page

To Previous Page

Bendix

Avionics

Division

Installation

Manual

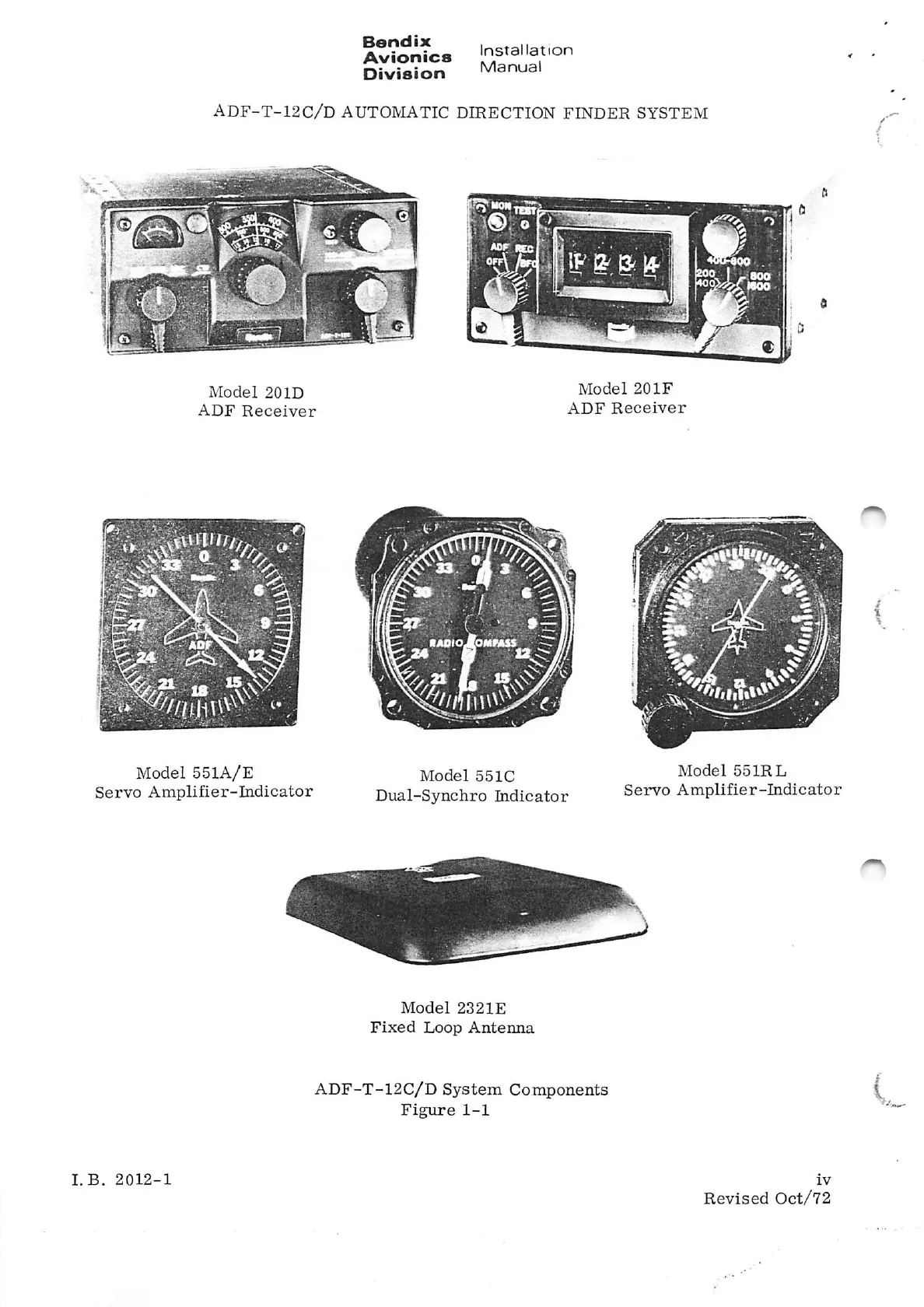

ADF-T-12C/D AUTOMATIC DIRECTION FINDER SYSTEM

Model 201F

ADF Receiver

Model 20ID

ADF Receiver

}

^////fj-j |\V'

Model 551RL

Servo Ampliﬁer-Indicator

Model 551A/E

Servo Ampliﬁer-Indicator

Model 551C

Dual-Synchro Indicator

Model 2321E

Fixed Loop Antenna

ADF-T-12C/D System Components

Figure 1-1

I.B. 2012-1

Revised Oct/72
