SECTION III

DIAGRAMS

S E N S E A N T E N N A

RECEPTACLE

MODEL 232IE

FIXED LOOP ANTENNA

MODEL 20! (]

ADF RECEIVER

REFER TO

MTERCONNCCTING

DIAGfMM

P4.J2

P3,J1

MODEL 102 A/B

AUDIO AMPLIFIER

(OPTIONAL)

MODEL 5510

SERVO AMPLIFIER-INDICATOR

C A B L E A S S E M B L Y

PART NUM BERS:

2V005

04006310

2VOI4

NOTE:

NOMINAL COMBINED

C A PA C I TA N C E O F

COAXIAL CABLES

1 A N D 2 I S 3 3 0 + 1 5 u u f

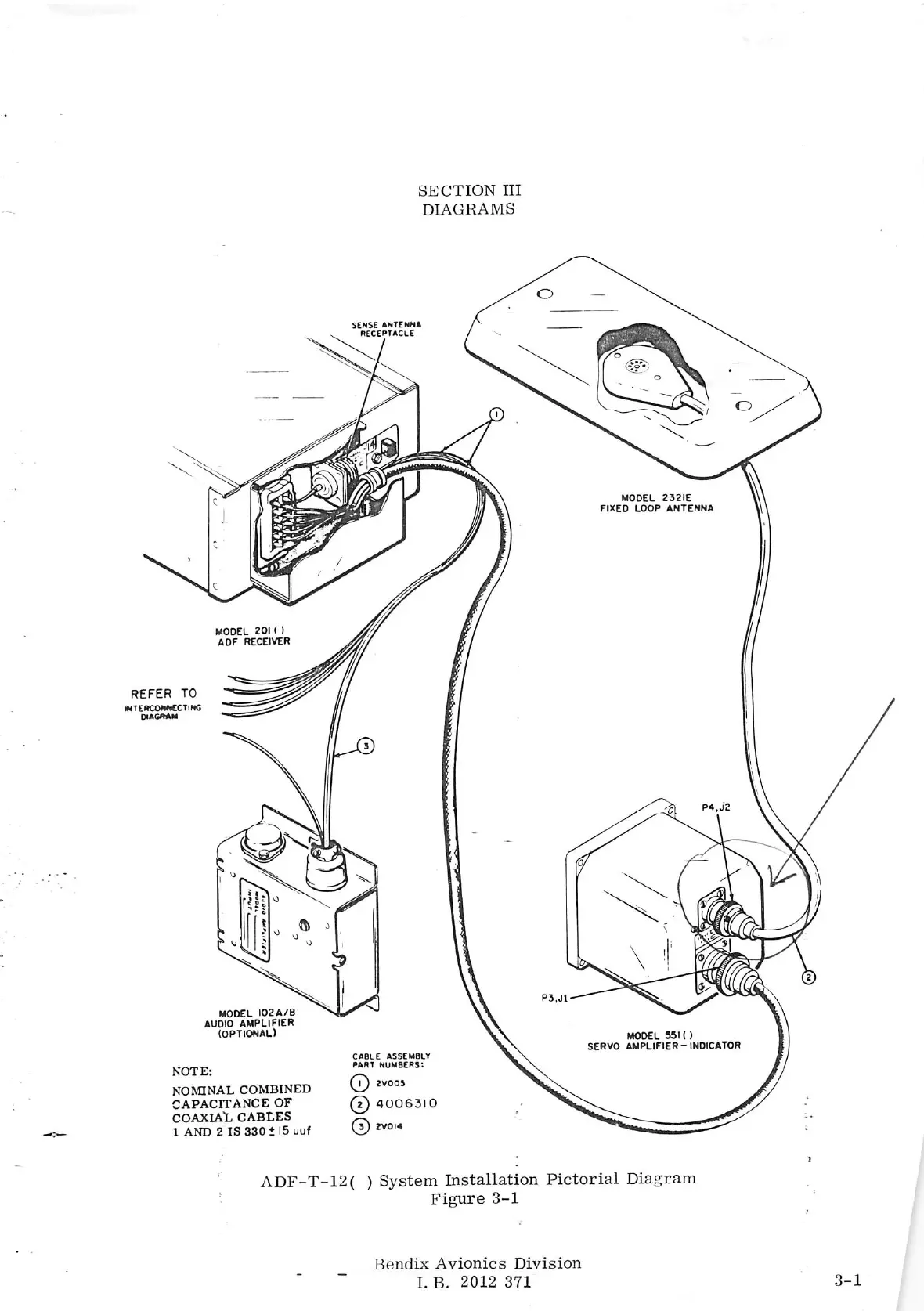

ADF-T-12( )System Installation Pictorial Diagram

Figure 3-1

B e n d i x A v i o n i c s D i v i s i o n

I. B. 2012 371

3-1
