M A I N T E N A N C E P R A C T I C E S
1
1
AUDIO
GENERATOR
J1
-o o AW/
I
A70
I
I/2W
L_ _
2
3
MODEL 102 ()
AUDIO
amplifier
4
POWER
SUPPLY
5
MODEL I02A
o
14 VO
28 VO-
MODEL 1020 L
6
7
8
OUTPUT
METER
■o
o

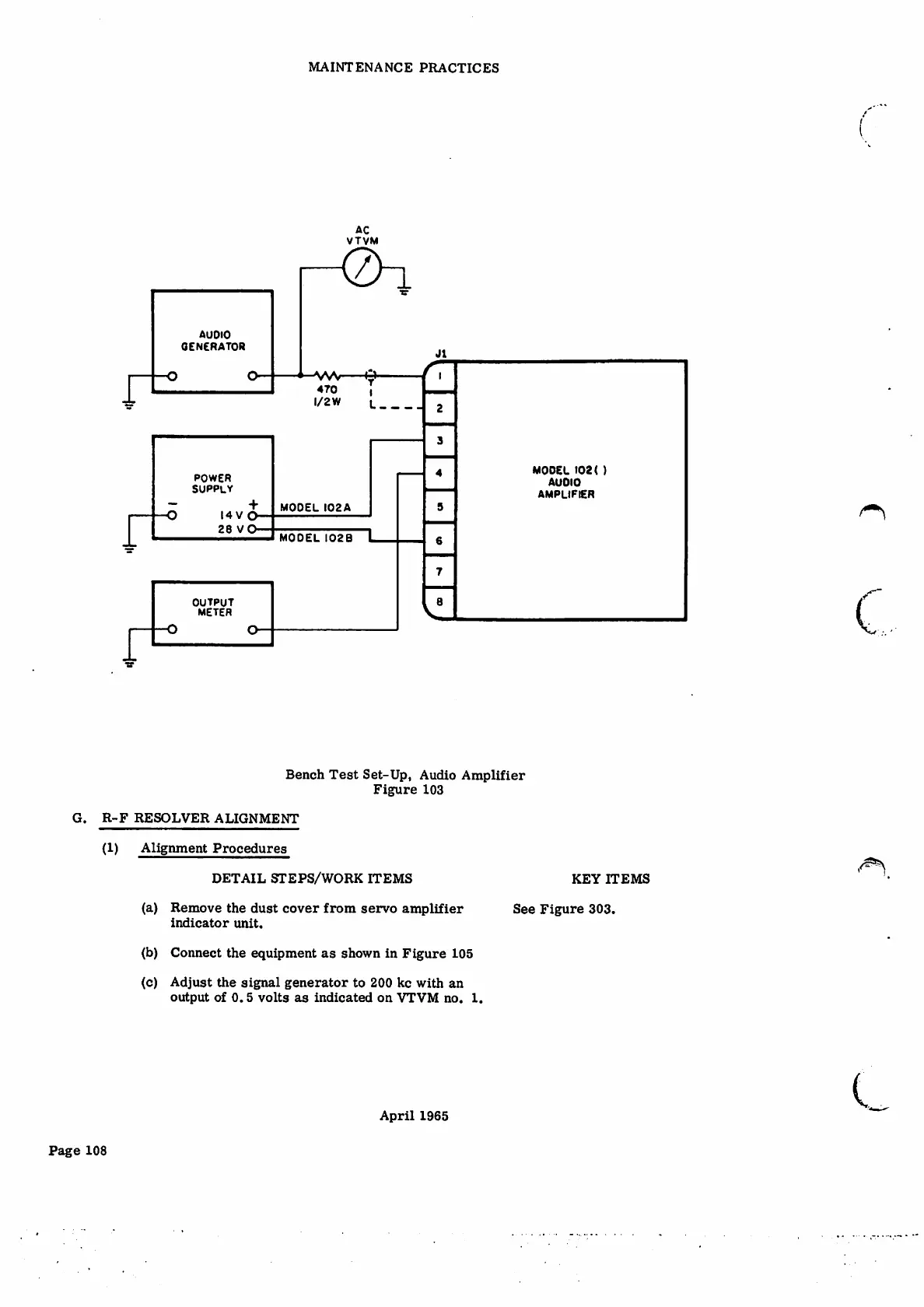

Bench Test Set-Up, Audio Amplifier
Figure 103
G. R-F RESOLVER ALIGNMENT
( 1 ) A l i g n m e n t P r o c e d u r e s
D E T A I L S T E P S / W O R K I T E M S KEY ITEMS
(a) Remove the dust cover from servo amplifier
i n d i c a t o r u n i t .
See Figure 303.
(b) Connect the equipment as shown in Figure 105
(c) Adjust the signal generator to 200 kc with an
out p u t of 0. 5volt s a s i ndicate d o n V TVM no. 1 .
L
April 1965
Page 108
