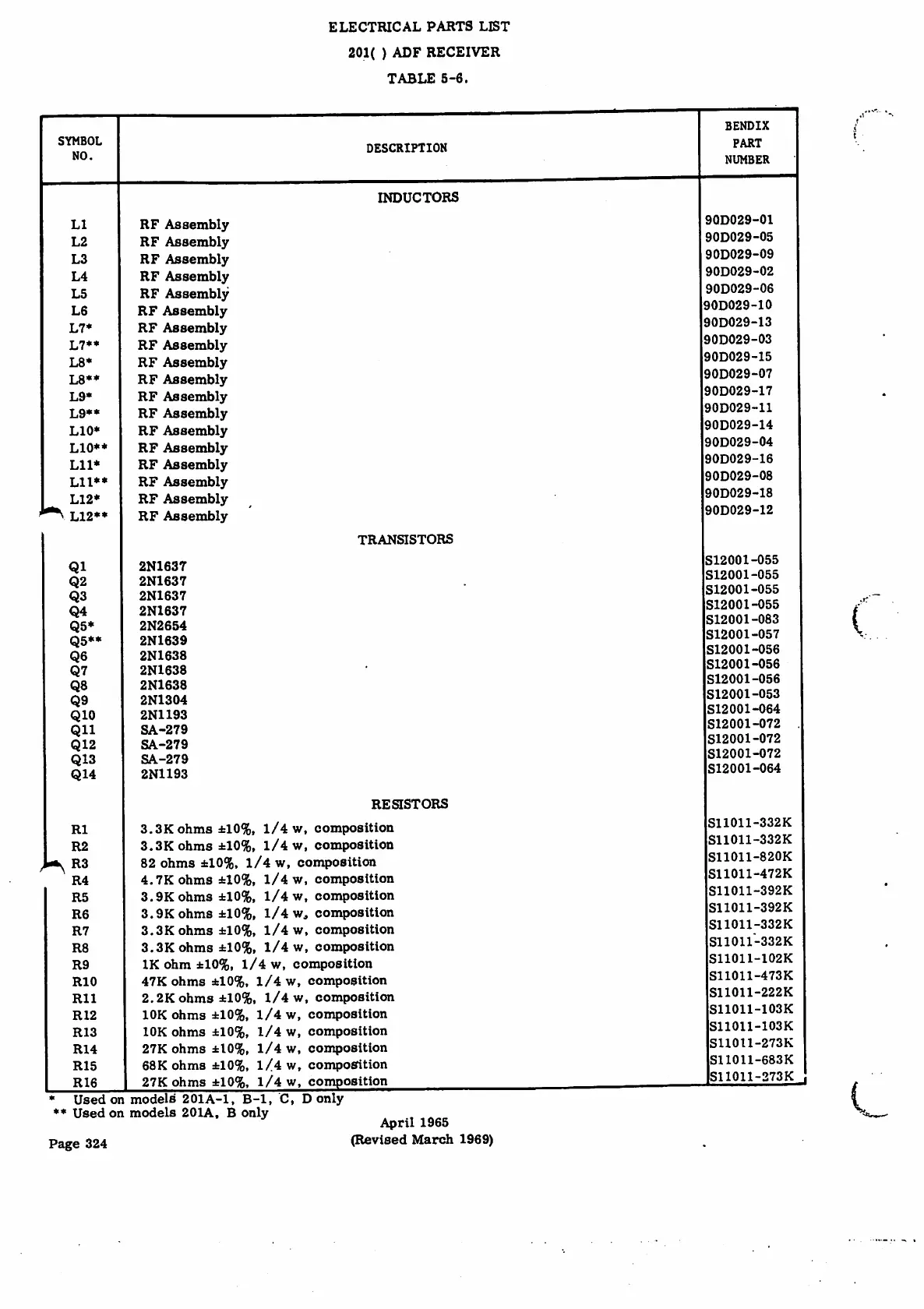

E L E C T R I C A L P A R T S L I S T
201( )ADF RECEIVER
T A B L E 5 - 6 .
BENDIX
PART
NUMBER
SYMBOL
DESCRIPTION
NO.
INDUCTORS
90D029-01
90D029-05
90D029-09
90D029-02
90D029-06
90D029-10
90D029-13
90D029-03
90D029-15
90D029-07
90D029-17
90D029-11
90D029-14
90D029-04
90D029-16
90D029-08
90D029-18
90D029-12
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
RF Assembly
LI
L2
L3
L4
L5
L6
L7*
L7**
L8*
L8«*
L9*
L9**
LIO*
LIO**
Lll*
Lll**
L12*
L12**
TRANSISTORS
S12001-055
S12001-055
S12001-055
S12001-055
S12001-083
S12001-057
S12001-056
S12001-056
S12001-056
S12001-053
S12001-064
S12001-072
S12001-072
S12001-072
S12001-064
Q1
2N1637
2N1637
2N1637
2N1637
2N2654
2N1639
2N1638
2N1638
2N1638
2N1304
2N1193
SA-279
SA-279
SA-279
2N1193
Q2
Q3
Q4
Q5*
Q5
*●
Q6
Q7
Q8
Q9
QIO
Qll
Q12
Q13
Q14
RESISTORS
S11011-332K
S11011-332K
S11011-820K
SU011-472K
S11011-392K
S11011-392K
S11011-332K
S11011-332K
S11011-102K
S11011-473K
S11011-222K
S11011-103K
S11011-103K
S110U-273K
S11011-683K
S11011-273K
3.3K oh m s ±10%, l/4w, composition
3.3Kohms ±10%, 1/4 w, composition
82 ohms ±10%, 1/4 w, composition
4.7K ohms ±10%, 1/4 w, composition
3.9K ohms ±10%, 1/4 w, composition
3.9Kohms ±10%, 1/4 w, composition
3.3Kohms ±10%, 1/4 w, composition
3.3K ohms ±10%, 1/4 w, composition
IK ohm ±10%, 1/4 w, composition
4 7 K o h m s ± 1 0 % , 1 / 4 w , c o m p o s i t i o n
2.2K ohms ±10%, 1/4 w, composition
lOK ohms ±10%, 1/4 w, composition
lOK ohms ±10%, 1/4 w, composition
27K ohms ±10%, 1/4 w, composition
68K ohms ±10%, l/4 w, composition
27K ohms ±10%, 1/4 w, composition
R1
R2
R3
R4
R5
R6
R7
R8
R9
RIO
Rll
R12
R13
R14
R15
R16
* U s e d o n m o d e l s 2 0 1 A - 1 , B - 1 , C , D o n l y
U s e d o n m o d e l s 2 0 1 A , B o n l y
**
April 1965
(Revised March 1969)
Page 324
