TRANSMITTING
STATION
00*)
MODEL 2321E
LOOP ANTENNA
(TWO LOOPS WOUND ON
F L A T F E R R f T E C O R E )
DIRECTION
OF FLIGHT
ROTOR
COIL
STATOR
COILS
SERVO
MOTOR
R-F RESOLVER
SERVO
AMPLIFIER
DIRECTION
INDICATOfl
INPUT
RECEIVER
OUTPUT
MODEL 551A
SERVO AMPLIFIER*INDICATOR
MODEL 201 C/D
ADF RECEIVER

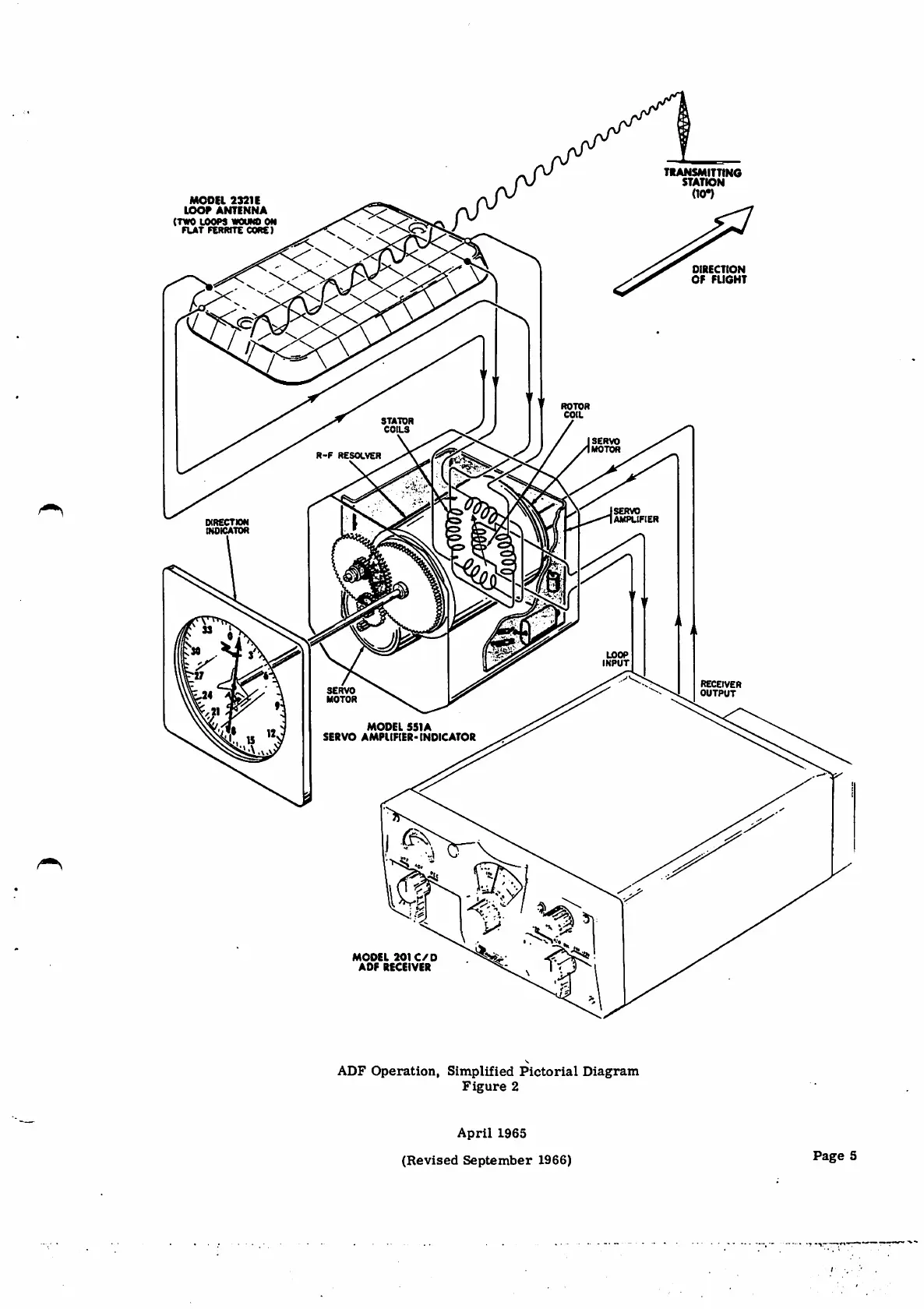

ADF Operation, Simplified Pictorial Diagram
Figure 2
April 1965
(R e v i se d Se p t e m b e r 1 9 6 6 )
Page 5
/
