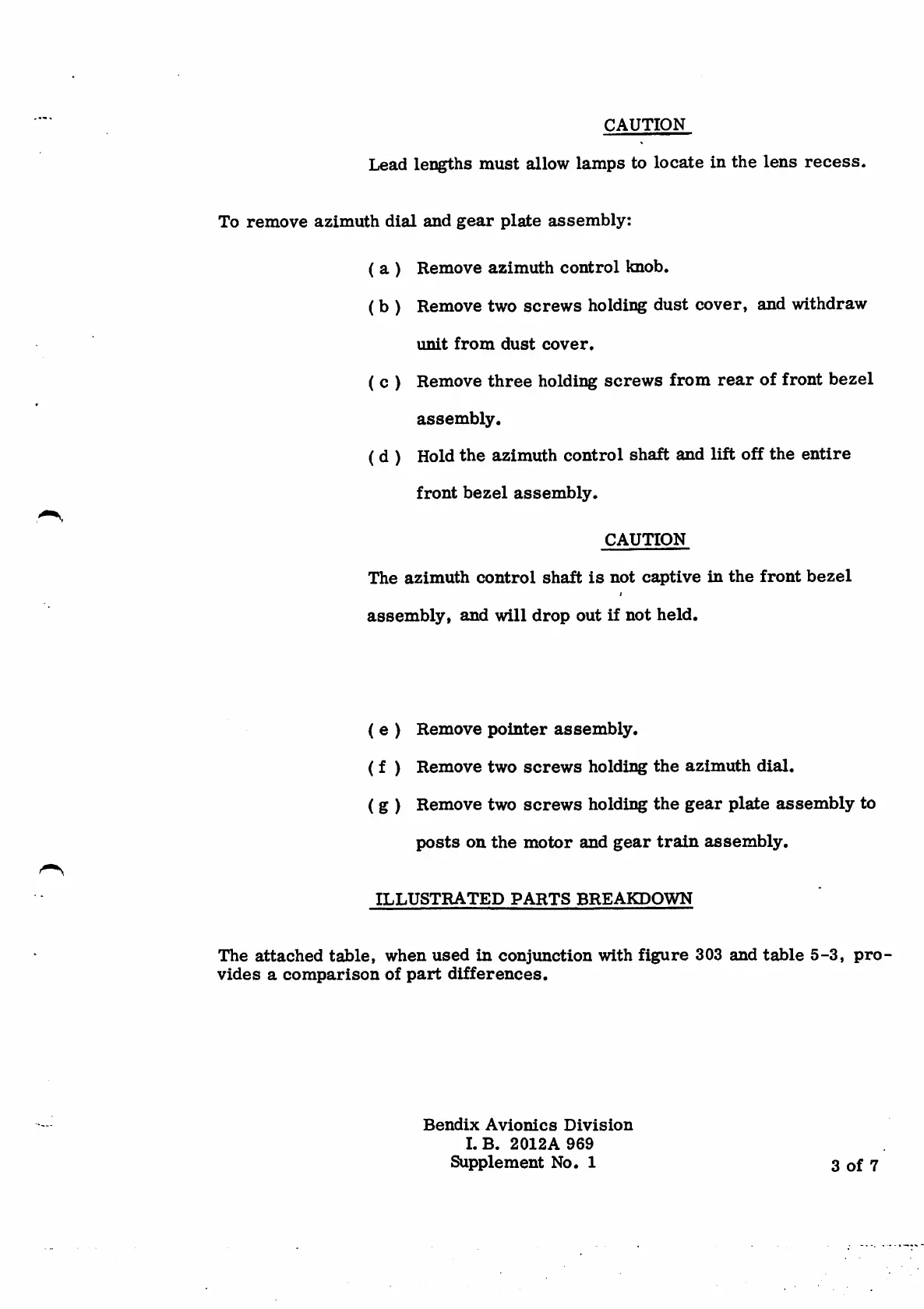

CAUTION
Lead lengths must allow lamps to locate in the lens recess.
To remove azimuth dial and gear plate assembly:
Remove azimuth control knob.
(a)
Remove two screws holding dust cover, and withdraw
(b)
u n i t f r o m d u s t c o v e r .
Remove three holding screws from rear of front bezel
( c )
assembly.
Hold the azimuth control shaft and lift off the entire
(d)
front bezel assembly.
CAUTION
The azimuth control shaft is not captive in the front bezel
assembly, and will drop out if not held.
( e ) R e m o v e p o i n t e r a s s e m b l y.
(f)Remove two screws holding the azimuth dial.
(g)Remove two screws holding the gear plate assembly to
posts on the motor and gear train assembly.
I L L U S T R A T E D P A R T S B R E A K D O W N
The attached table, when used in conjunction with figure 303 and table 5-3, pro¬
vides acomparison of part differences.
B e n d i x A v i o n i c s D i v i s i o n
I. B. 2012A 969
Supplement No. 1
3of 7
