Autostacker™ Parking Lift 27 P/N 5900002 — Rev. D — August 2019
Connect the Hydraulic Hoses
Hydraulic Hoses provide hydraulic power to the Hydraulic Cylinders, which is used to raise and lower
the lift.
If you have a Multi-Lift setup, this procedure will be different for you
; see Multi-
Autostacker towards the end of this manual for modified instructions.
The Autostacker comes with two Hydraulic Hoses, of different lengths:
• Short Hydraulic Hose. Goes from the Power Unit to the Hydraulic Cylinder
closest
to
the
Console.
• Long Hydraulic Hose. Goes from the Power Unit to the Hydraulic Cylinder
furthest
from
the
Console.
Both Hydraulic Hoses are routed through the Bottom Connector Tube, which is hollow.

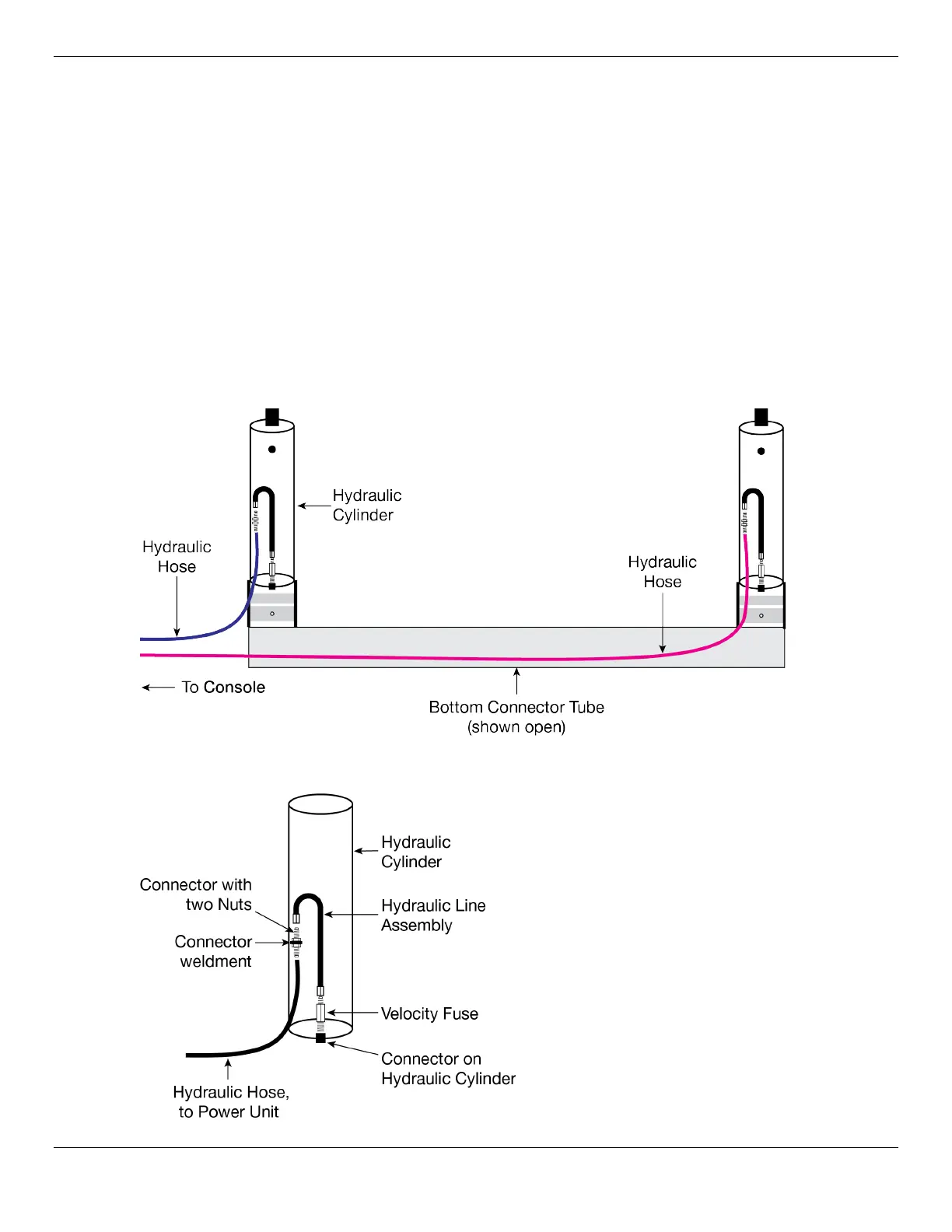

The following drawing shows how the Hydraulic Hoses are routed to the Hydraulic Cylinders.
The following drawing is a close-up of the connections to make to the Hydraulic Cylinders.
