BendPak HDS-14 - Power Unit Location

11

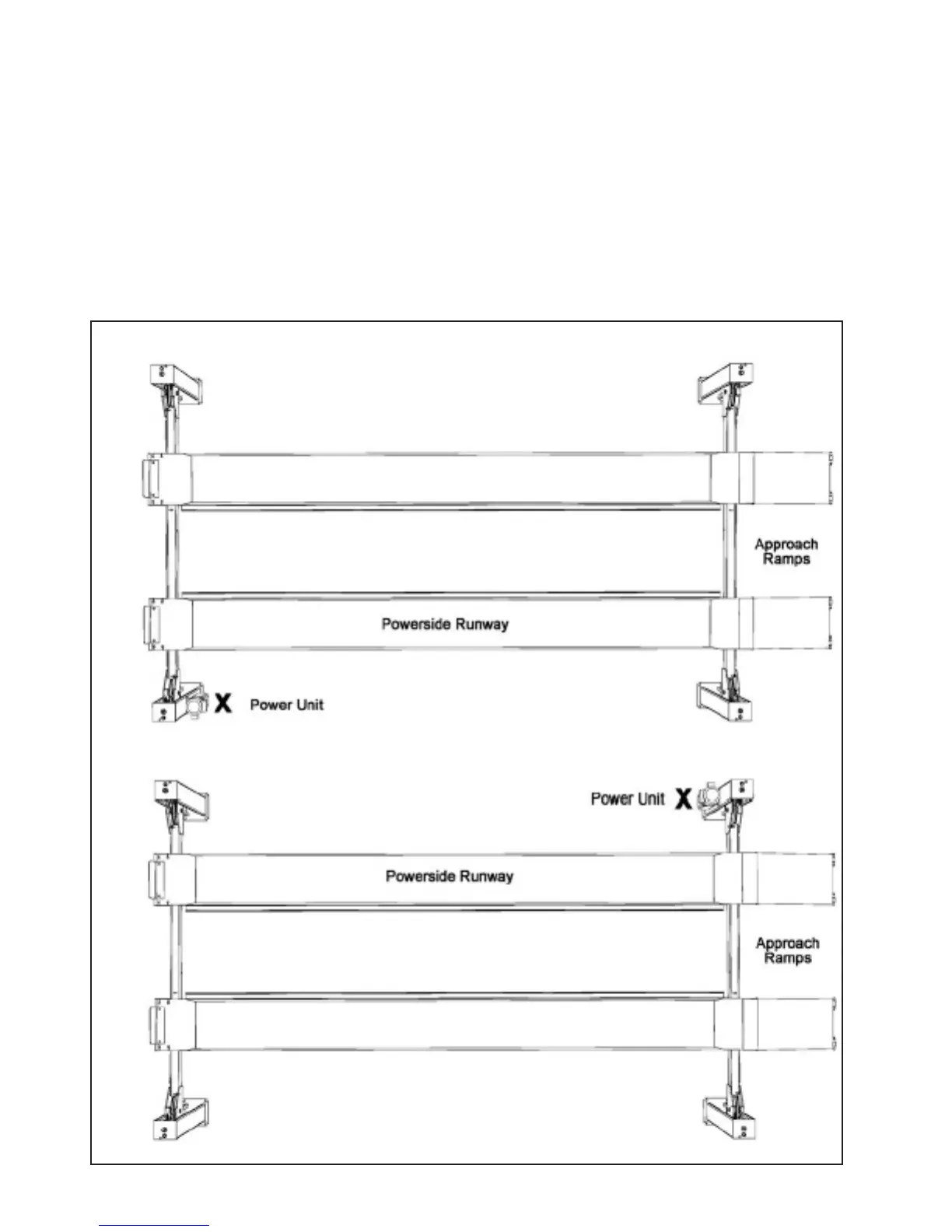

The Power Unit can be located at either “X”
location shown below. It is important to lo-
cate the POWERSIDE runway (with cylinder)
on the SAME SIDE as the Power Unit loca-
tion. Each Runway MUST be installed with
the Utility Rails to the inside.
For the remainder of this instruction we will
illustrate the Power Unit mounted at the
DRIVER-SIDE (LEFT) FRONT column - TOP
ILLUSTRATION. For Power Unit at right rear,
rotate lift 180° leaving approach Ramps and
Front Tire Stops in original position.
IMPORTANT NOTE !
POWER UNIT LOCATION
