BendPak HDS-14 - Page 52

52

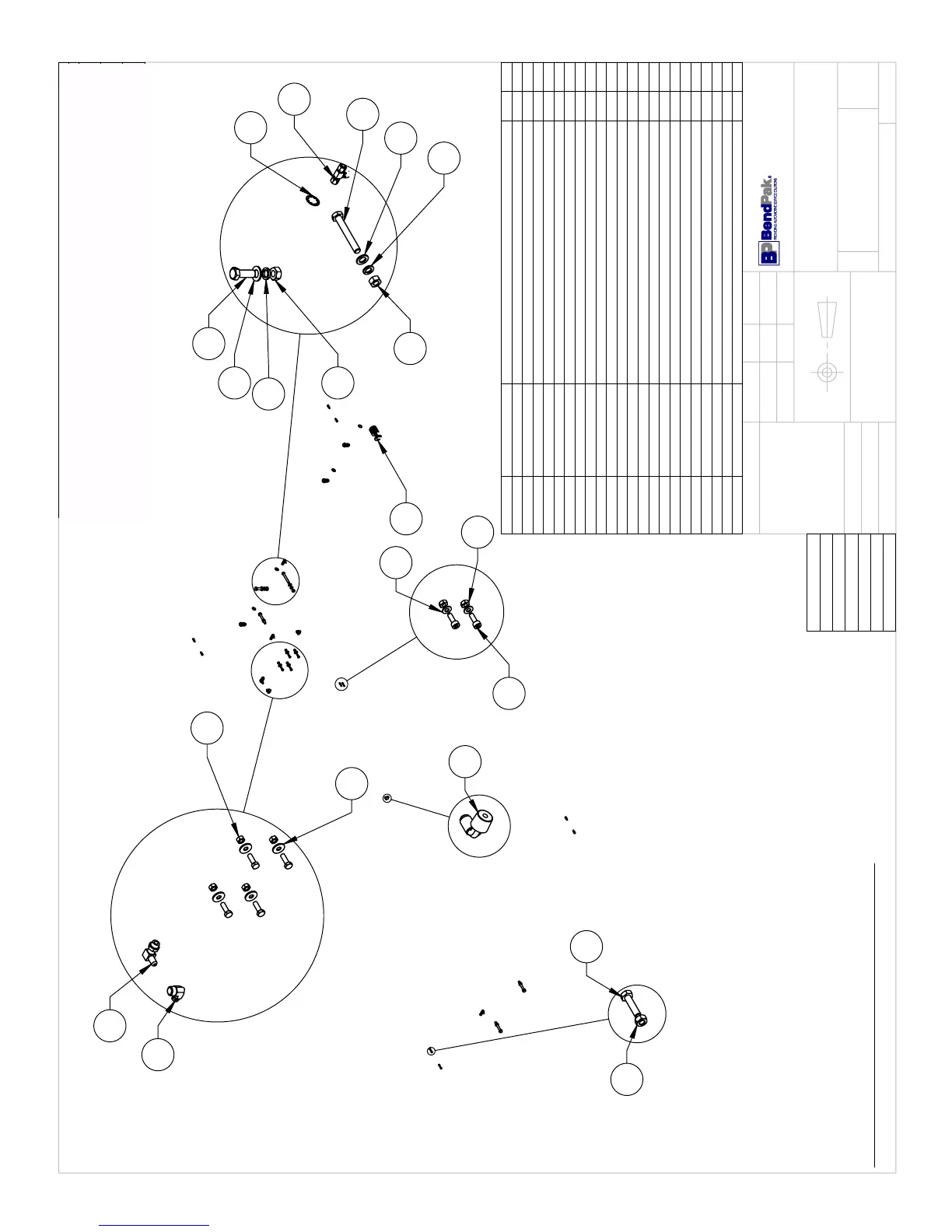

DIMENSIONS ARE IN MM
☺
20
DETAIL A
SCALE 1 : 4
2
1
DETAIL B
SCALE 1 : 4
18
17
19
DETAIL C
SCALE 1 : 8
12
13
4
3
DETAIL D
SCALE 1 : 8
9
7
8
6
14
16
15
21
22
11
DETAIL E
SCALE 1 : 4
10
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
C-001
ADDED (20) 5545535
UPDATED NEXT ASSEMBLY
12/22/2009 02/22/2010
AC AC
00326 00333
D
D-001
ADDED (4) 5545010 AND (4) 5545349
UPDATED NEXT ASSEMBLY
06/15/2010 06/07/2011
AC
TM
00366 00456
E
REPLACED 5550004 WITH 5550089, 5550489
WITH 5550395, UPDATED NEXT ASSEMBLIES
10/29/2013
TM
00593
NEXT ASSEMBLY
5250143 5250144 5250191 5250194 5250195
5250196
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5530756
HHB M6 x 1 x 25
8
-
2 5535357
NUT M6 x 1.0 NL
8
-
3 5535001
NUT M8 x 1.25 NL
4
-
4 5545340
WASHER M8 x24 FLAT
4
-
5 5530010
HHB M8 x 1.25 x 25
4
B
6 5530009
HHB M12 x 1.75 x 90 CL8.8
4
-
7 5545201
WASHER, M12 SPRING LOCK
4
-
8 5545347
WASHER, M12 FLAT WASHER
4
-
9 5535354
NUT M12 x1.75
4
-
10 5550106
FTG ELB -04 JIC-06 NPT
1
-
11 5550395
FTG TEE -04 COMP x -04 COMP x -04 COMP
3
-
12 5550089
FTG ELB -04 COMP x -06 NPT
2
-
13 5550008
FTG ELB -04 JIC -06L ORB
1
-
14 5505032
ROTOR CLIP 18mm SS
4
-
15 5530107
HHB M14 x 2.0 x 40
4
-
16 5535107
NUT M14 x 2.0
4
-
17 5545009
WASHER, Ø4.3 x Ø9mm x 0.8mm
2
-
18 5530008
SHCS M4 x 0.7mm x 12mm
2
-
19 5535010
Nut, M4 X 0.7
2
-
20 5545535
C WASHER SHIM FOR LIFTS
20
-
21 5545010
WASHER M14 x 28 FLAT
4
-
22 5545349
WASHER M14 x 22 SL
4
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174094
PARTS BAG
HD/HDS-14 SERIES
---
---
08/08/2008
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
