34
DIMENSIONS ARE IN MM
☺
10
9
2
3
1
7
DETAIL A
SCALE 1 : 6
8
6
DETAIL B
SCALE 1 : 10
11
5
4
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
03/23/2009
AC
00272
B
UPDATED BOM REVISION, ADDED "6000X" TO TITLE
05/28/2009
TM
00280
C
UPDATED BOM REVISION
08/28/2009
TM
00295
NEXT ASSEMBLY
5260302
5260303
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5174500
PARTS BAG PL-6000/6000X
1
B
2 5570018
HYD. HOSE ASSY. Ø6.4 x 3556mm
1
A
3 5595363
PL-6000 WIRE ROPE CONDUIT ASSEMBLY
1
A
4 5715003
POWER UNIT VIBRATION DAMPENER
1
B
5 5746180
PL-6000 SAFETY RELEASE HANDLE
1
A
6 5600029
PL-6000/6000X SAFETY LATCH WELDMENT
1
E
7 5700225
SAFETY COVER
1
B
8 5505113
SAFETY CLEVIS PIN
1
B
9 5600016
TIRE STOP BAR WELDMENT
2
B
10 5730002
TIRE STOP PLATE
2
B
11 5715001
PLASTIC SAFETY HANDLE COVER
1
B
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5250250

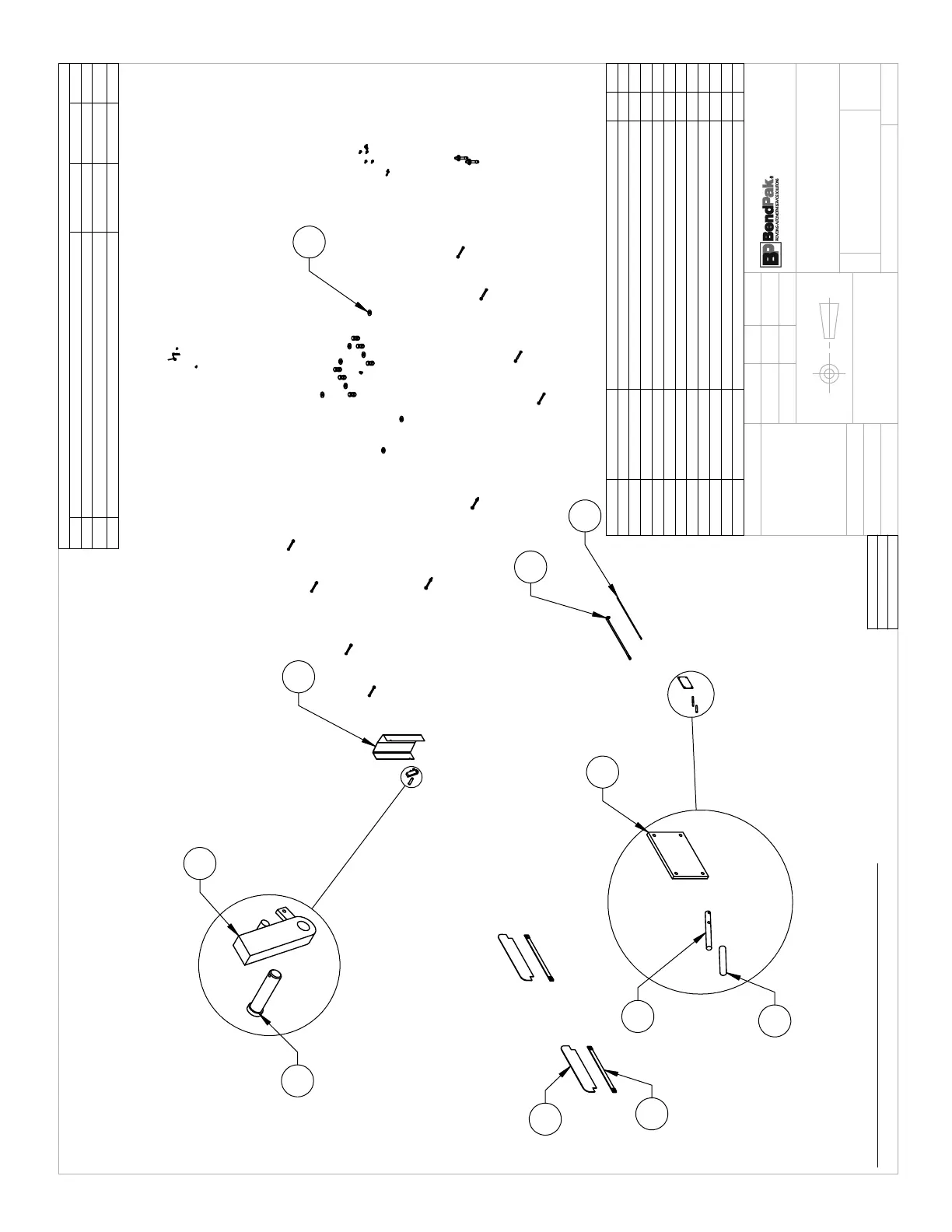

PARTS BOX PL-6000/6000X
---
---
03/21/2009
DO NOT SCALE DRAWING
1:40
SCALE:
THIRD ANGLE PROJECTION
TM
09/02/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
