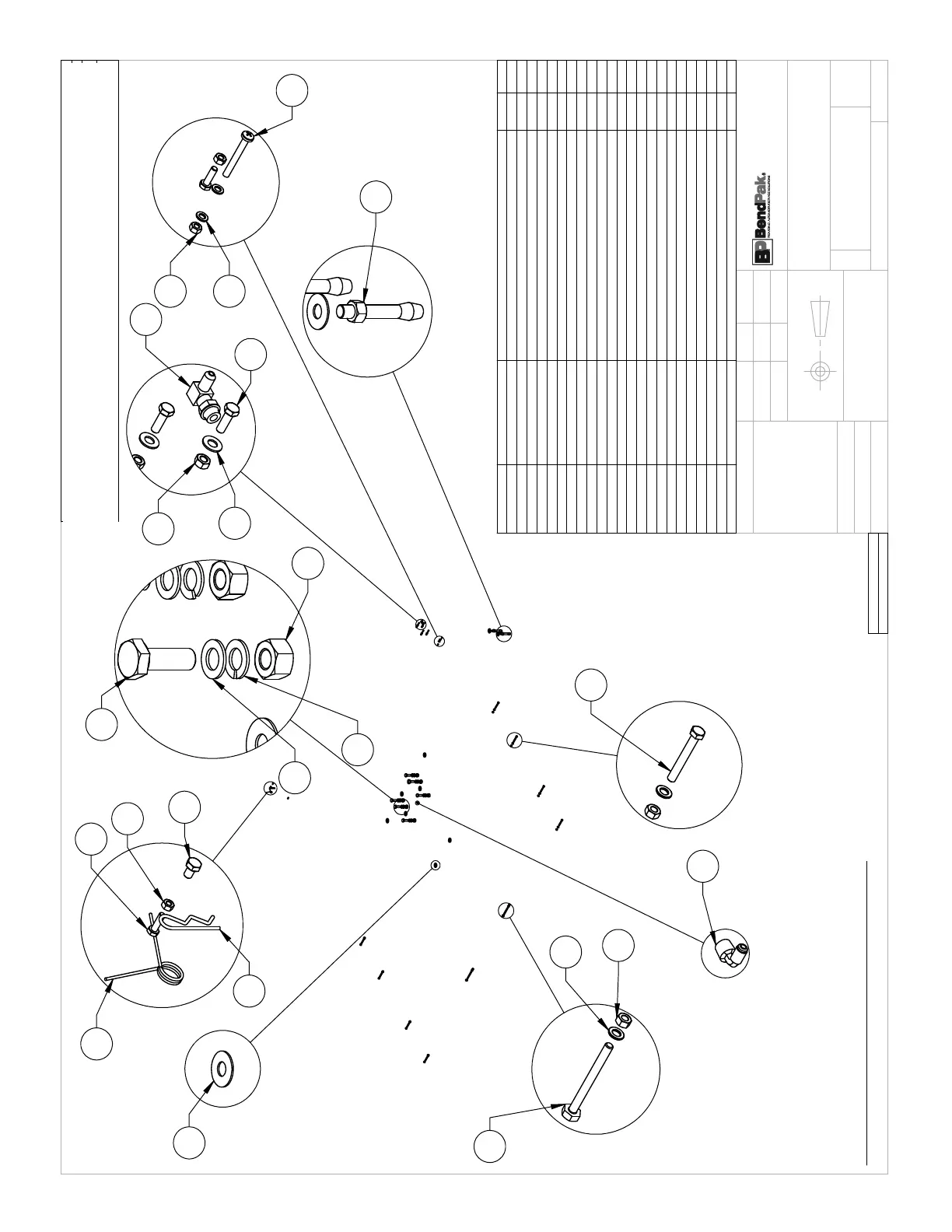

BendPak PL-6000 - Page 35

35
DIMENSIONS ARE IN MM
☺
DETAIL A
SCALE 1 : 4
14
15
9
8
DETAIL B
SCALE 1 : 4
18
17
10
23
22
DETAIL C
SCALE 1 : 6
11
16
12
DETAIL D
SCALE 1 : 6
5
DETAIL E
SCALE 1 : 6
13
DETAIL F
SCALE 1 : 6
2
DETAIL G
SCALE 1 : 4
3
6
1
4
DETAIL H
SCALE 1 : 4
7
DETAIL J
SCALE 1 : 4
20 19
21
REVISION
REV.
DESCRIPTION
DATE
EDITED BY
ECO #
A
PRODUCTION RELEASE
03/23/2009
AC
00272
B
ADDED "6000X" TO TITLE
REMOVED 5530451
05/28/2009
TM
00280
NEXT ASSEMBLY
5250250
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
REV
1 5545022
WASHER M20 x 37 SL
6
-
2 5545170
WASHER Ø3/4" FLAT
10
-
3 5530080
HHB M20 x 2.5 x 60L GR8/CL10.9
6
-
4 5535017
NUT M20 x 2.5 NL
6
-
5 5530455
AB 3/4" x 4 - 3/4" WEJIT
2
-
6 5545343
WASHER, M20 FLAT
6
-
7 5550106
FTG ELB -04 JIC-06 NPT
1
-
8 5550008
FTG ELB -04 JIC -06L ORB
1
-
9 5530010
HHB M8 x 1.25 x 25
4
-
10 5530025
HHB M8 x 1.25 x 12
2
-
11 5535012
NUT M12x1.75 NL
10
-
12 5545347
WASHER, M12 FLAT WASHER
10
-
13 5530009
HHB M12 x 1.75 x 90 CL10.9
8
-
14 5535001
NUT M8 x 1.25 NL
4
A
15 5545021
WASHER M8 x Ø20 FLAT
4
-
16 5530035
HHB M12 x 1.75 x 130
2
-
17 5535405
NUT M6 x 1.0 JN
2
-
18 5530093
HHB M6 x 1 x 20
2
-
19 5545005
M6 FLAT WASHER
2
-
20 5535112
NUT M6 x 1.0
1
-
21 5530056
BHPS M6 x 1 x 50mm
1
-
22 5505010
HAIR PIN #227, 3.17mm X Ø18mm
1
-
23 5540001
2.5 WIRE DIA., Ø25.5x150 LG.
1
C
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174500
PARTS BAG PL-6000/6000X
---
---
03/23/2009
DO NOT SCALE DRAWING
1:50
SCALE:
THIRD ANGLE PROJECTION
AC
06/08/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
