XPR-10 Series Two-Post Lifts 28 P/N 5900951 — Rev. D — May 2019
5.
Switching to the bottom of the Powerside Post
, remove the Shipping Plug from the
Hydraulic Line Connector on the
bottom
of the Hydraulic Cylinder (located at the bottom of the
Powerside Post).
You can turn or move the Hydraulic Cylinder if necessary.
You might want to have a rag nearby in case some fluid leaks out of the Hydraulic Line Connector
when you remove the Shipping Plug.

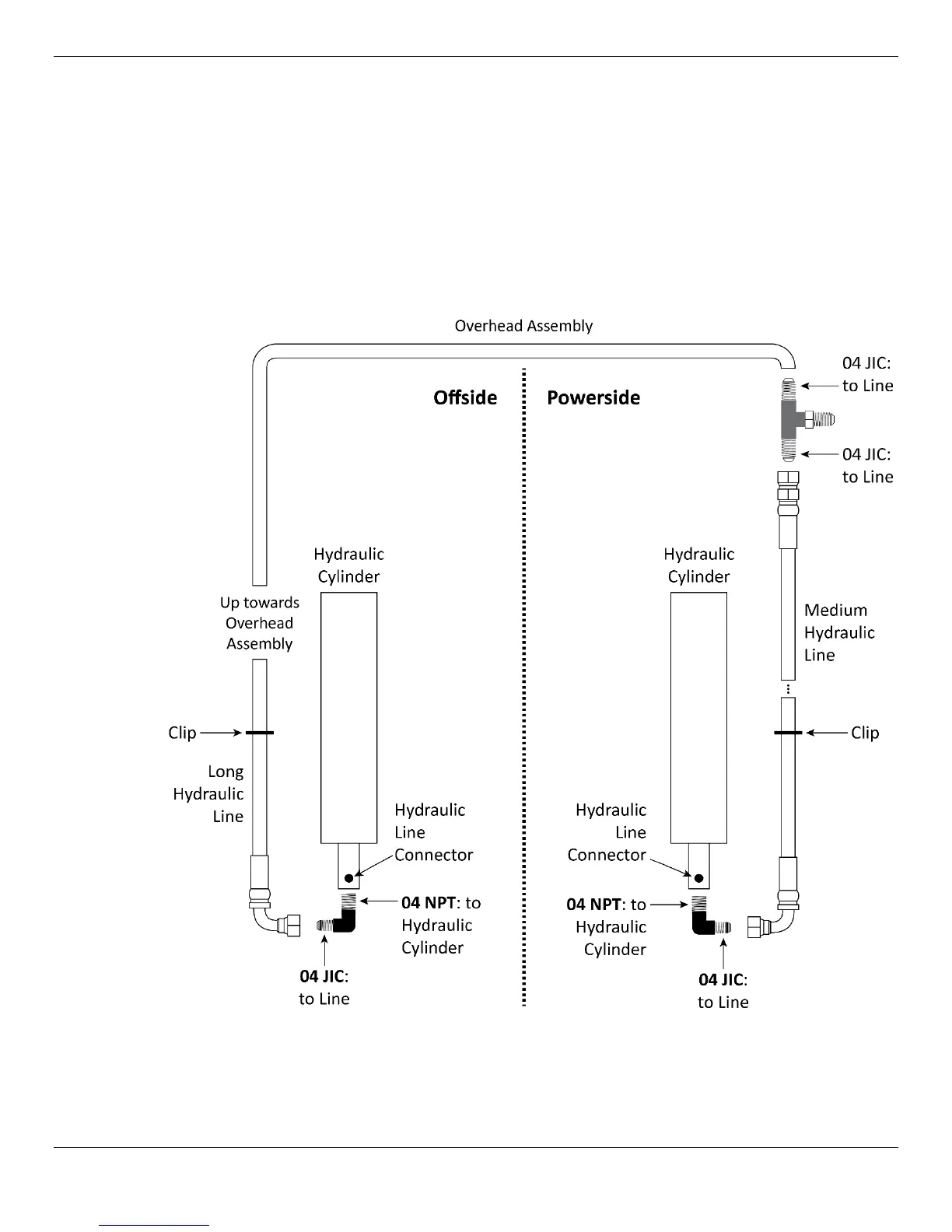

6. Connect one of the two interchangeable Elbow Hydraulic Fittings (NPT to JIC) to the Hydraulic Line
Connector at the bottom of Hydraulic Cylinder on the Powerside Post.
Point the JIC connector towards the side of the Post with the Clips.
Not necessarily to scale. Not all components shown. Some components shown exaggerated.
To Next Page
