4. Each arm restraint gear can be oriented in a Left
or Right conguration on the arms. Each arm and arm
restraint gear must be positioned in the proper location in
the lift head. (See Fig. 12.4 & 12.5)
5. Place each Gear Ring against the Lift Head Pin and
align the holes in the Gear Ring with the threaded holes
in the Arm Ears. Ensure that the teeth on the Gear Ring
mesh smoothly with the teeth on the gears of the Lift
Head. (See Fig. 12.6)
NOTE:
LEFT AND RIGHT ARE DETERMINED WHEN FACING
THE INSIDE. OPEN SIDE OF THE LIFT POST.
THE ARM RESTRAINT GEARS MUST BE
POSITIONED AND ADJUSTED PROPERLY.
CONFIRMATION OF PROPER GEAR
ENGAGEMENT MUST BE MADE PRIOR TO THE
OPERATION OF THE LIFT. PERIODIC INSPECTION
AND ADJUSTMENT IS REQUIRED.
FAILURE TO INSPECT AND ADJUST THE ARM
RESTRAINT GEARS ON ALL FOUR ARMS PROPERLY
CAN RESULT IN DAMAGE TO THE VEHICLE OR
INJURY AND/OR DEATH.

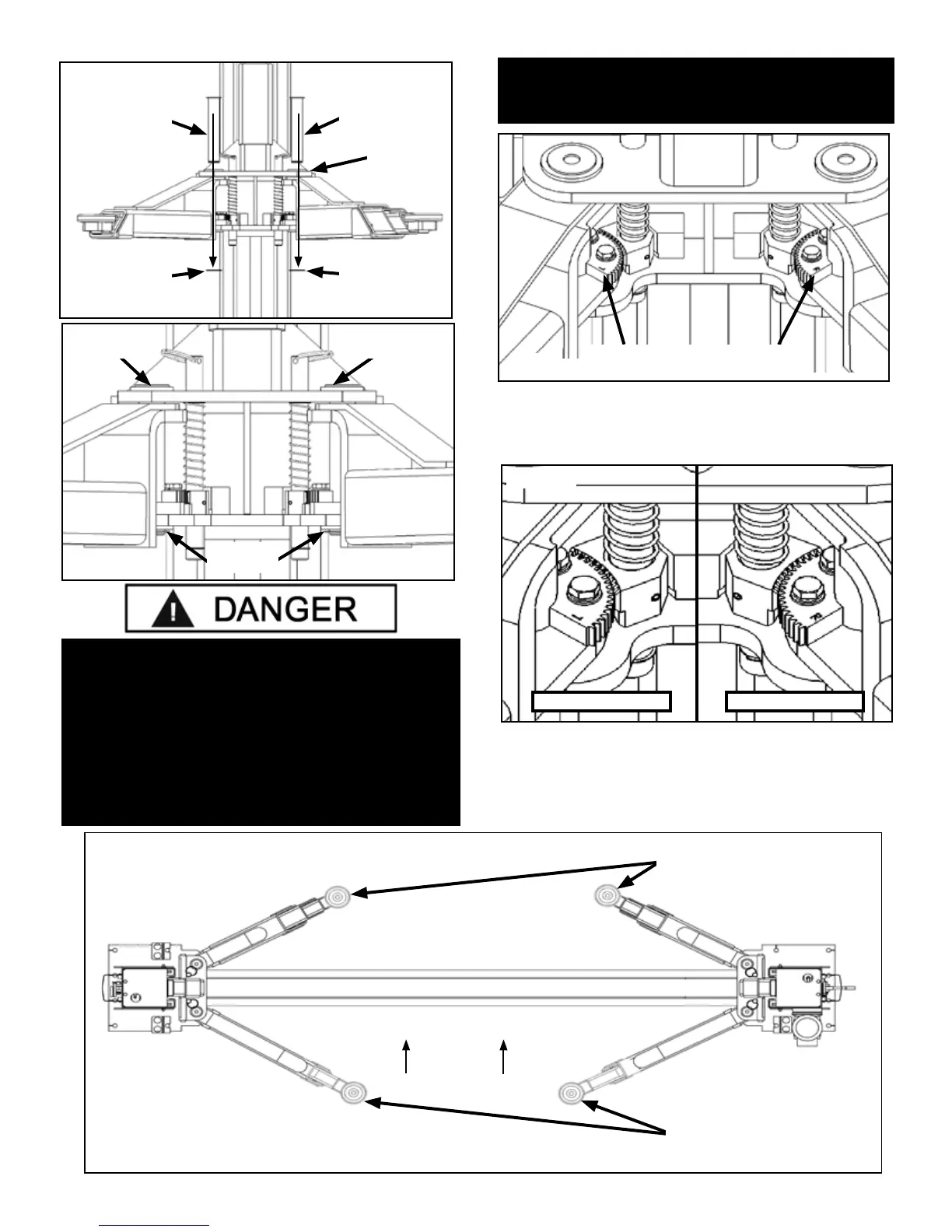

Fig. 12.4
LEFT RIGHT
Lift Head
Pin
Lift Head
Pin
Snap
Ring
Snap
Ring
Lift Head
Fig. 12.1
Fig. 12.2
Lift Head
Pin
Lift Head
Pin
Snap
Ring
NOTE: Arm gears rings have
Left and Right orientations
Fig. 12.5
Approach
XPR-9S: Medium Arm
Assembly
XPR-9TS: Triple Telescoping
Arm Assembly
XPR-9S/TS: Triple Telescoping
Arm Assembly
Fig 12.3
To Next Page
