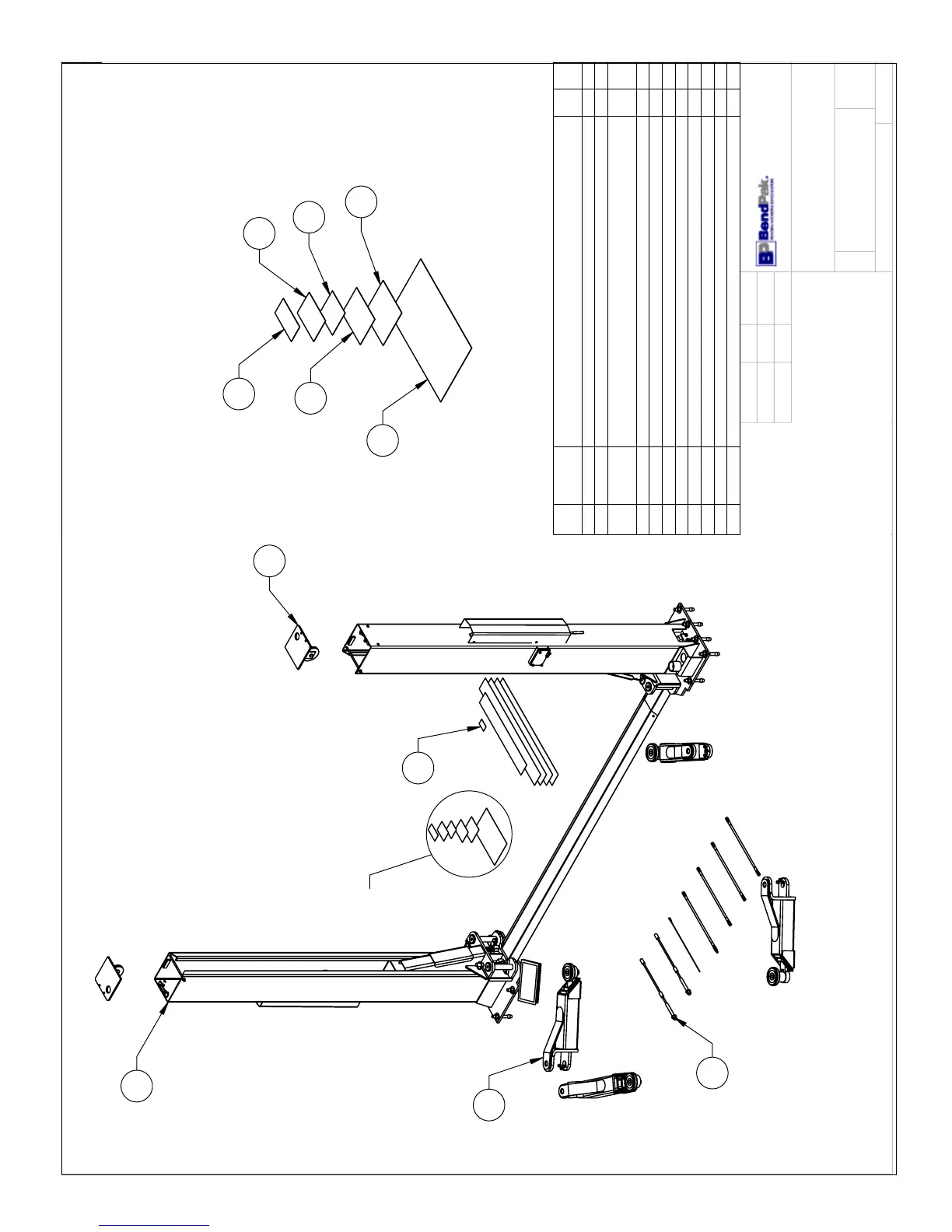

BendPak XPR-9S - Part Number Lists

48
DIMENSIONS ARE IN MM
☺
A
1
3
4
2
6
DETAIL A
SCALE 1 : 12
10
9
11
7
8
5
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5245225
XPR-9S LIFT SUPERSTRUCTURE
1
P
2 5250037
XPR-9S PARTS BOX
1
A
3 5215287
XPR-9S/9DS/10S LOW PROFILE TRIPLE TELESCOPING ARM
ASSEMBLY
4
C
4 5215226
XPR-9/9D TOP EQUALIZER PULLEY PLATE ASSEMBLY
2
J
5 5905109
WARNING ALI/WL 101
1
--
6 5905131
2 POST DECAL KIT, LESS ALI
1
C
7 5905402
MAX CAP DANGER 9K
1
--
8 5905465
MANUFACTURER LABEL
1
--
9 5905650
MAX CAP NRTL DANGER 9K
1
--
10 5905940
PRODUCT DATA LABEL
1
--
11 5905950
2015_SERIAL_TAG-A-5905950
1
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5260445
12/15/2015
JM
00738
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
JM
5260553
XPR-9TS PRODUCTION
LIFT VER E
12/15/2015
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
CA
02/24/2016
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ALL LABELS TO BE APPLIED TO POSTS AFTER PAINTING.
2.
SEE ATTACHED LABEL PLACEMENT SHEET.
