BendPak XPR-9S - Page 50

50

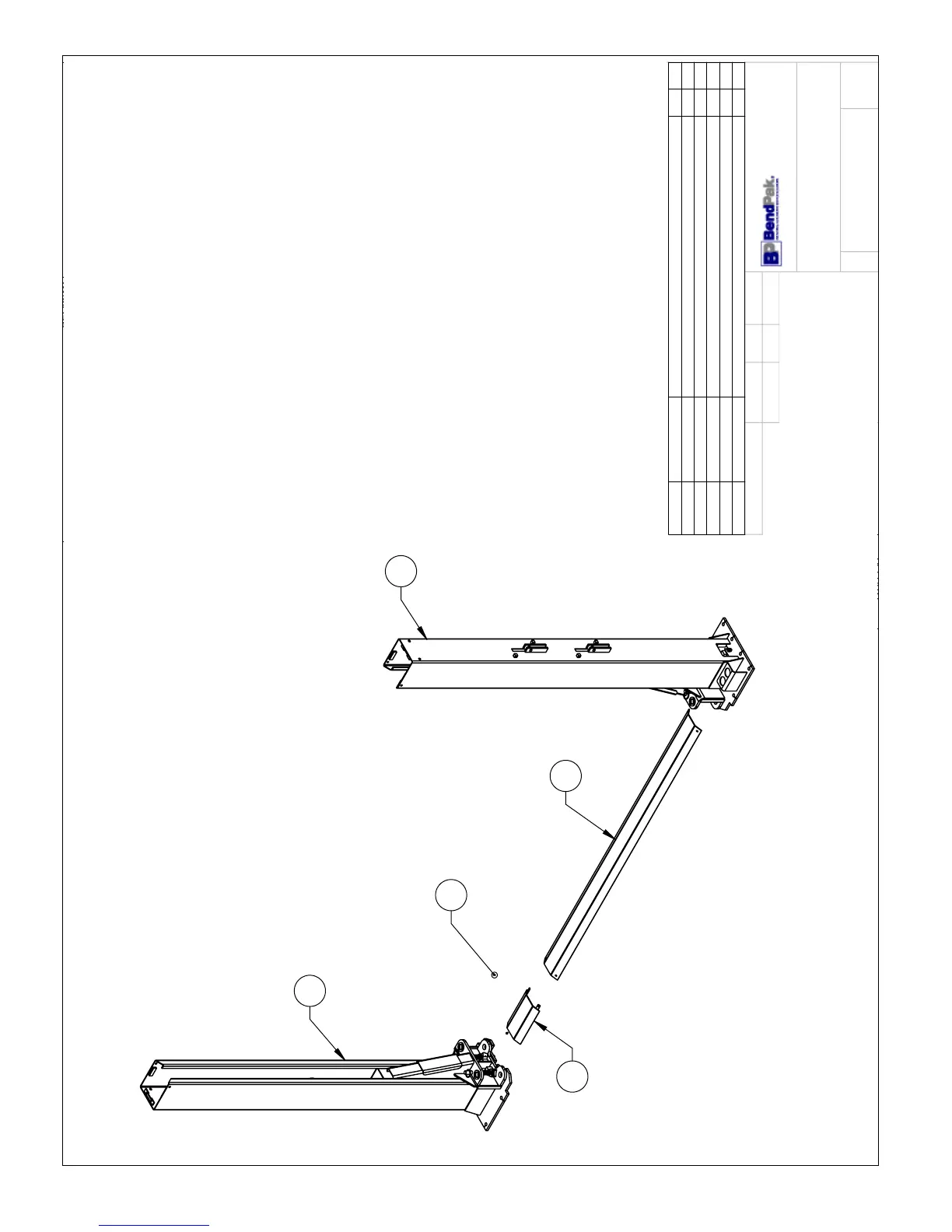

DIMENSIONS ARE IN MM
☺
1
3
4
2
5
NEXT ASSEMBLY
5260553
5260558 5260557
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1
5215391
XPR-9S OFF SIDE POST ASSEMBLY
1
P
2
5215392
XPR-9S POWER SIDE POST ASSEMBLY
1
P
3
5210018
XPR-9 GROUND PLATE
1
D
4
5600510
XPR-9 FLOORPLATE EXTENSION WELDMENT
1
A
5
5530079
BPHS M6 x1.0x10
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
M
UPDATED BOM REVISIONS
11/24/2014
TM
00673
N
UPDATED BOM REVISIONS
05/14/2015
TM
00689
P
UPDATED TITLE TO REFLECT WHERE USED
UPDATED NEXT ASSEMBLY AND BOM REVISION
11/03/2015
HG
00738
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
P
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245225
XPR-9S LIFT
SUPERSTRUCTURE
08/31/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
-- --
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
