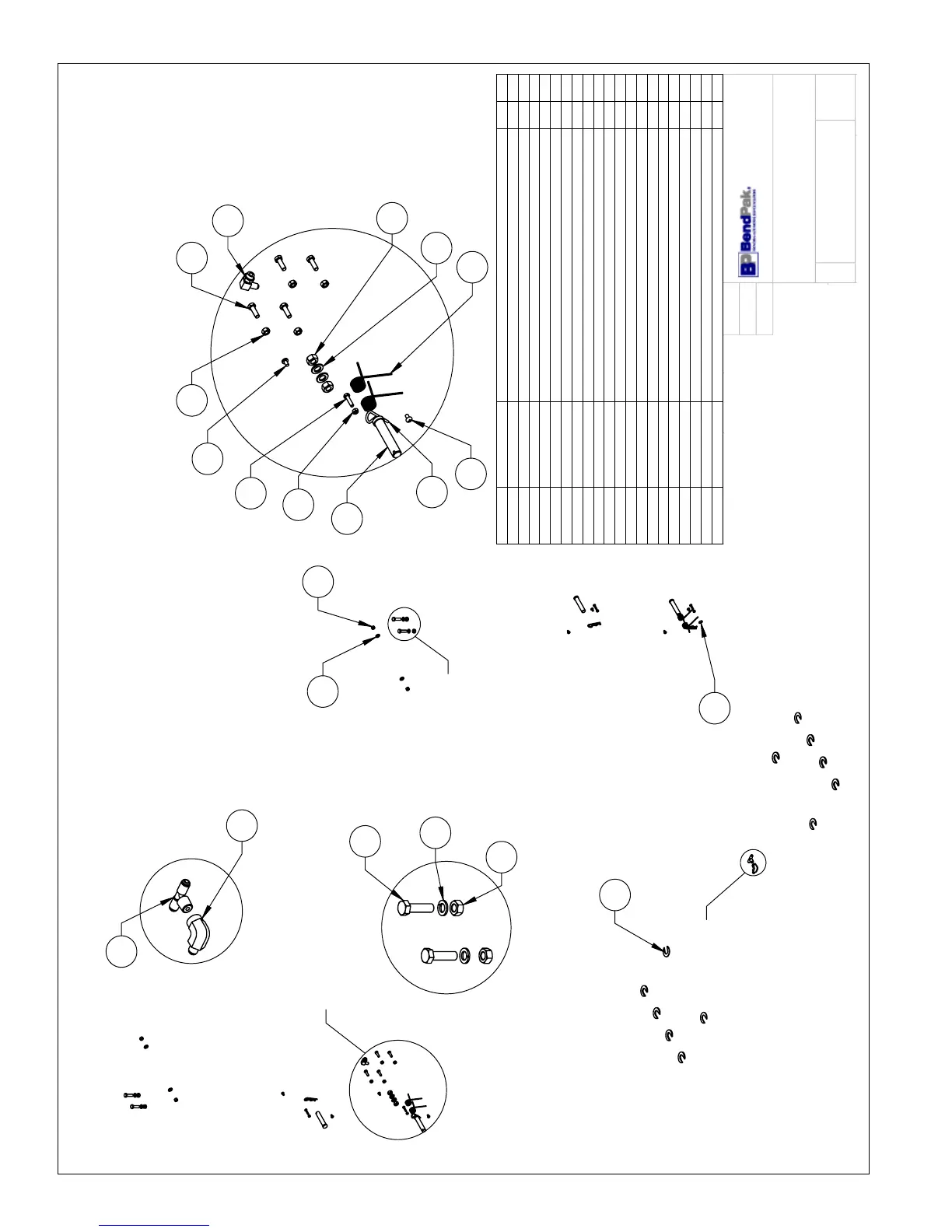

BendPak XPR-9S - Page 53

53
DIMENSIONS ARE IN MM
☺
A
B
C
17
19
20
18
DETAIL A
SCALE 1 : 5
2
1
DETAIL B
SCALE 1 : 8
16
9
7
6
10
9
11
15
8
13
12
14
DETAIL C
SCALE 1 : 5
5
4
3
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
G
ADDED (2) 5540075, REPLACED 5530314 WITH
5530261, REPLACED 5540001 WITH 5540075,
UPDATED BOM REVISION AND NEXT ASSEMBLIES
06/17/2013
TM
00605
H
UPDATED BOM REVISION
05/30/2014
TM
00649
J
J-001
REPLACED 5505113 WITH 5505001
UPDATED NEXT ASSEMBLY
10/06/2014 12/17/2015
TM TM
00663 00738
NEXT ASSEMBLY
5250037
ITEM NO.
PART NUMBER
DESCRIPTION
QTY
REV
1 5550153
FTG ELB -04 NPT F x -04 JIC
1
-
2 5550181
FTG TEE -04 JIC x -04 JIC x 04 NPT
1
-
3 5545200
WASHER M10 x Ø18 SL
4
-
4 5535998
NUT M10 x 1.5
4
-
5 5530760
HEX HEAD BOLT M10x1.25x35
4
-
6 5535001
NUT M8 x 1.25 NL
4
-
7 5550103
FTG ELB -04 JIC -06 ORB
1
-
8 5540075
2.5 WIRE DIA., Ø20.5 x 75 LG
4
A
9 5530261
PHPS M6 x 1 x 10
8
-
10 5530010
HHB M8 x 1.25 x 25
4
-
11 5545347
WASHER, M12 FLAT WASHER
2
-
12 5530756
HHB M6 x 1 x 25
4
-
13 5535357
NUT M6 x 1.0 NL
4
-
14 5505350 MODEL#211 HAIR PIN/ LARGE 4
-
15 5535354
NUT M12 x1.75
2
-
16 5505001
GP-7/PL-6000/XPR SERIES SAFETY CLEVIS PIN
4
A
17 5545535
C WASHER SHIM FOR LIFTS
20
-
18 5535013
NUT M10 x 1.5 NL
4
-
19 5545341
WASHER M10 x Ø20 FLAT
4
-
20 5505031
ROTOR CLIP 12mm SS
1
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
J
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174215
XPR-9 PARTS BAG
11/20/2009
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
CA
02/19/2016
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
