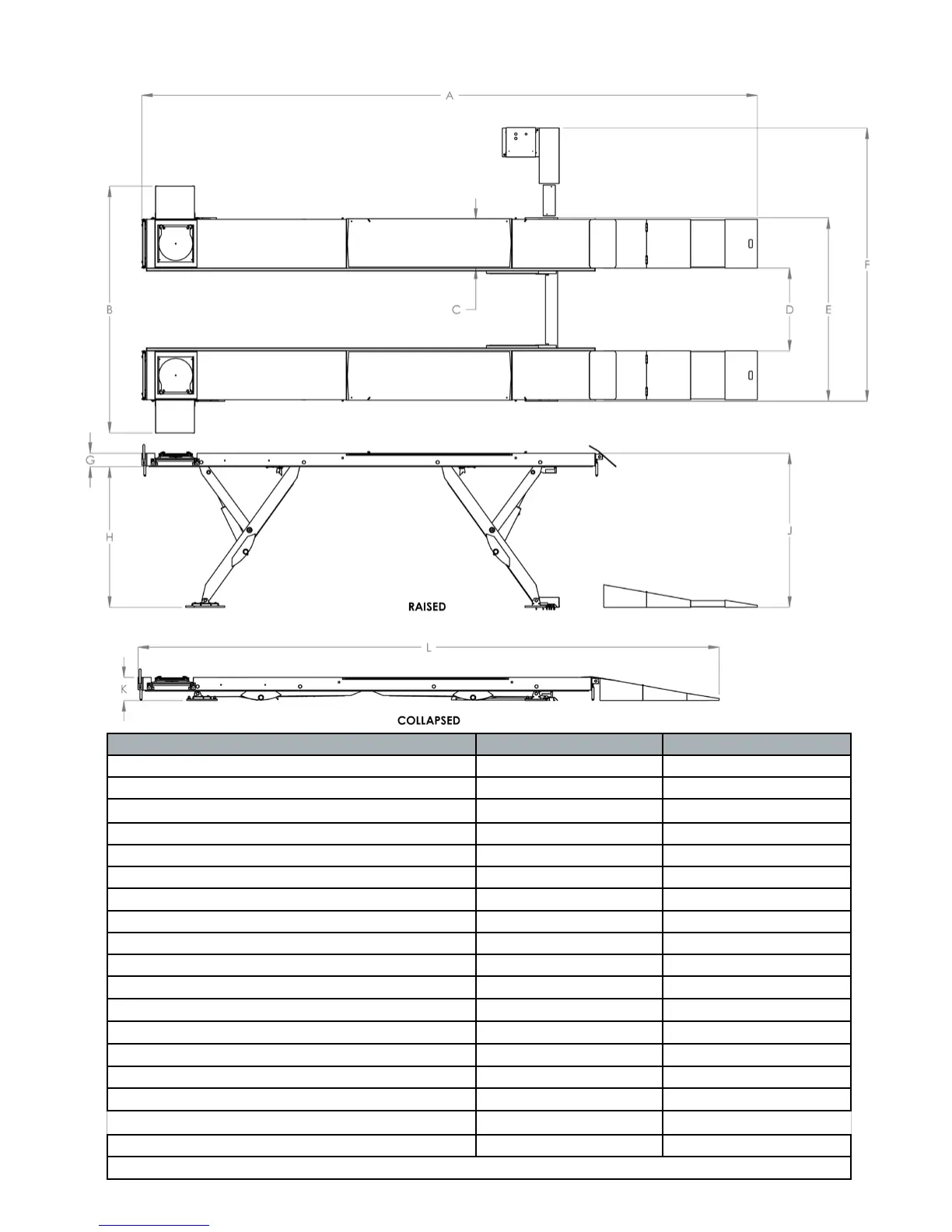

FLOOR PLAN / GENERAL SPECIFICATIONS
Measurement XR-12000 XR-12000A
A - Overall Extended Length 276.7” / 7029mm 300.3” / 7627mm
B - Width w/ Steps 120.4” / 3057mm 120.4” / 3057mm
C - Ramp Width 23.8” / 604mm 23.8” / 604mm
D - Between Ramps 40.5” / 1028mm 40.5” / 1028mm
E - Overall Width (Baseplate to Baseplate) 89.5” / 2272mm 89.5” / 2272mm
F - Overall Width w/ Console 133.3” / 3385mm 133.3” / 3385mm
G - Ramp Height 6.6” / 168mm 6.6” / 168mm
H - Underramp Height 68.5” / 1741mm 68.5” / 1741mm
J - Raised Height 75.2” / 1910mm 75.2” / 1910mm
K - Collapsed Height 11.75” / 298mm 11.75” / 298mm
L - Overall Collapsed Length 257.5” / 6547mm 283.5” / 7201mm
Minimum 4 Wheel Alignment Wheelbase* n/a 100” / 2540mm
Maximum 4 Wheel Alignment Wheelbase* n/a 165” / 4191mm
Maximum 2 Wheel Alignment Wheelbase* n/a 172” / 4369mm
Minimum General Wheelbase* 140” / 3556mm 140” / 3556mm
Maximum General Wheelbase* 178” / 4521mm 178” / 4521mm
Standard Motor ** 220 VAC / 50/60Hz 1 Ph 220 VAC / 50/60Hz 1 Ph
Maximum Operating Pressure 2800 PSI 2800 PSI
(*) May vary depending on wheel size (**) Special Voltages Available upon Request.
