BendPak XR-12000 User Manual

38

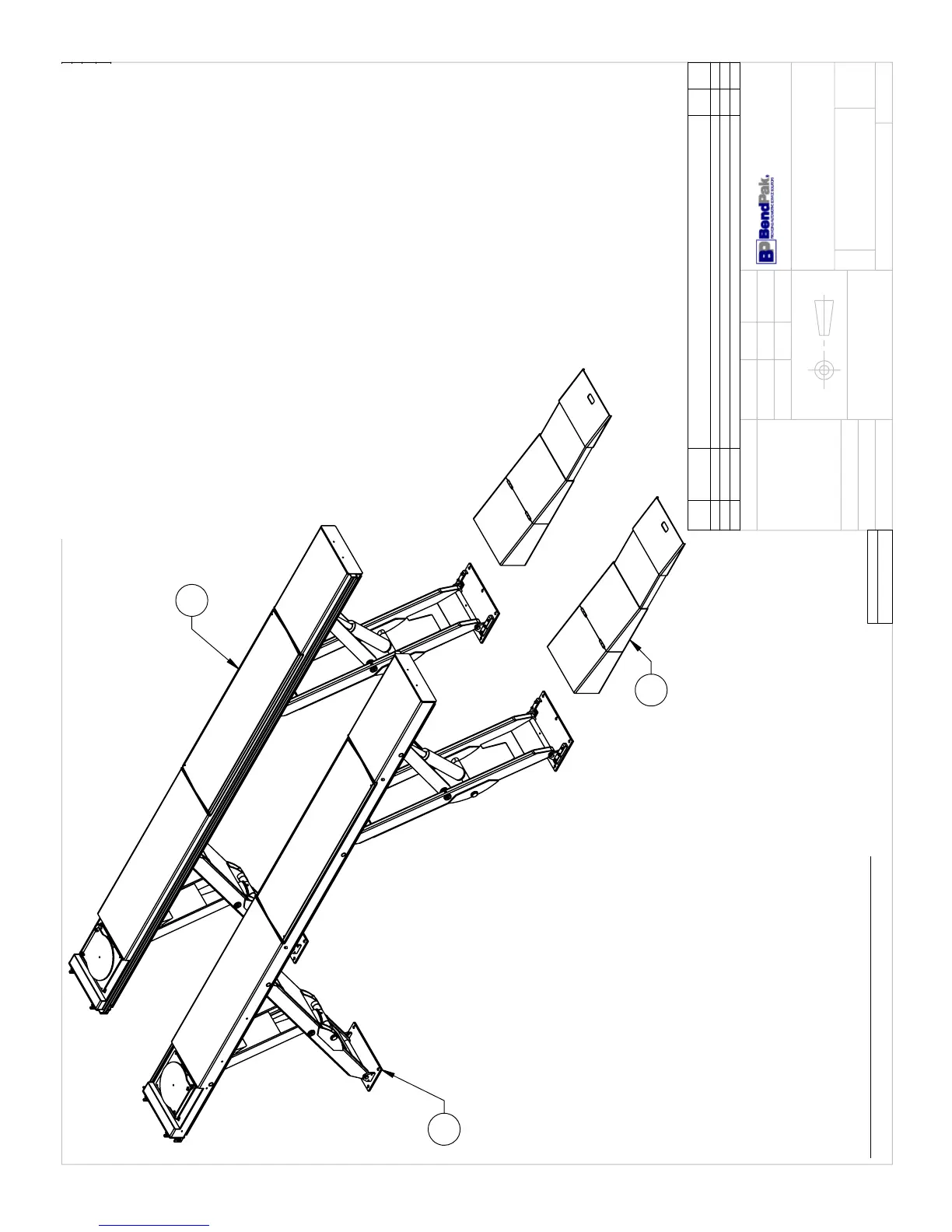

DIMENSIONS ARE IN MM
☺
2
1
3
NEXT ASSEMBLY
5260101
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY
REV
1
5215581
XR-12000A COMPLETE RIGHT RAMP ASSEMBLY
1
B
2
5215582
XR-12000A COMPLETE LEFT RAMP ASSEMBLY
1
B
3
5600438
XR-12 SERIES DRIVE UP RAMP WELDMENT
2
A
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5245148
01/15/2013
TM
00570
B
UPDATED BOM REVISIONS
03/08/2013
TM
00588
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245376
XR-12000A LIFT
SUPERSTRUCTURE
---
---
01/15/2013
DO NOT SCALE DRAWING
1:38
SCALE:
THIRD ANGLE PROJECTION
MM
03/12/2013
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
