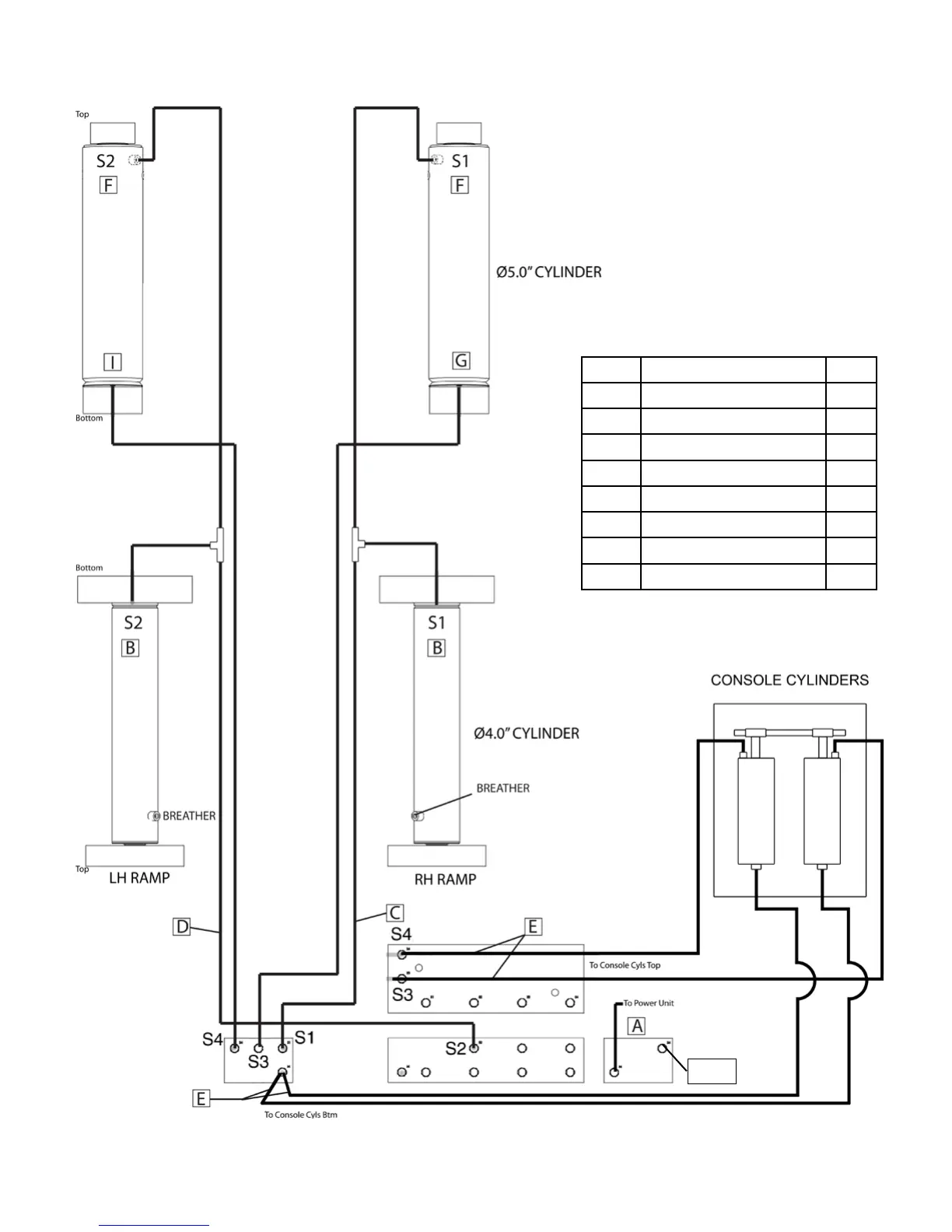

HYDRAULIC HOSE ROUTING DIAGRAM
Hose Length Qty
A 400mm / 15 3/4” 1
B 1,956mm / 77” 2
C 4,919mm / 193 1/2” 1
D 6,043mm / 238” 1
E 470mm / 18 1/2” 4
F 6,147mm / 242” 2
G 11,340mm / 446 1/2” 1
I 12,028mm / 473 1/2” 1
Plug
