3000 Series Retail Operators Manual 108796 Rev C, 07/05
Setting the Jumpers on the Pulse Output Board
The Pulse Output board is ordered as an option with the 3000 series. This board is where the field wires connect the 3rd
party Fleet System to the Pulse Output functions of the dispenser. This board also has jumpers that need to be set to deter-
mine the Pulse Rate and the Pulse Width. Whatever pulse rate is set will send the same pulse rate and width to both the
Fleet System and the Tank Gauge (if one is connected). This section describes how to set these jumpers. Refer to the Fig-
ures below:

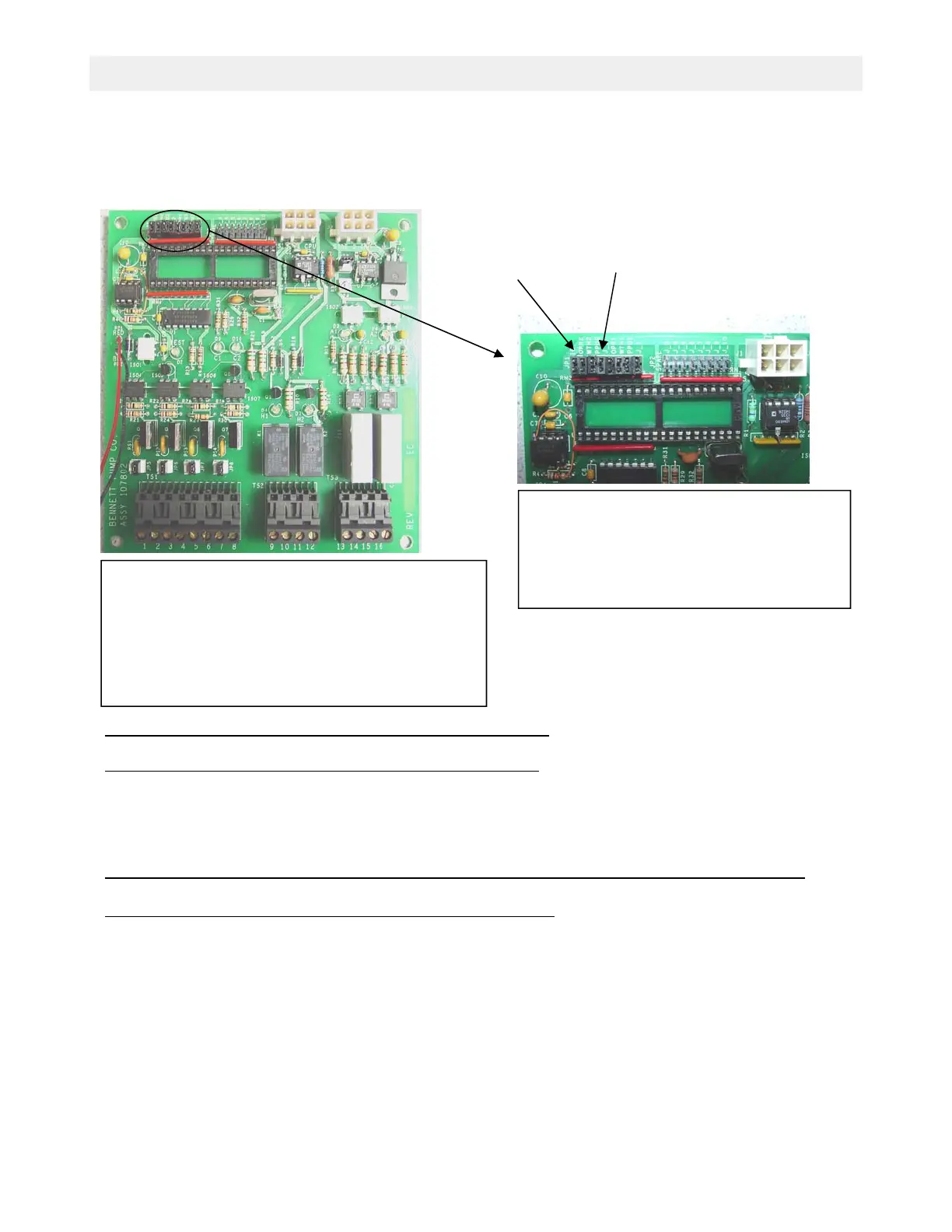

This is the Pulse Output Board. It has the terminal strips for
the field wire connections along the bottom of the board to
communicate with the Fleet System using a pump handle
output signal, an authorize input signal and a pulse output
signal. The Jumper Header JP1 is at the top left of the
board. These jumpers must be set to determine the pulse
rate and the pulse width. See information below.
The top left of the pulse output board has a jumper
header called JP1. It has 8 jumper positions. You
can set the pulse Rate with the first two jumpers
and the pulse Width with the 3rd, 4th and 5th. See
information below.
To set the Pulse Rate Output, set jumpers JP1-1 and JP1-2 as follows:
JP1-1 JP1-2 Pulses Per Gallon Pulses per Liter
OUT OUT 1000 100
IN OUT 100 10
OUT IN 10 1
IN IN 1 1/10TH
To set Pulse Width, set jumpers JP1-3, JP1-4, JP1-5 as follows (PULSE WIDTH’S ARE IN MILISECONDS):
JP1-3 JP1-4 JP1-5 Pulse Width Pulses Per Minute
OUT OUT OUT .5 ms 60000
IN OUT OUT 1 ms 30000
OUT IN OUT 2 ms 15000
IN IN OUT 4 ms 7500
OUT OUT IN 8 ms 3750
IN OUT IN 16 ms 1875
OUT IN IN 32 ms 9378
IN IN IN 64 ms 467
JP1-1,2,3,4,and 5 are used to set the pulse rate and pulse width.
