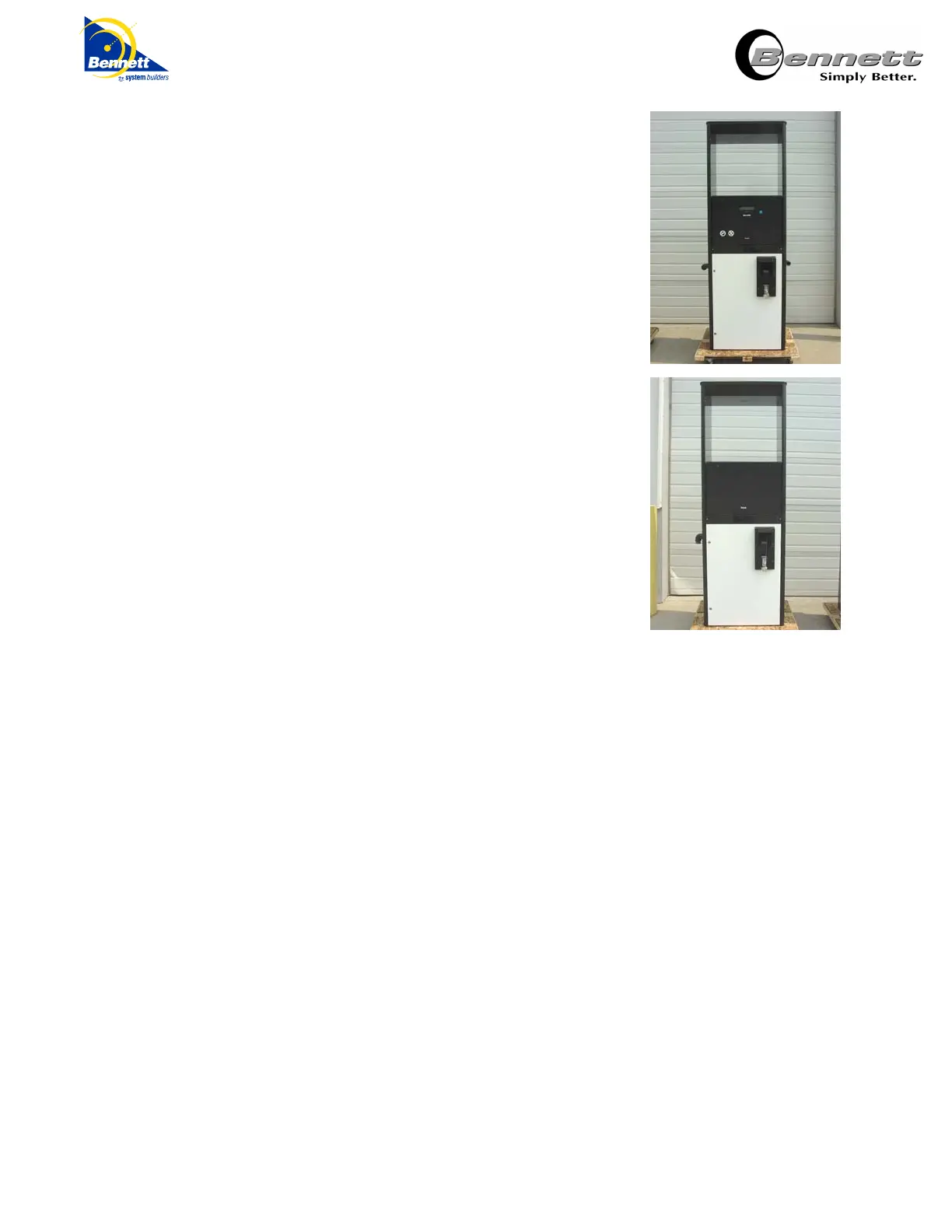

Big Squirt 3k Electronic Dispensers Specification Sheet
Commercial/Industrial volume display or Retail, money & volume display
Standard Features
•Simple electronic computer
•Stand-alone or Interfaced to Control Device
•Retail Version: RS485 interface or current
loop or dual pulse output
•Commercial/Industrial Version: RS485 inter-
face or dual pulse output
•Exclusive eCal
TM
(Electronic Calibration)
•Magnet activated totals display
•Programmable unit of measure for US gal-
lons, liters, or imperial gallons
•Operates from 115/230Vac, 60/50Hz, or 380
Vac, 50Hz
•Back lit LCD displays
•Satellite Outlet Connection
•Remote dispensers only
•Single Master, dual master, or master/
satellite combination
•Field configurable for single point or simulta-
neous master & satellite fueling
Construction
•Low Hose Cabinet Design or
•High Hose Cabinet Design
•Front or side mount nozzle boots
•Heavy duty lift-to-start nozzle boots
•Long-life cabinet construction using gal-
vaneal components and powder coated pan-
els
•Black end panels & top
•Black dial face covers
•Green lower doors (optional colors available)
•Hinged swing out lower door
•Hinged swing down upper door
•Heavy duty hose hook
Computer
•Simple single board design electronics.
Includes CPU, power, display, eCal, RS485
or current loop connection, electromechanical
analog totalizer, push-button programming
switches, wiring terminal strip
•LED Backlighting board for the LCD display
•Optical pulser
•Designed for temperature extremes—no
heaters or cooling fans required
•Long life, highly visible back lit LCD display,
1” (2.54cm) numerals for money & volume;
1/2” (1.27cm) numerals for price-per-volume
•Battery Backup for last sale recall during
power outage (required for resale of fuel)
•Simple 2-command protocol via RS485 inter-
face to fleet management systems supplies
pump status, pulses, volume sale and vol-
ume totals
•Current loop Bennett fuel protocol interface
for Retail Versions only
Computer (cont’d)
•Field wiring goes directly to terminal strip on
Computer (for new installations pull 72” of
wire above grade level)
•Transaction display of: 999.999 for gallons,
9999.99 for liters and 6-digits for money with
programmable decimal point
•Electronic hose totals of:
•99999999.999 for gallons (8.3)
•999999999.99 for liters (9.2)
•Built-in diagnostics with error codes
Hydraulics
•Rotary meter rated at 70gpm maximum
•Built-in inlet check valves to keep the hydrau-
lics full and prevent meter/pulser count-up
when the submersible pump pressurizes the
system
•1-1/2” 2-Stage prepay/preset electric sole-
noid valve
•Metal Y-strainer
•1-1/4” elbow hose outlet(s) with 1-1/4” x 1”
reducer bushing
•1-1/2” ground joint union inlet.
Options
•Programmable Dual Pulse Output Board to
interface to fleet management systems &
tank monitoring system if RS485 is not used
•2-Stage prepay/preset electric solenoid valve
for 1-product, 1-hose or 2-product, 2-hose
suction pumps. (valve is standard on all other
models)
•Subpump relay 3-phase contactor
•Intercom speaker for high hose models
•Explosion proof junction box for lower hy-
draulic area
•Brushed stainless steel lower doors
•Brushed stainless end panels
•Custom lower door colors and/or graphics
•Hoses, nozzles, swivels
•Satellite-in-use light
•Satellites (requires satellite board in master.
Order from service parts)
Units have been tested and found to
comply with the limits for a Class A
computing device in accordance with
Subpart J of Part 15 of FCC Rules re-
garding radio frequency interference.
Bennett Commercial Pump Company & Bennett Pump Company ~ 1218 E. Pontaluna Rd. ~ Spring Lake, Mi, USA 49456 ~
tel: 231-798-1310 ~ USA Bid & Spec Desk 800-235-7618 ~ fax: 231-799-6202 ~ sales@bennettpump.com ~ www.bennettpump.com ~
www.bennettusa.com
Big Squirt 3k Marketing Specs Rev 2—102604
For information on flow rates, motor
sizes, and model configurations see
our Model Configuration Chart &
Specification Sheet
UL
TM
listed
Certified for resale applications. The
N.T.E.P. Certificate of Conformance is
available upon request
Specifications in this document are
subject to change without notice.
